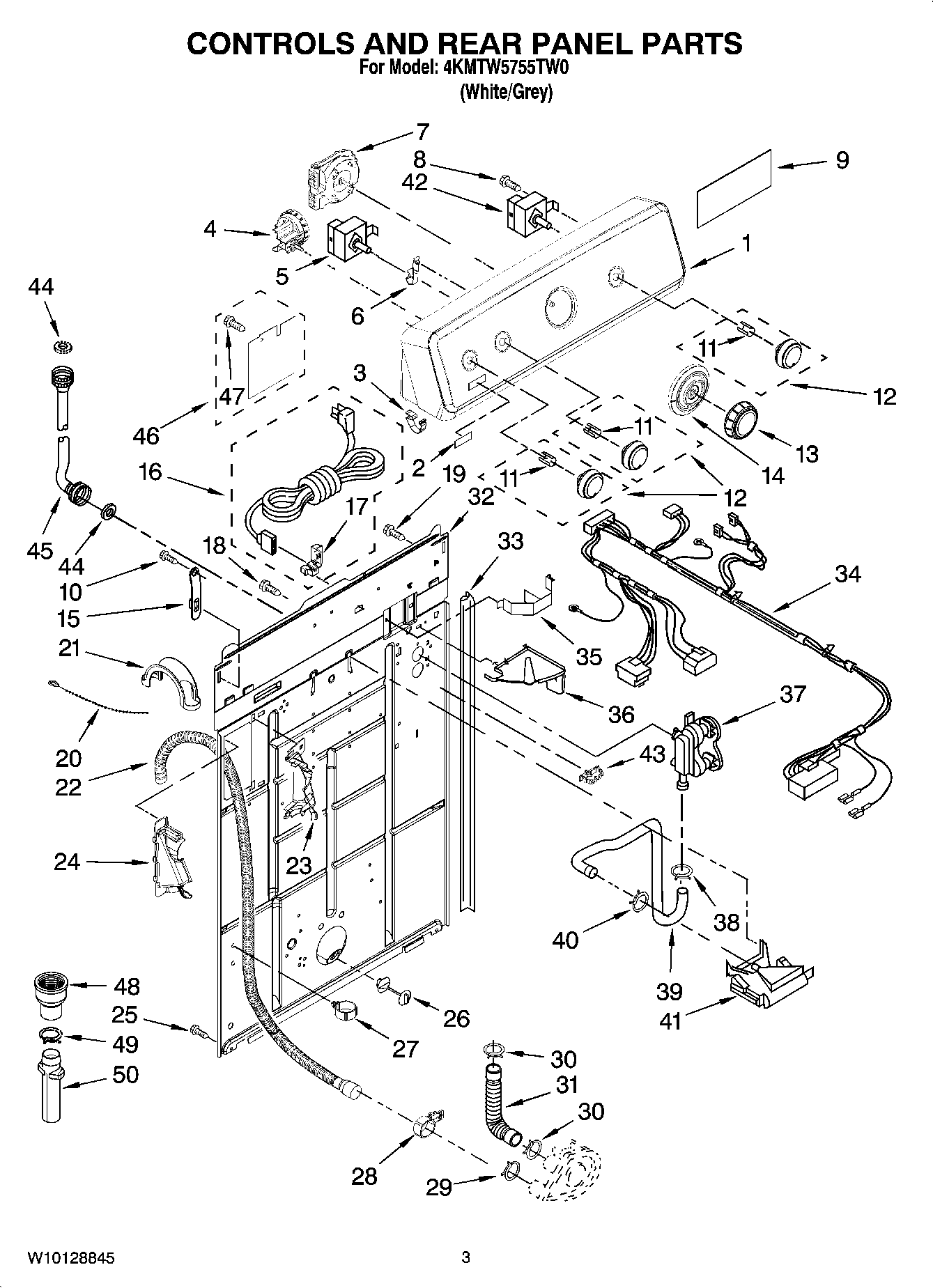

4KMTW5755TW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY W10115407
2	MAY W10112569
3	MAY 8312709
4	MAY 8577844
5	MAY 3950345
6	MAY 8317975
7	MAY W10117056
8	SCREW
9	MAY W10093725
10	SCREW,8-18 X 3/8
11	CLIP, SPRING
12	Knob, Control (4)
13	Knob, Timer (Washer)
14	Dial, (Washer)
15	Strap, Console
16	MAY W10111552
17	MAY 8559337
18	SCREW
19	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
20	MAY 3347868
21	U-Bend
22	Drain Hose Assembly (Includes Items 22, 28 & 32)
23	MAY 8541669
24	MAY 8541658
25	Screw, Mixing Valve Mounting
26	MAY 8519200
27	MAY 8541667
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY 8318015
33	MAY 62747
34	MAY W10121821
35	Clip, Harness & Pressure Switch
36	MAY 8539874
37	MAY 3360397
38	MAY 301958
39	MAY 8541607
40	MAY 370450
41	Thermister, Inlet
42	MAY 3949187
43	MAY 3352944
44	ACCESSORY PARTS, WASHER, INLET HOSE
45	Hose, Water Inlet (Hot Water)
45	Hose, Water Inlet (2) (Blue Coupler)
46	MAY W10093726
47	RETAINER, PUSH-IN
48	MAY 8577375
49	Clamp, Hose
50	MAY 3363920
