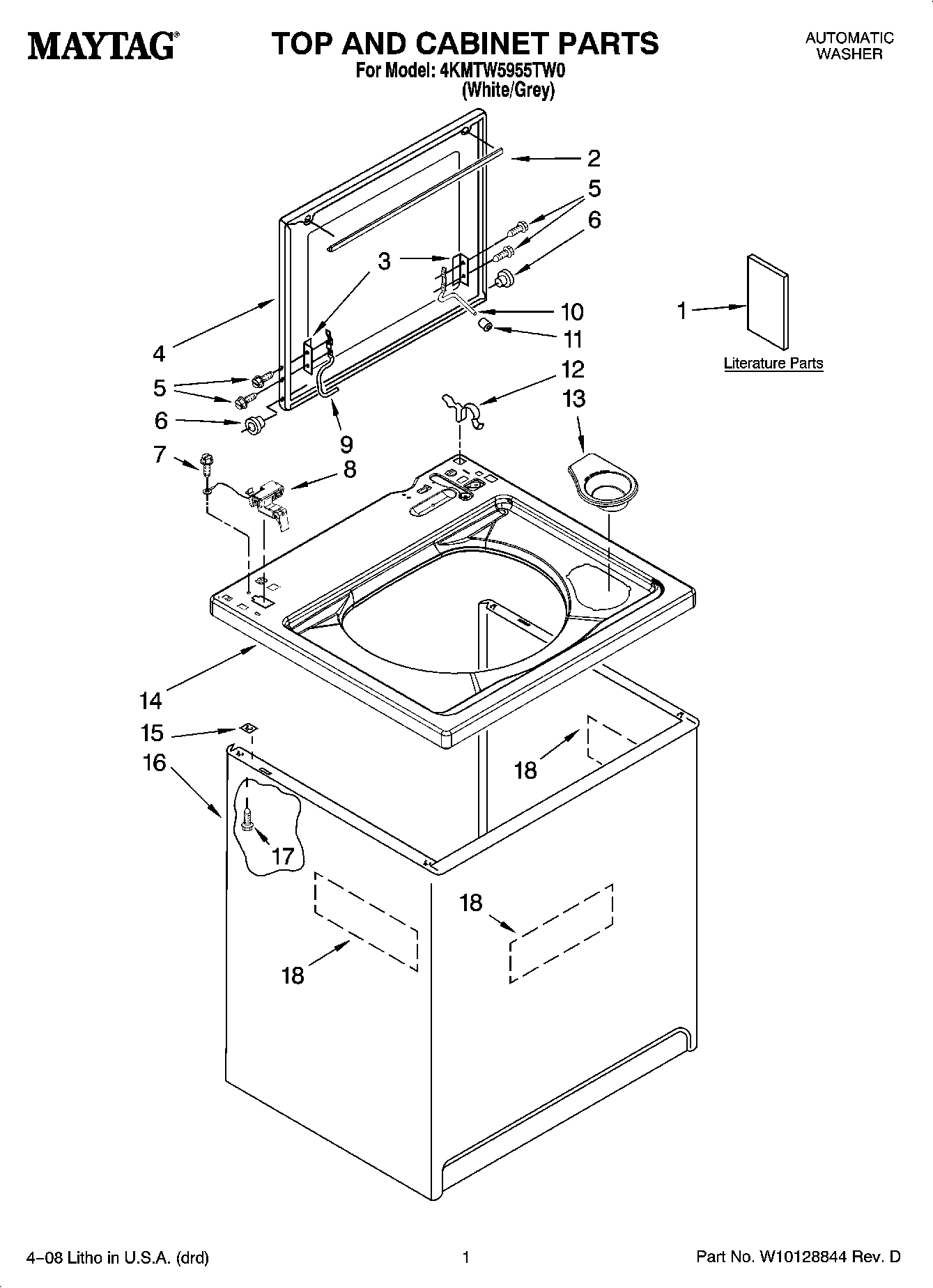

4KMTW5955TW0 01 – TOP AND CABINET PARTS

4KMTW5955TW0 01 – TOP AND CABINET PARTS

Written by

in

4KMTW5955TW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10117059
1MAY W10117897
1MAY W10117891
1MAY W10117896
1MAY W10117890
2MAY 8054939
3Pad, Lid Hinge
4MAY W10171569
5SCREW, LID HINGE
6MAY 8319539
7SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
8MAY 8318084
9MAY 8559336
10HINGE, LID (RIGHT HAND)
11MAY 19119
12MAY 62780
13MAY 8565967
14MAY 8543479
15MAY 62750
16Cabinet
17SCREW
18Absorber, Sound (Cabinet) (3)
