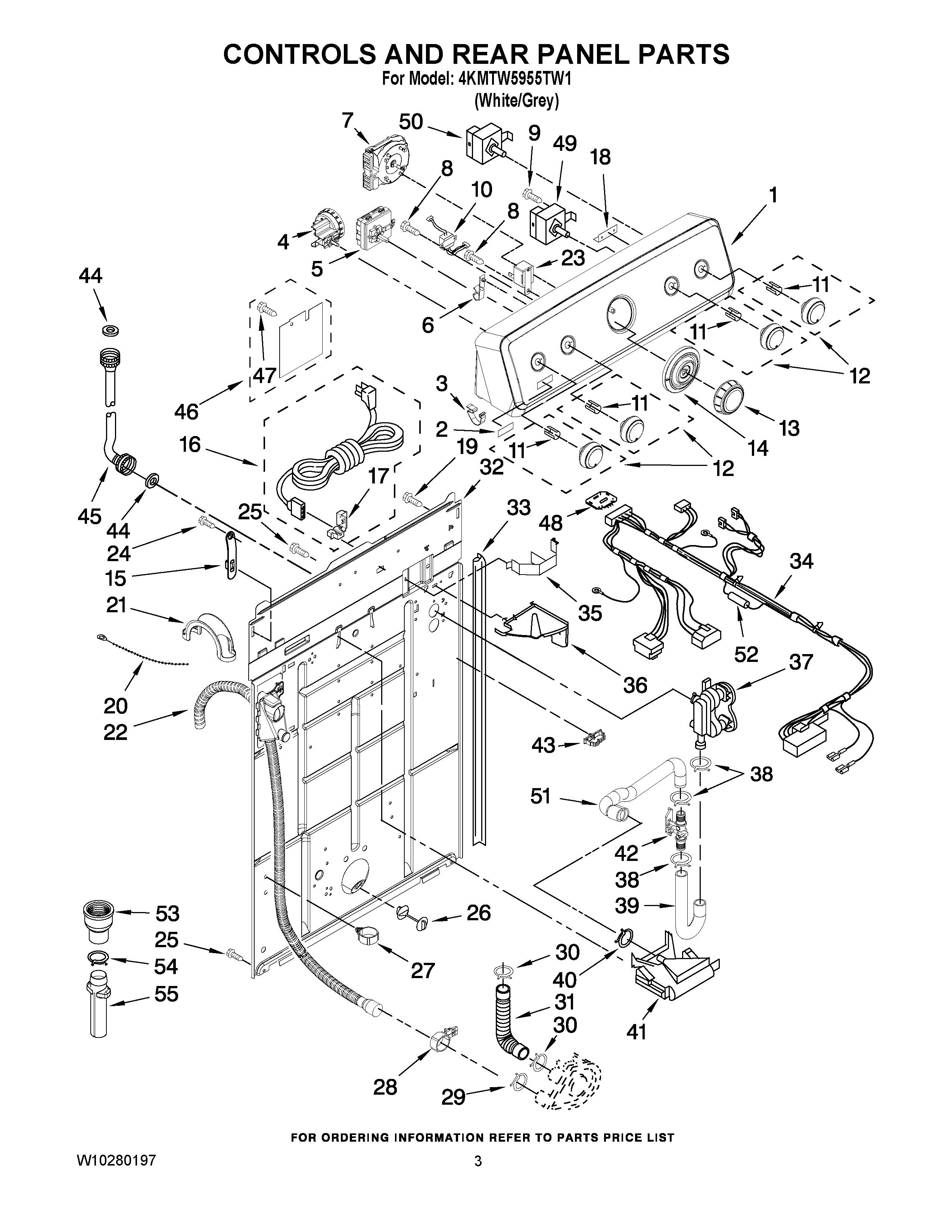

4KMTW5955TW1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY W10115408
2	Badge
3	MAY 8312709
4	MAY 8577842
5	Switch, Water Temperature (ATC)
6	MAY 8317975
7	MAY W10117058
8	SCREW,8-18 X 3/8
9	SCREW
10	MAY 3407160
11	CLIP, SPRING
12	Knob, Control (3)
13	Knob, Timer (Washer)
14	Dial, (Washer)
15	Strap, Console
16	MAY W10111552
17	MAY 8559337
18	MAY 8316039
19	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
20	MAY 3347868
21	U-Bend
22	MAY W10138068
23	MAY 3952439
24	SCREW
25	Screw, Mixing Valve Mounting
26	MAY 8519200
27	MAY 8541667
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY 8318015
33	MAY 62747
34	MAY W10121822
35	Clip, Harness & Pressure Switch
36	MAY 8539874
37	MAY 3360397
38	MAY 370451
39	MAY 3357319
40	MAY 371503
41	Thermister, Inlet
42	MAY 3352282
43	MAY 3352944
44	ACCESSORY PARTS, WASHER, HOSE
45	Hose, Water Inlet (Cold Water)
45	Hose, Water Inlet (Hot Water)
46	MAY W10093726
47	RETAINER, PUSH-IN
48	MAY W10110247
49	MAY 8280503
50	MAY 3950356
51	Hose, Sensor (Uppper)
52	MAY 8317387
53	MAY 8577375
54	Clamp, Hose
55	MAY 3363920
