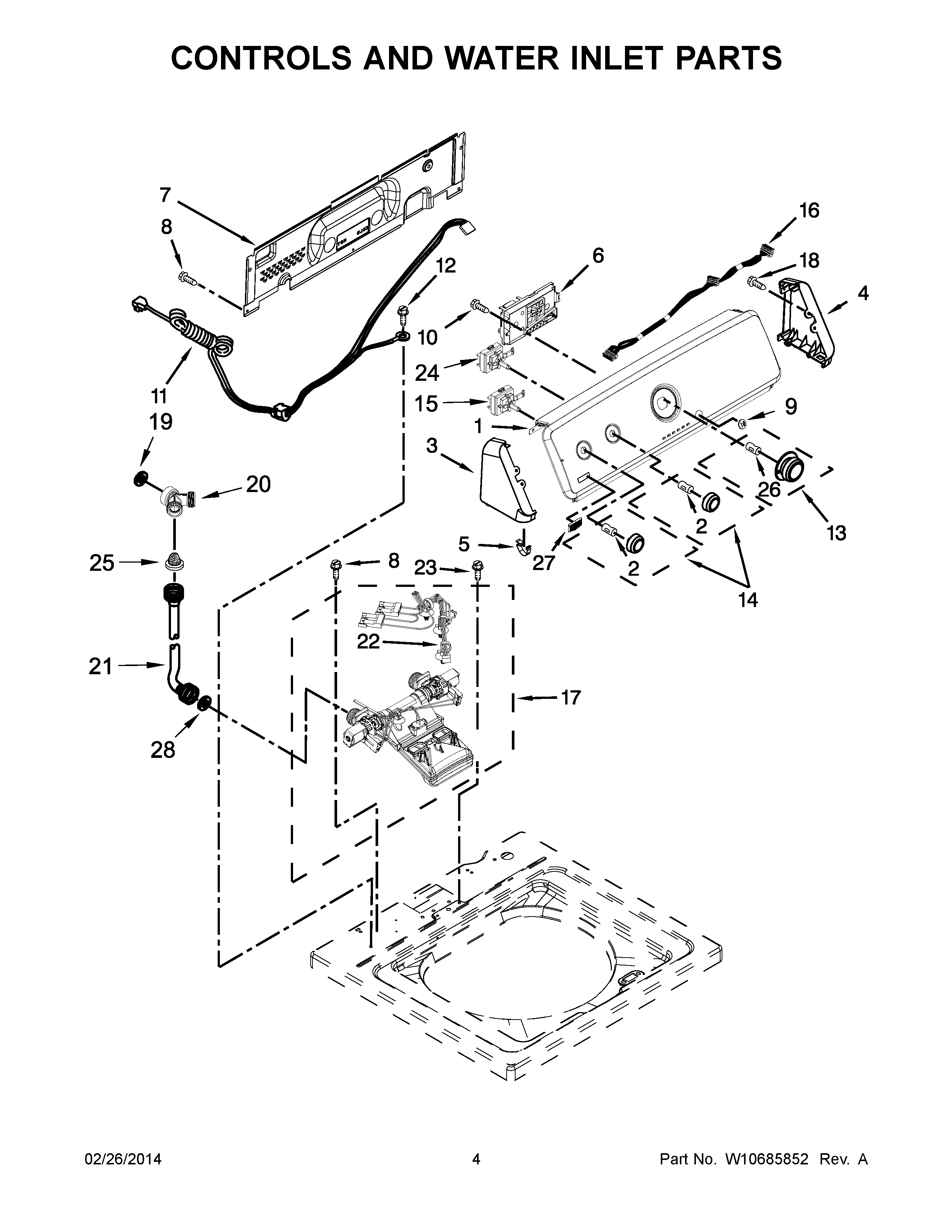

4KMVWC100BQ0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	10A CORD ADAPTER (TYPE B)
NI	LINER (NOT A SERVICEABLE PART)
NI	10A CORD ADAPTER (EUROPEAN)
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD LOCK
1	MAY W10449051
2	CLIP, SPRING
3	Endcap (L.H.)
4	Endcap (R.H.)
5	MAY 8312709
6	MAY W10591668
7	MAY W10461159
8	MAY 1157158
9	MAY W10251309
10	SCREW,8-18 X 3/8
11	MAY W10422755
12	Screw, 10-32 x 5/8
13	ASSEMBLY, KNOB & DIAL (GREY)
14	ASSEMBLY, CONTROL KNOB (GREY)
15	SWITCH, ROTARY ENCODER
16	MAY W10291177
17	MAY W10486030
18	MAY 359625
19	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
20	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
21	MAY W10194210
21	MAY W10194211
22	MAY W10423127
23	Screw
24	SWITCH, ROTARY ENCODER
25	MAY 353362
26	Spring, Clip Knob
27	MAY W10323734
28	ACCESSORY PARTS, WASHER, HOSE
