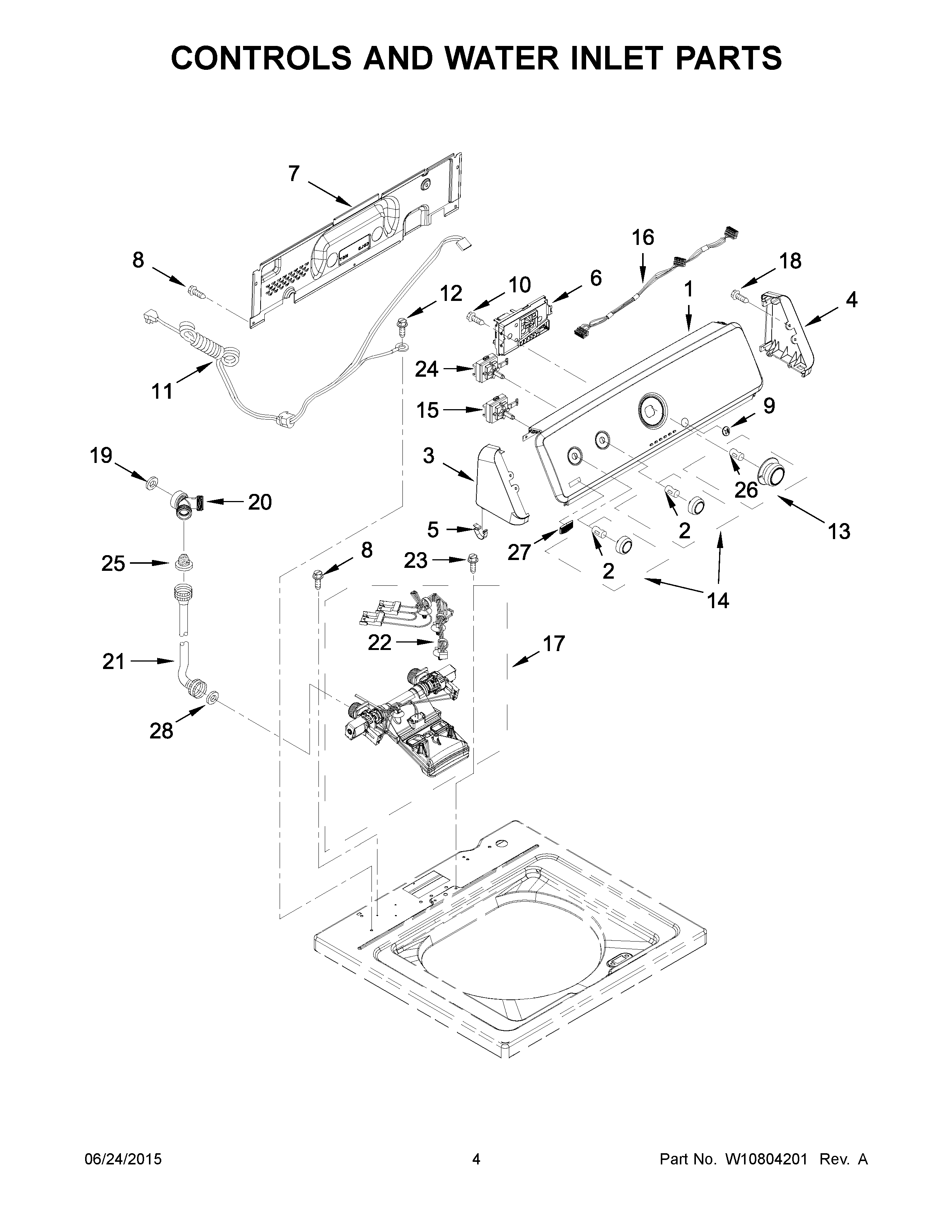

4KMVWC130EQ0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	10A CORD ADAPTER (EUROPEAN)
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD ADAPTER (TYPE B)
NI	10A CORD LOCK
1	MAY W10736638
2	CLIP, SPRING
3	Endcap (L.H.)
4	Endcap (R.H.)
5	MAY 8312709
6	MAY W10758694
7	MAY W10461159
8	MAY W10213953
9	MAY W10251309
10	SCREW,8-18 X 3/8
11	MAY W10422755
12	Screw, 10-32 x 5/8
13	ASSEMBLY, KNOB & DIAL (GREY)
14	ASSEMBLY, CONTROL KNOB (GREY)
15	SWITCH, ROTARY ENCODER
16	MAY W10291177
17	MAY W10683676
18	MAY 359625
19	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
20	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
21	MAY W10194210
21A	MAY W10194211
22	MAY W10684972
23	Screw
24	MAY W10285511
25	MAY 353362A
26	Spring, Clip Knob
27	MAY W10323734
28	ACCESSORY PARTS, WASHER, HOSE
