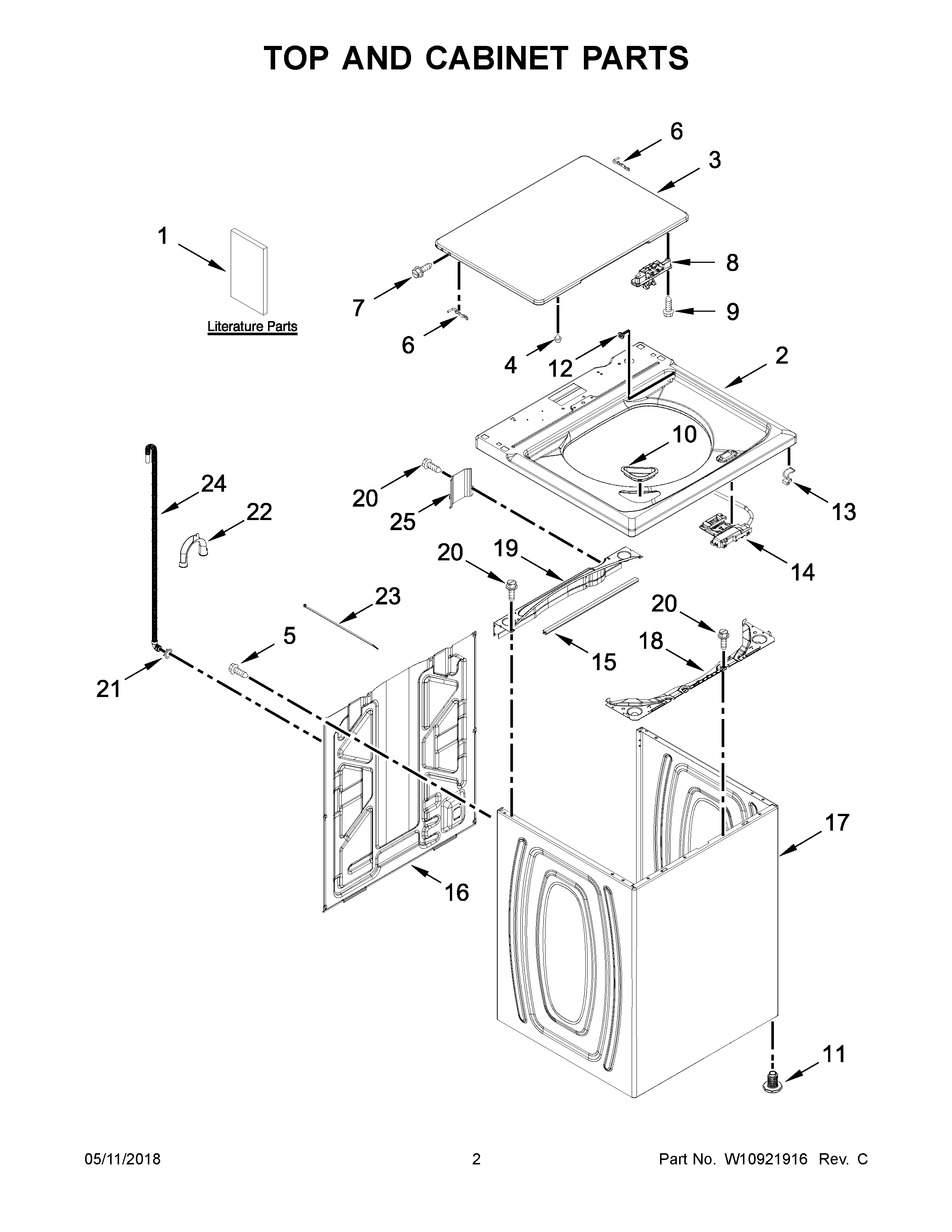

4KMVWC215FW0 02 – TOP AND CABINET PARTS

4KMVWC215FW0 02 – TOP AND CABINET PARTS

Written by

in

4KMVWC215FW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CQUICK START GUIDE
1BOWNERS MANUAL
1AINSTALLATION INSTRUCTIONS
1TECH SHEET
2MAY W10686433
3LID & BUMPER ASSEMBLY (WHITE)
4MAY 9724509
5SCREW
6HINGE, LID
7Screw And Washer
8MAY W10714899
9SCREW
10MAY W10192089
11FOOT ASSEMBLY, LEVELING
12Hinge, Bearing (2)
13Clip, Wire (4)
14LATCH, LID LOCK ASSEMBLY
15BRACE-GUARD, CABINET REAR TOP
16PANEL, REAR
17MAY W10478060
18CHANNEL, TOP FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20SCREW
21MAY 356138
22MAY W10280024
23TIE, CABLE
24HOSE, OUTER DRAIN ASSEMBLY
25MAY W10676061
