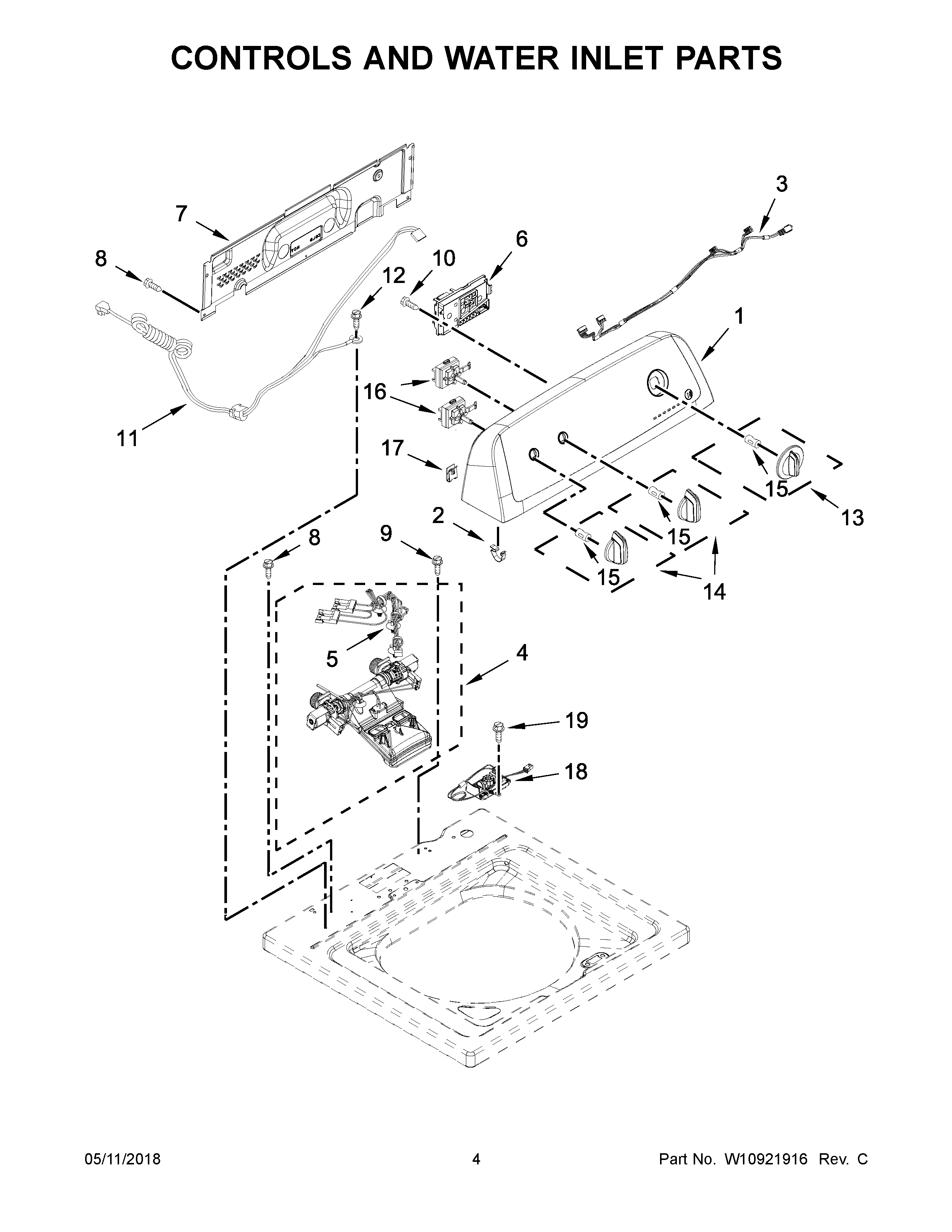

4KMVWC215FW0 03 – CONTROLS AND WATER INLET PARTS

4KMVWC215FW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

4KMVWC215FW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NI10A CORD LOCK
NI10A CORD ADAPTER (BRITISH)
NILINER (NOT A SERVICEABLE PART)
1PANEL, CONSOLE
2MAY 8312709
3MAY W10694679
4INLET ASSEMBLY, WATER
5HARNESS, VALVE
6MAY W11099822
7MAY W10409320
8SCREW
9MAY W10213953
10Screw, 10-32 x 5/8
11CORD, UNIVERSAL POWER
12SCREW
13MAY W10711289
14MAY W10453947
15CLIP, SPRING
16MAY W10414397
17NUT, "U"
18LINE FILTER ASSY
19MAY W10567155
