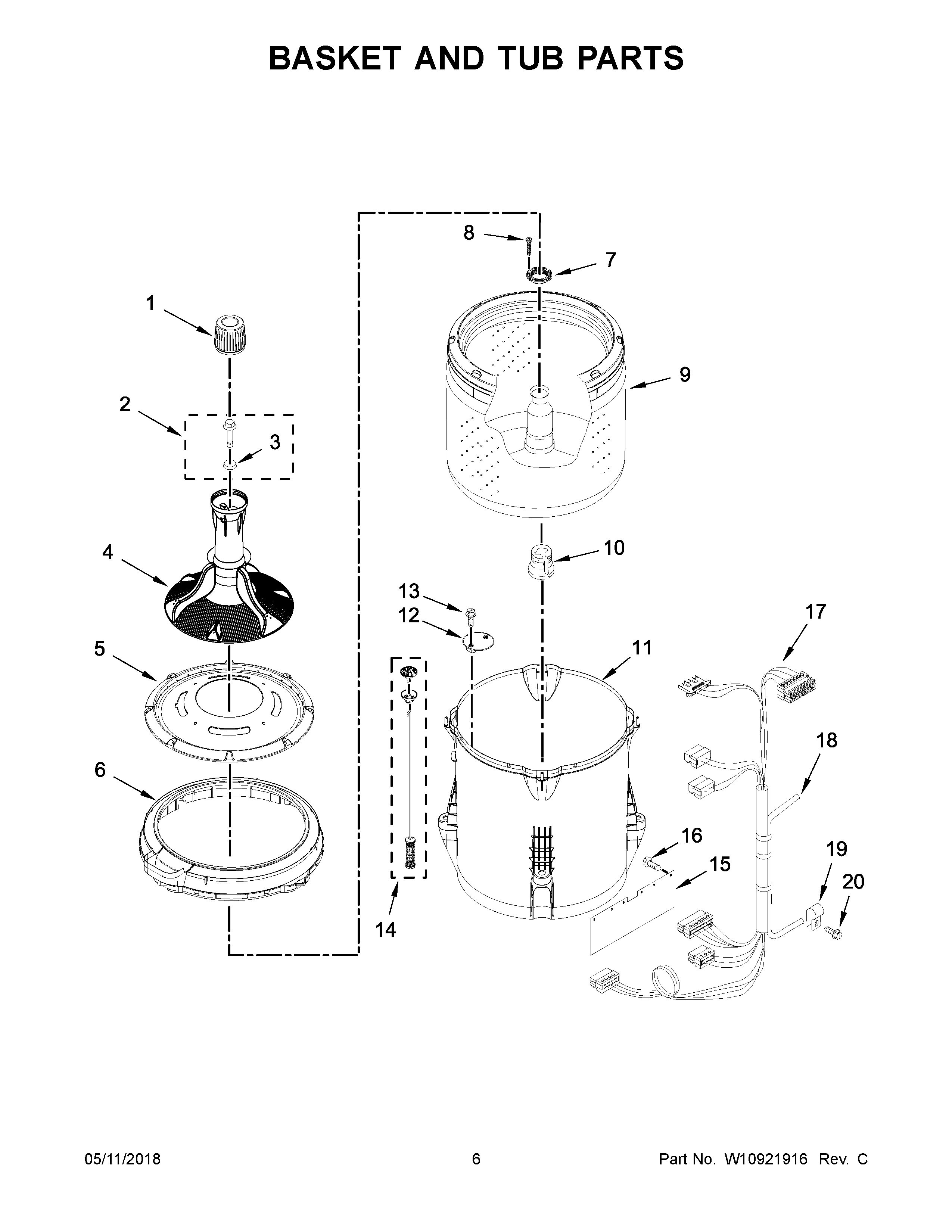

4KMVWC215FW0 04 – BASKET AND TUB PARTS

4KMVWC215FW0 04 – BASKET AND TUB PARTS

Written by

in

4KMVWC215FW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1DISPENSER, FABRIC SOFTENER
2SCREW & WASHER
3MAY 3949550
4AGITATOR
5MAY W10723583
6MAY W10531289
7MAY 21366
8MAY W10567155
9MAY W10584118
10Block, Drive
11TUB (INCLUDES TUB SEAL)
12MAY W10215093
13Screw
14MAY W10821951
15MAY W10339098
16MAY W10429200
17HARNESS, LOWER
18MAY 8572540
19CLAMP, CABLE
20SCREW
