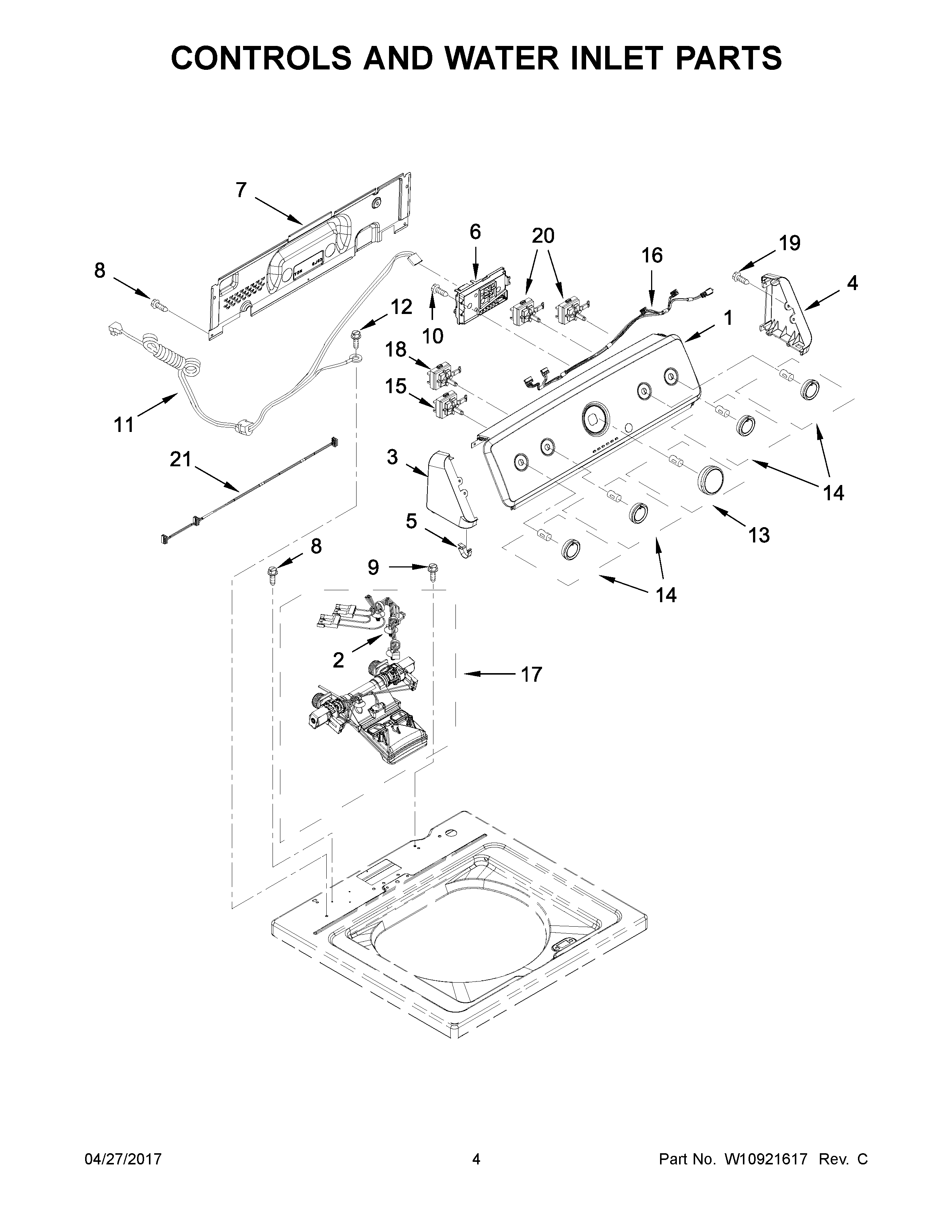

4KMVWC315FW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	10A CORD LOCK
NI	10A CORD ADAPTER (TYPE B)
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD ADAPTER (EUROPEAN)
1	PANEL, CONSOLE
2	HARNESS, VALVE
3	END CAP (LEFT) (WHITE)
4	END CAP (RIGHT) (WHITE)
5	MAY 8312709
6	MAY W11085117
7	MAY W10461159
8	MAY 1157158
9	MAY W10213953
10	SCREW,8-18 X 3/8
11	POWER CORD, UNIVERSAL
12	Screw, 10-32 x 5/8
13	MAY W10558463
14	MAY W10562155
15	SWITCH, ROTARY ENCODER
16	HARNESS, UPPER
17	INLET ASSEMBLY, WATER
18	SWITCH, ROTARY ENCODER
19	MAY 359625
20	MAY W10285511
21	MAY W10694682
