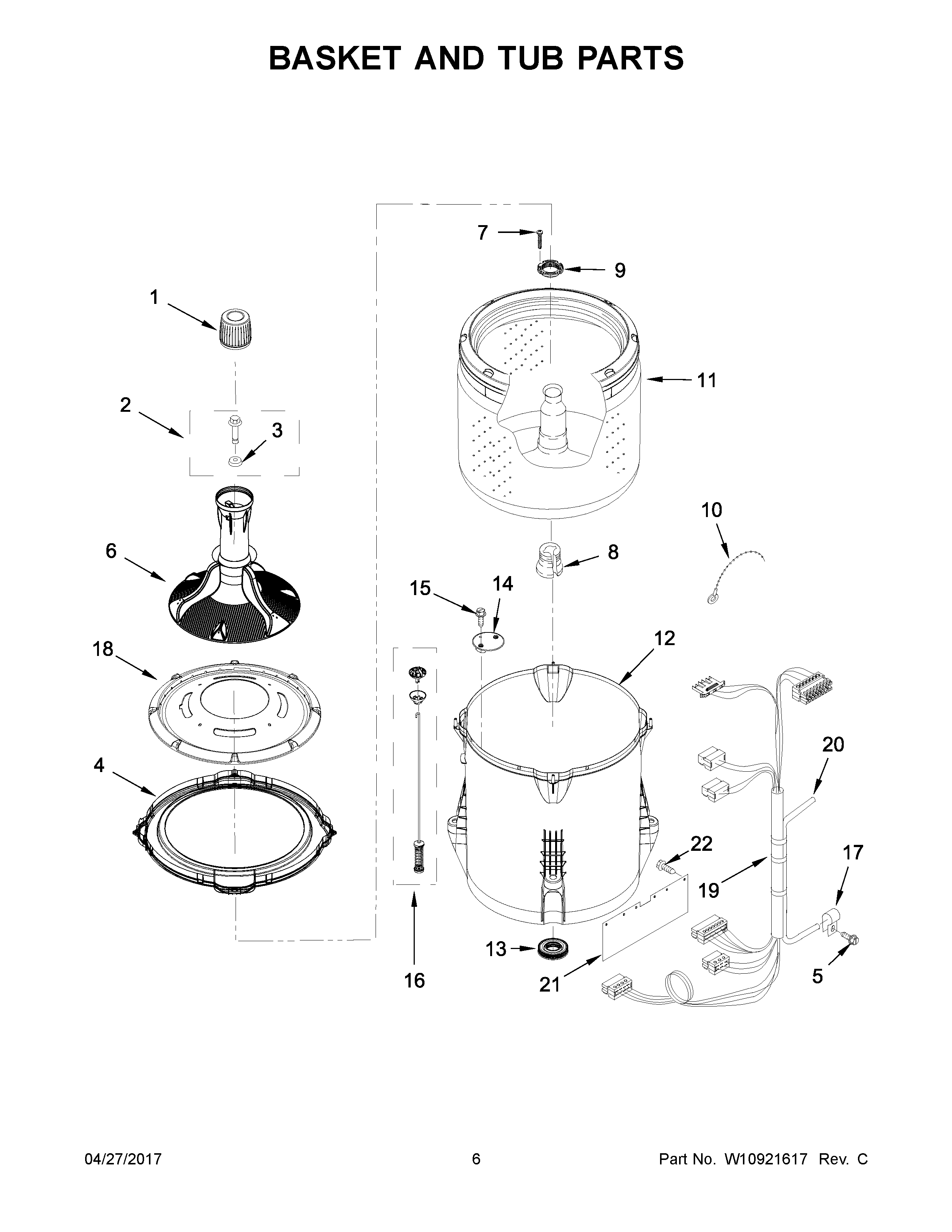

4KMVWC315FW0 04 – BASKET AND TUB PARTS

4KMVWC315FW0 04 – BASKET AND TUB PARTS

Written by

in

4KMVWC315FW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1DISPENSER, FABRIC SOFTENER
2SCREW & WASHER
3MAY 3949550
4MAY W10531289
5SCREW
6AGITATOR
7SCREW
8Block, Drive
9MAY 21366
10MAY W10339680
11MAY W10554251
12TUB (INCLUDES TUB SEAL)
13MAY W10006371
14MAY W10215093
15Screw
16MAY W10821951
17CLAMP, CABLE
18MAY W10723583
19MAY W10746352
20MAY 8572540
21MAY W10339098
22MAY W10429200
