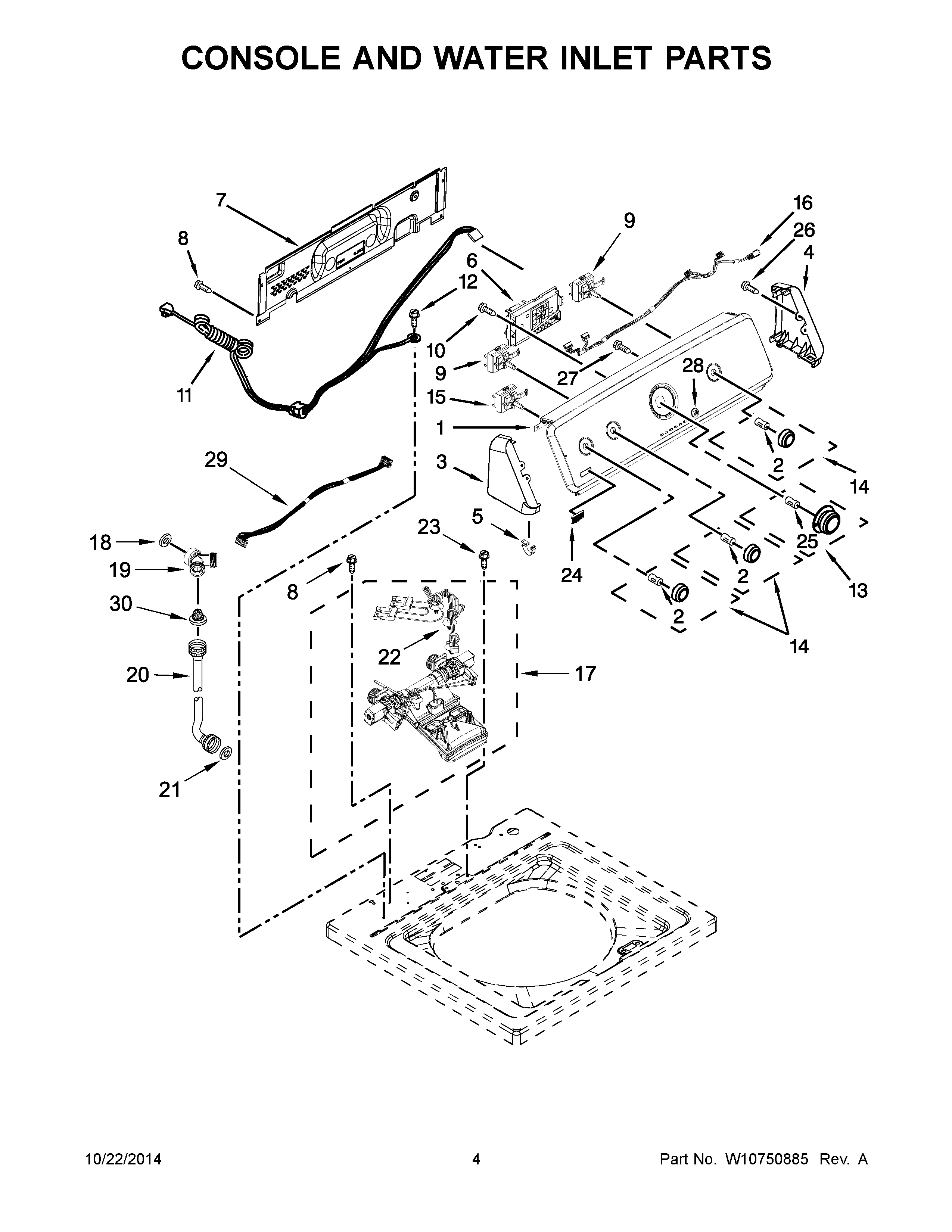

4KMVWC330DW0 03 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NI10A CORD ADAPTER (EUROPEAN)
NI10A CORD ADAPTER (BRITISH)
NI10A CORD ADAPTER (TYPE B)
NI10A CORD LOCK
1MAY W10725840
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W10729886
7MAY W10461159
8MAY W10213953
9SWITCH, ROTARY ENCODER
10SCREW,8-18 X 3/8
11MAY W10422755
12Screw, 10-32 x 5/8
13ASSEMBLY, KNOB & DIAL (GREY)
14ASSEMBLY, CONTROL KNOB (GREY)
15MAY W10285511
16MAY W10291177
17MAY W10683676
18ACCESSORY PARTS, WASHER, HOSE
19AMAY W10194211
19MAY W10194210
20MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
21MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
22MAY W10684972
23Screw
24MAY W10323734
25Spring, Clip Knob
26MAY 359625
27SCREW
28MAY W10251309
29MAY W10291184
30MAY 353362
