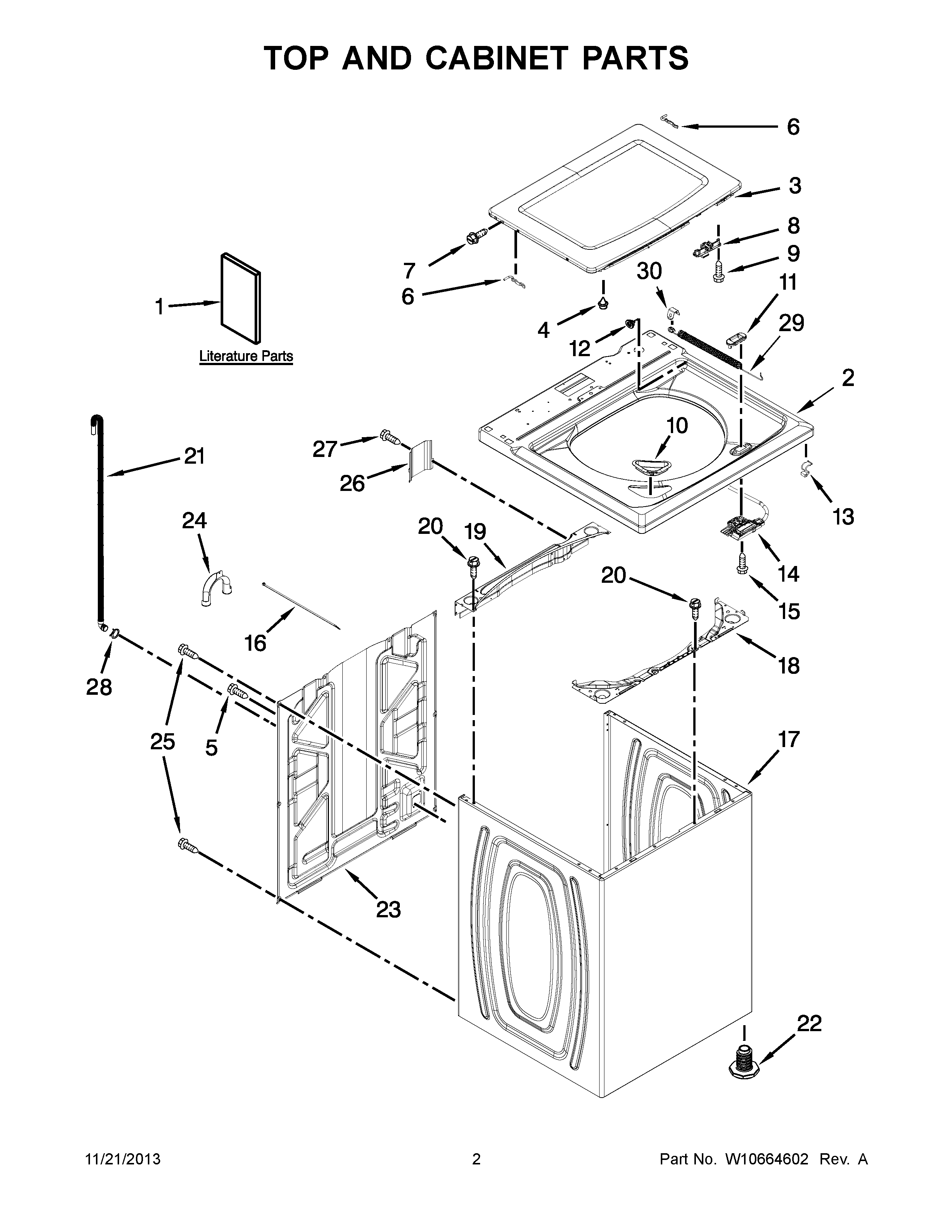

4KMVWC405BW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10589597
1	MAY W10547679
1	MAY W10589601
2	TOP (WHITE)
3	LID AND BUMPER ASSEMBLY (WHITE)
4	MAY 9724509
5	SCREW
6	HINGE, LID (RIGHT)
6	HINGE, LID
7	Screw And Washer
8	MAY W10240513
9	SCREW
10	MAY W10192089
11	MAY W10392041
12	MAY 8319539
13	Clip, Wire (4)
14	LOCK, LID
15	Screw
16	TIE, CABLE
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	HOSE, OUTER DRAIN ASSEMBLY
22	MAY W10397994
23	PANEL, REAR
24	MAY W10280024
25	SCREW
26	MAY W10215139
27	Screw, 10-32 x 5/8
28	MAY 356138
29	SPRING ASSEMBLY
30	Clip
