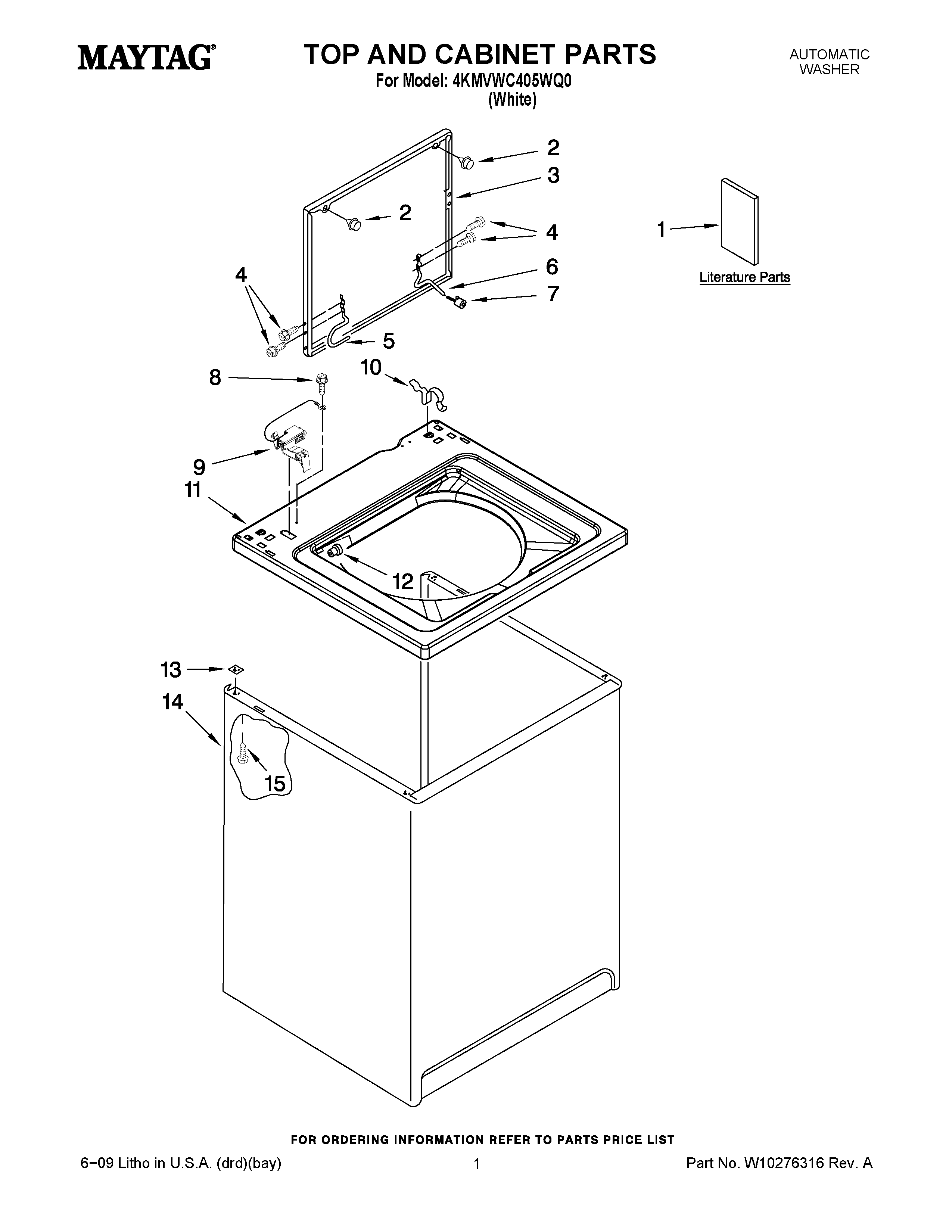

4KMVWC405WQ0 01 – TOP AND CABINET PARTS

Written by

Products

Position	Product
1	MAY W10096950
1	MAY W10110461
1	MAY W10117890
1	MAY W10117891
2	MAY 9724509
3	MAY 8541774
4	SCREW, LID HINGE
5	MAY W10225135
6	HINGE, LID (RIGHT HAND)
7	MAY 19119
8	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
9	MAY 8318084
10	MAY 62780
11	MAY 8559484
12	Hinge, Bearing (2)
13	MAY 62750
14	Cabinet
15	SCREW
