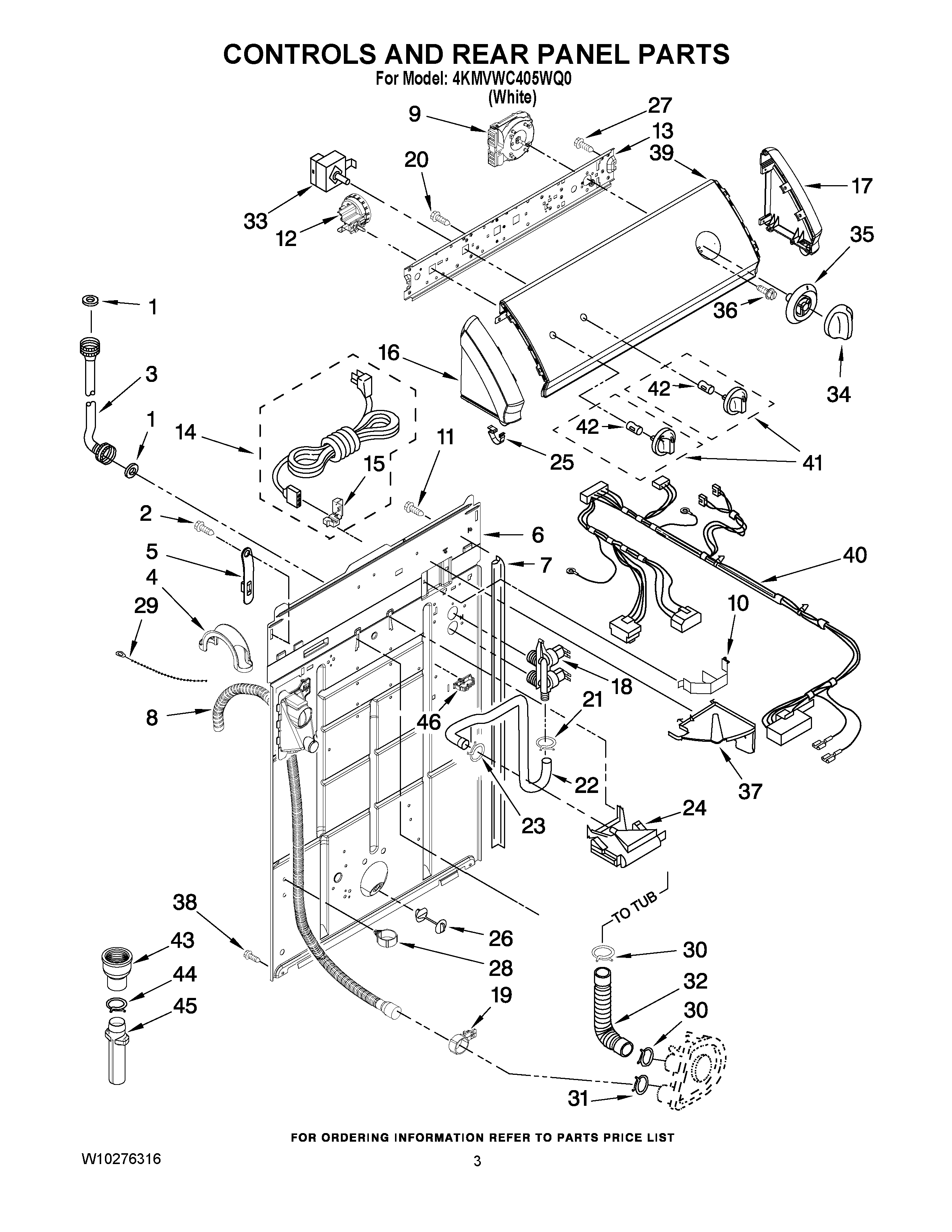

4KMVWC405WQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, HOSE
2	SCREW
3	Hose, Water Inlet (Hot Water)
3	Hose, Water Inlet (Cold Water)
4	U-Bend
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	MAY W10138068
9	MAY W10110460
10	Clip, Harness & Pressure Switch
11	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
12	MAY 8577845
13	MAY 8559504
14	MAY W10111552
15	MAY 8559337
16	ENDCAP ASSEMBLY, LEFT HAND (WHITE)
17	ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
18	MAY 3952165
19	MAY 8541668
20	SCREW
21	MAY 301958
22	MAY 8541607
23	MAY 370450
24	Thermister, Inlet
25	MAY 8312709
26	MAY 8519200
27	SCREW,8-18 X 3/8
28	MAY 8541667
29	MAY 3347868
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY 3949179
34	MAY 3956786
35	MAY 8559524
36	SCREW
37	MAY 8539874
38	Screw, Mixing Valve Mounting
39	MAY W10115461
40	MAY W10266775
41	MAY 3956788
42	CLIP, SPRING
43	MAY 8577375
44	Clamp, Hose
45	MAY 3363920
46	MAY 3352944
