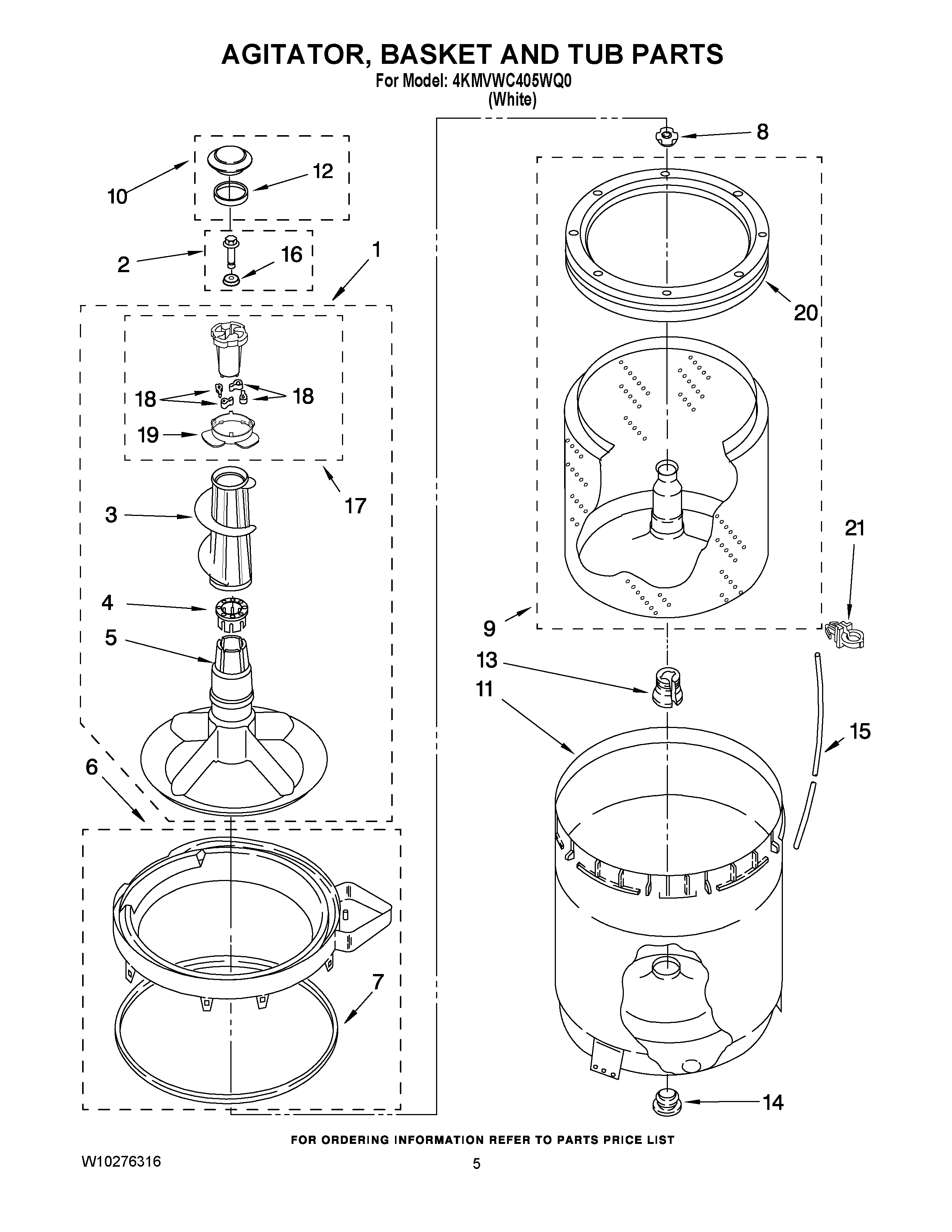

4KMVWC405WQ0 03 – AGITATOR, BASKET AND TUB PARTS

4KMVWC405WQ0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

4KMVWC405WQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 3347674
2	Screw & Washer
3	Auger, Agitator
4	SPACER, THRUST
5	MAY 389386
6	Tub Ring
7	MAY 3976308
8	MAY 21366
9	MAY 8526017
10	MAY 63973
11	MAY W10135425
12	MAY 358912
13	Block, Drive
14	MAY 383727
15	MAY 3347780
16	MAY 3949550
17	Cam, Driven
18	Dog, Agitator (4)
19	BEARING, CAM
20	Ring, Balance
21	Clip, Harness (1)
