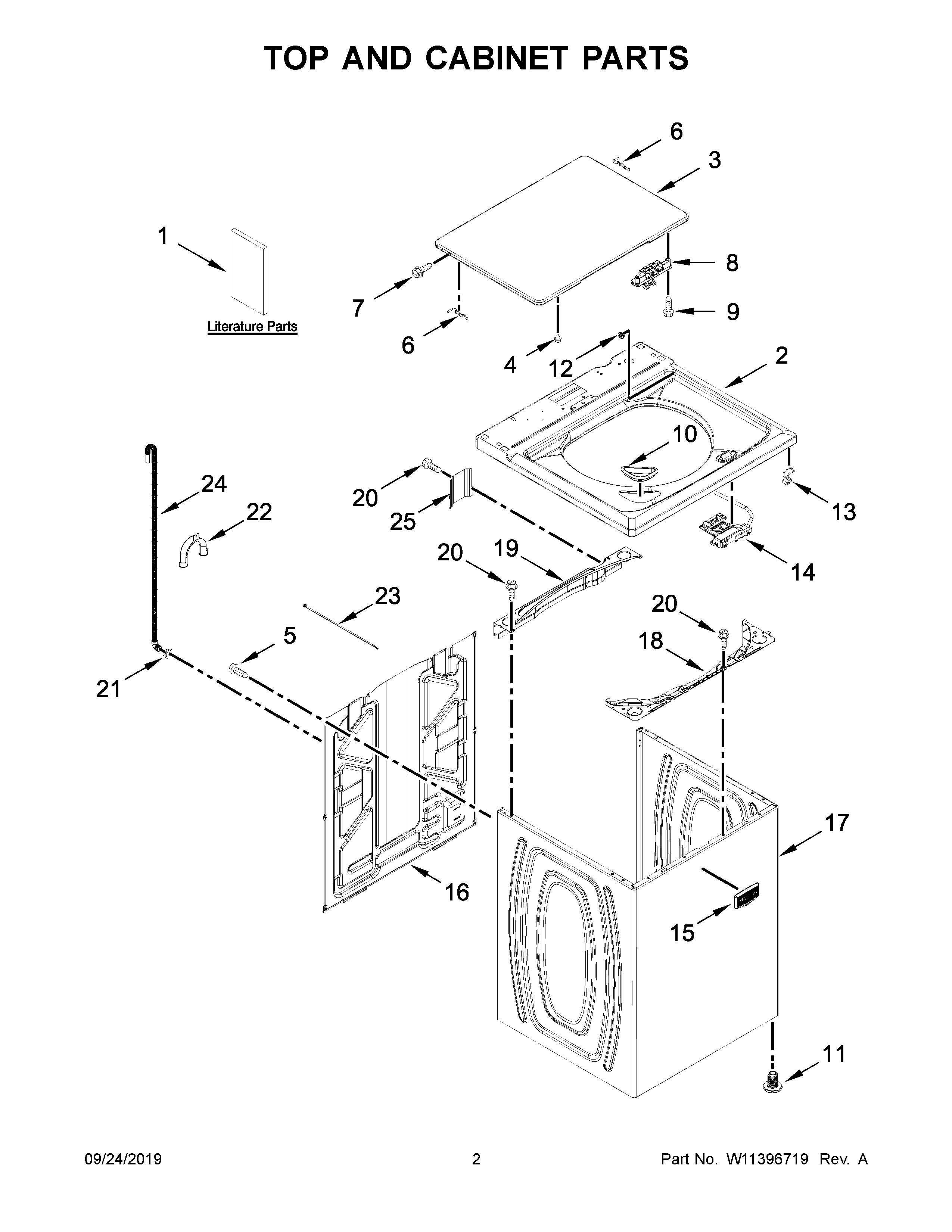

4KMVWC410JW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CMAY W11398520
1BMAY W11372865
1AMAY W11372860
1MAY W11371740
2TOP (WHITE)
3ASSEMBLY, LID (WHITE)
4MAY 9724509
5SCREW
6AHINGE, LID (RIGHT HAND)
6HINGE, LID
7Screw And Washer
8MAY W10714899
9SCREW
10MAY W10192089
11FOOT ASSEMBLY, LEVELING
12Hinge, Bearing (2)
13Clip, Wire (4)
14MAY W11390347
15BADGE
16PANEL, REAR
17MAY W10478060
18CHANNEL, TOP FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20SCREW
21MAY 356138
22MAY W10280024
23TIE, CABLE
24HOSE, OUTER DRAIN ASSEMBLY
25MAY W10676061
