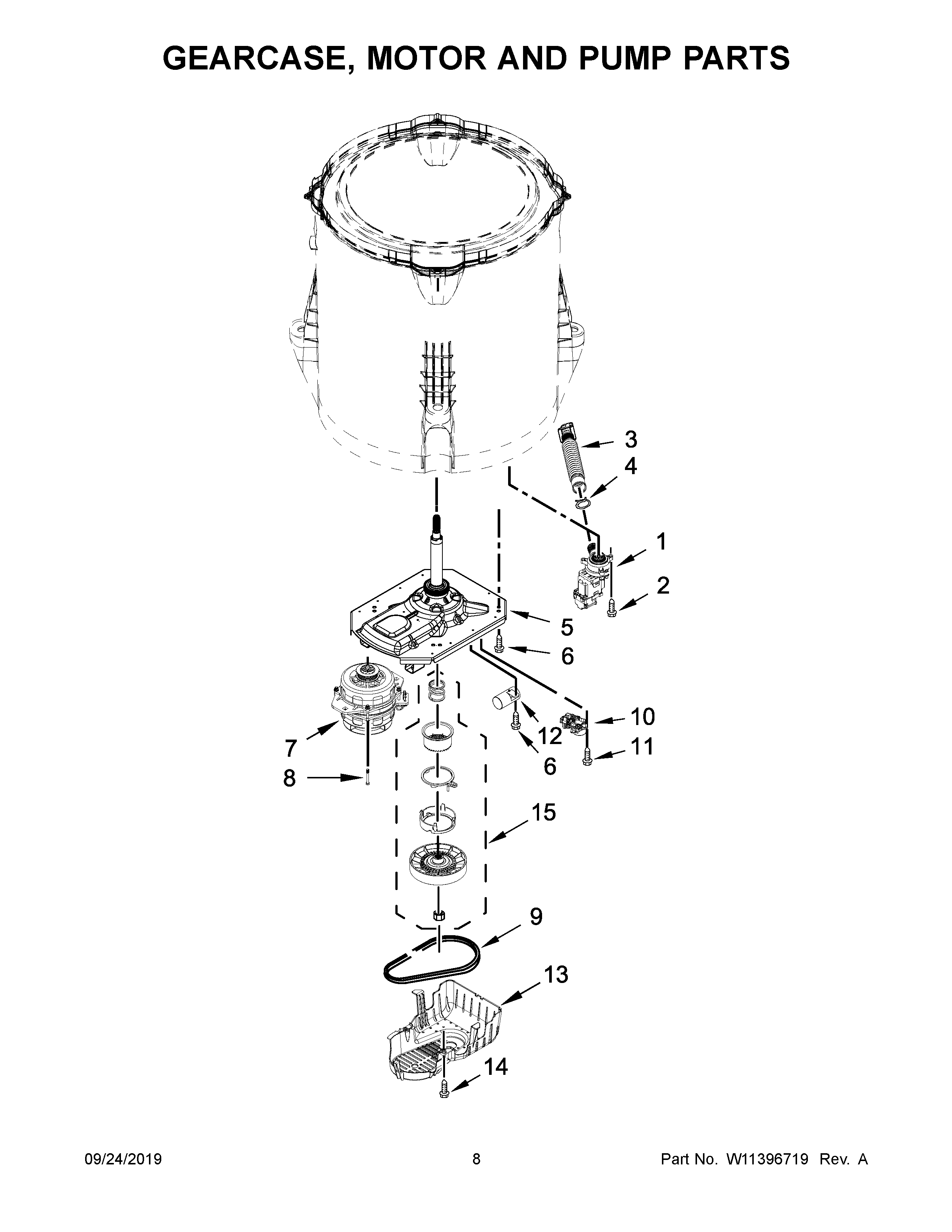

4KMVWC410JW0 05 – GEARCASE, MOTOR AND PUMP PARTS

4KMVWC410JW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

4KMVWC410JW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY W10297344
2	SCREW
3	MAY W10763078
4	MAY 8317496
5	MAY W10903968
6	SCREW
7	MAY W11028436
8	BOLT, COUNTERWEIGHT
9	BELT, DRIVE
10	ACTUATOR, SHIFT
11	SCREW
12	CAPACITOR, MOTOR RUN
13	SHIELD, PULLEY COVER
14	SCREW
15	MAY W10721967
