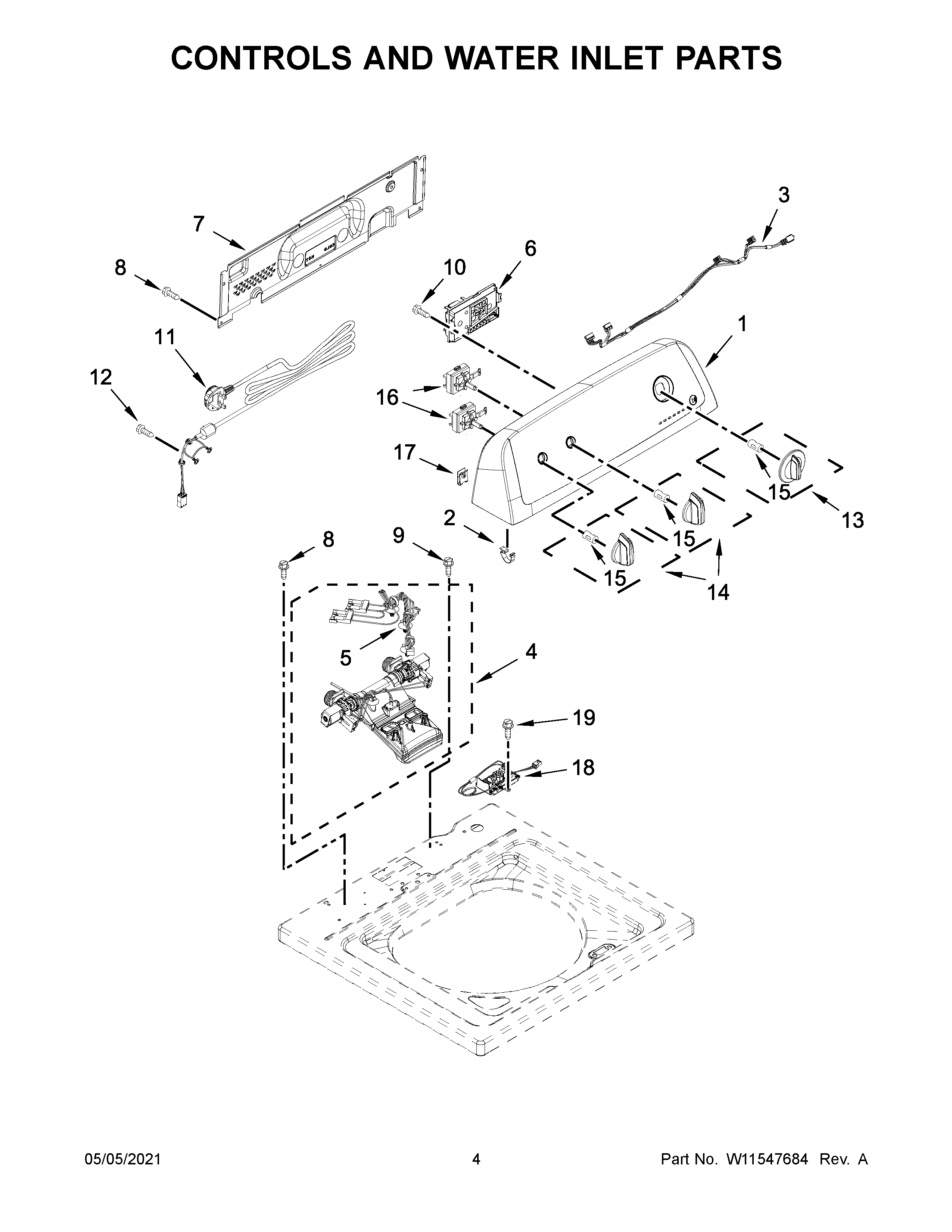

4KMVWC410JW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2WP8312709 Whirlpool Endcap Clip
3W11256701 Whirlpool Wire Harness
4W11038628 Whirlpool Valve Assembly
5HARNESS, VALVE
6W11399616 Whirlpool Electronic Control Board + Core
7W10409320 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10213953 Whirlpool Screw
10W10846509 Whirlpool Screw
11CORD, POWER (BRITISH)
12WPW10109200 Whirlpool Screw
13WPW10711289 Whirlpool Washer Control Knob Dryer
14WPW10453947 Whirlpool Knob
15WP8536939 Whirlpool Spring Clip
16WPW10414397 Whirlpool Cycle Switch
17W11213336 Whirlpool Nut
18LINE FILTER ASSY
19W11568617 Whirlpool Screw
