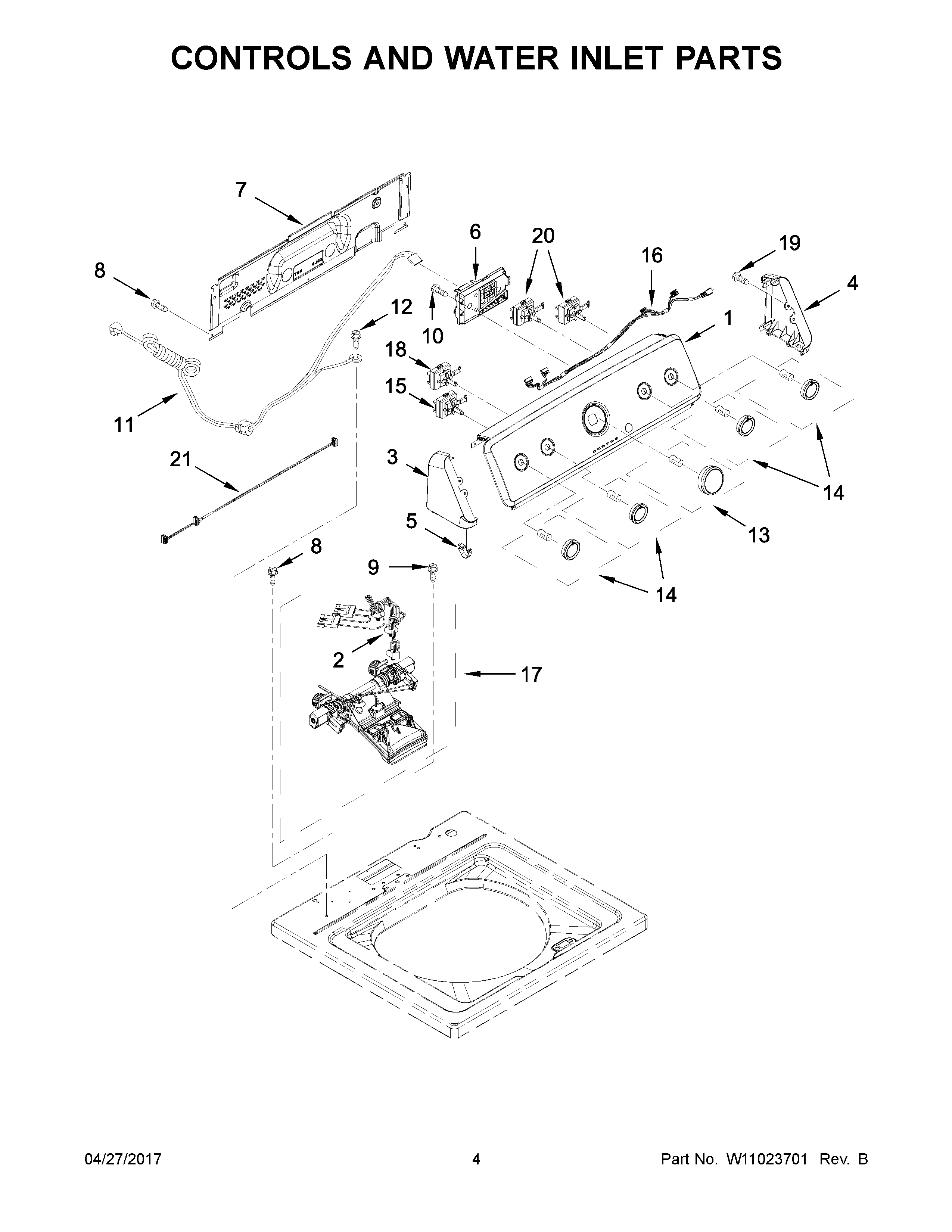

4KMVWC415FW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NI10A CORD ADAPTER (EUROPEAN)
NI10A CORD ADAPTER (BRITISH)
NI10A CORD ADAPTER (TYPE B)
NI10A CORD LOCK
1PANEL, CONSOLE
2HARNESS, VALVE
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5MAY 8312709
6MAY W11084952
7MAY W10461159
8MAY 1157158
9MAY W10213953
10SCREW,8-18 X 3/8
11POWER CORD, UNIVERSAL
12Screw, 10-32 x 5/8
13MAY W10558463
14MAY W10562155
15SWITCH, ROTARY ENCODER
16HARNESS, UPPER
17INLET ASSEMBLY, WATER
18SWITCH, ROTARY ENCODER
19MAY 359625
20MAY W10285511
21HARNESS, JUMPER
