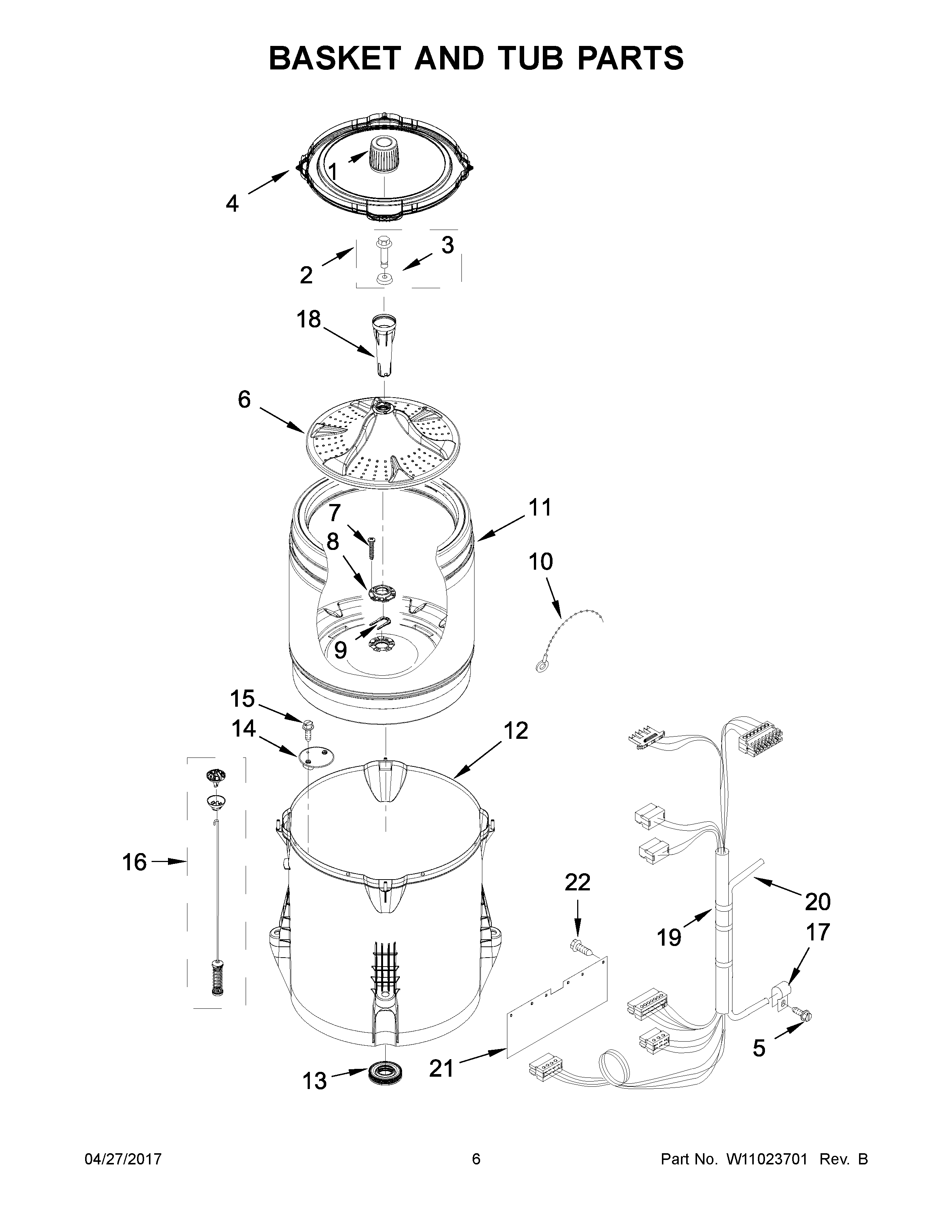

4KMVWC415FW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1DISPENSER, FABRIC SOFTENER
2SCREW & WASHER
3MAY 3949550
4MAY W10556325
5SCREW
6IMPELLER (WASHPLATE)
7SCREW
8HUB – DRIVEN, BASKET
9RETAINER, DRIVE BLOCK
10MAY W10339680
11MAY W10521298
12TUB
13MAY W10006371
14MAY W10215093
15Screw
16MAY W10821954
17CLAMP, CABLE
18BARREL, AGITATOR
19MAY W10908271
20MAY 8572540
21MAY W10339098
22MAY W10429200
