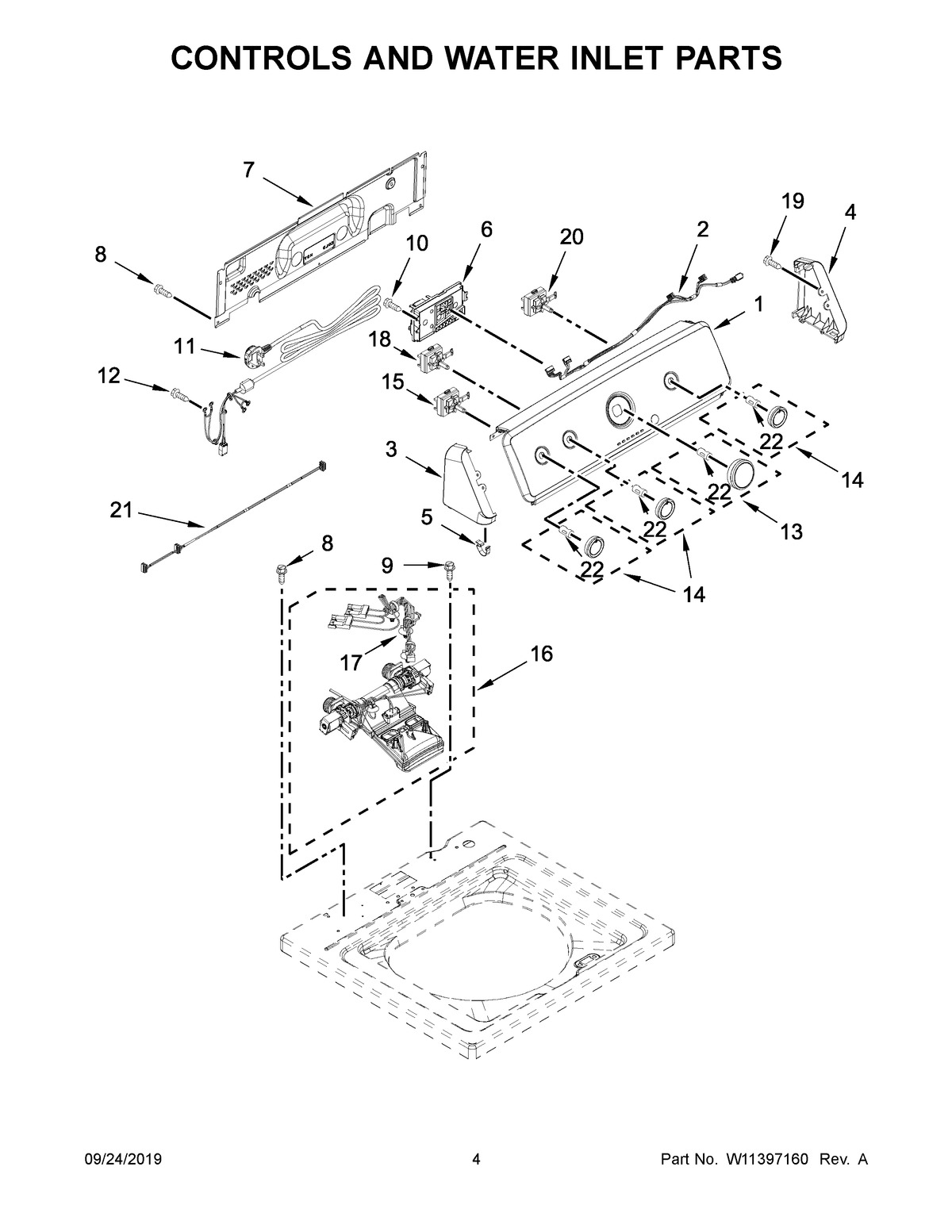

4KMVWC420JW0 03 – CONSOLE AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	HARNESS, UPPER
3	END CAP (LEFT) (WHITE)
4	END CAP (RIGHT) (WHITE)
5	MAY 8312709
6	MAY W11372891
7	MAY W10461159
8	SCREW
9	MAY W10213953
10	SCREW,8-18 X 3/8
11	MAY W11369863
12	Screw, 10-32 x 5/8
13	MAY W10558463
14	MAY W10562155
15	SWITCH, ROTARY ENCODER
16	INLET ASSEMBLY, WATER
17	HARNESS, VALVE
18	SWITCH, ROTARY ENCODER
19	MAY 359625
20	MAY W10285511
21	MAY W10694682
22	Spring, Clip Knob
