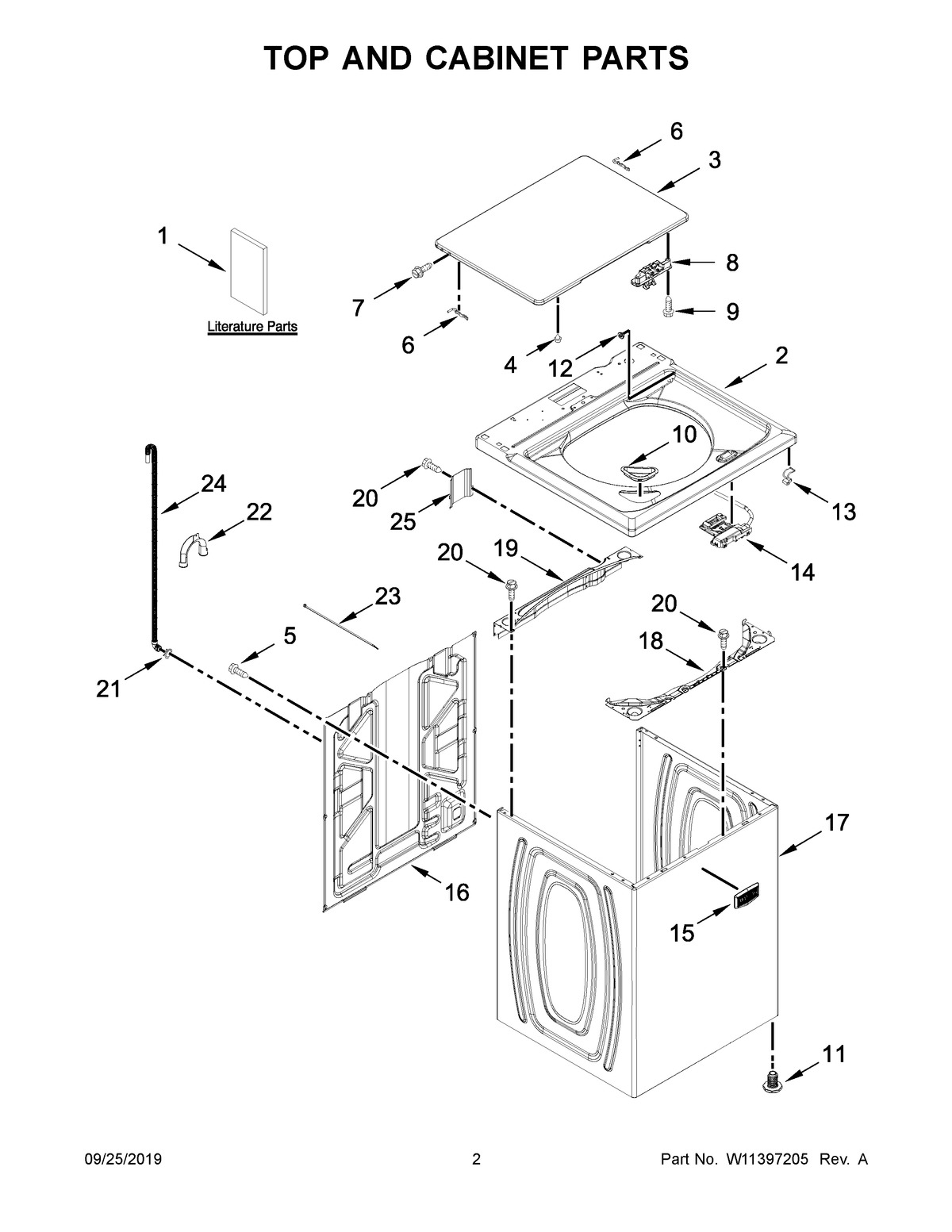

4KMVWC430JW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W11371740
1A	MAY W11372860
1B	MAY W11372865
1C	MAY W11398522
2	TOP (WHITE)
3	ASSEMBLY, LID (WHITE)
4	MAY 9724509
5	SCREW
6A	HINGE, LID (RIGHT HAND)
6	HINGE, LID
7	Screw And Washer
8	MAY W10714899
9	SCREW
10	MAY W10192089
11	FOOT ASSEMBLY, LEVELING
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	MAY W11390347
15	BADGE
16	PANEL, REAR
17	MAY W10478060
18	CHANNEL, TOP FRONT (WHITE)
19	BRACE, CABINET TOP – REAR
20	SCREW
21	MAY 356138
22	MAY W10280024
23	TIE, CABLE
24	HOSE, OUTER DRAIN ASSEMBLY
25	MAY W10676061
