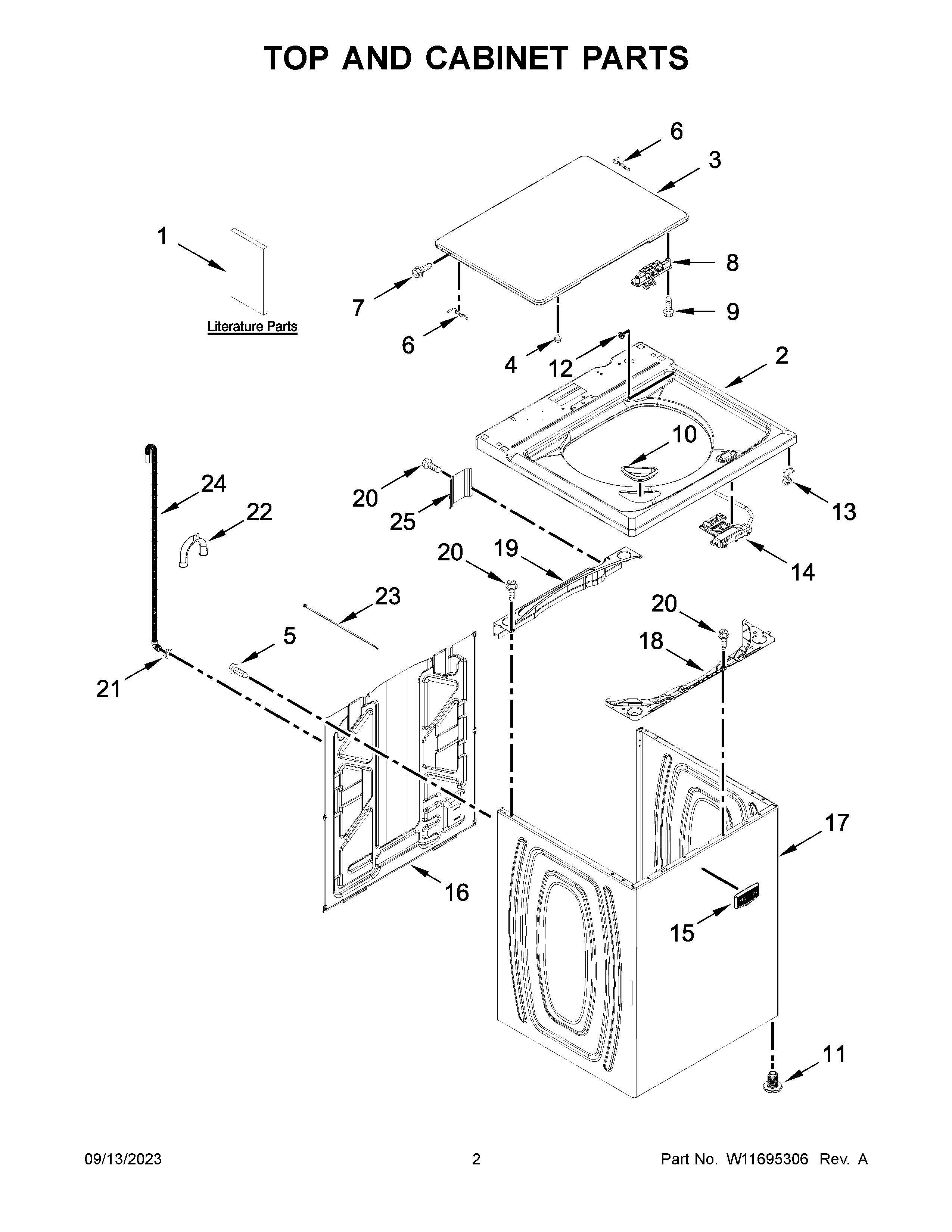

4KMVWC430JW2 02 – TOP AND CABINET PARTS

4KMVWC430JW2 02 – TOP AND CABINET PARTS

Written by

in

4KMVWC430JW2 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1AINSTRUCTIONS, INSTALLATION
1BQUICK START GUIDE
1USE AND CARE GUIDE
2W11210992 Whirlpool Top
3W10860912 Whirlpool Lid
4WP9724509 Whirlpool Bumper
5WP9740848 Whirlpool Dishwasher Screw
6WP91770 Whirlpool Hinge
6AWP54583 Whirlpool Hinge
7SCREW
8W10837741 Whirlpool Washer Lid Strike
9WPW10273971 Whirlpool Screw
10WPW10192089 Whirlpool Washer Bleach Dispenser
11W11213957 Whirlpool Dishwasher Leveling Leg
12WP21258 Whirlpool Washer Lid Hinge Bearing
13WP90016 Whirlpool Clip
14LATCH, LID LOCK ASSEMBLY
15WPW10612925 Whirlpool Microwave Nameplate
16W11486091 Whirlpool Rear Panel
17W10596395 Whirlpool Cabinet
18W11661767 Whirlpool Brace
19W11712680 Whirlpool Commercial Part Brace
20W11685943 Whirlpool Screw
21WP356138 Whirlpool Hose Clamp
22WPW10280024 Whirlpool Retainer
23WPW10339879 Whirlpool Wire Tie
24W11244231 Whirlpool Hose
25W10676061 Whirlpool Cover Assembly
