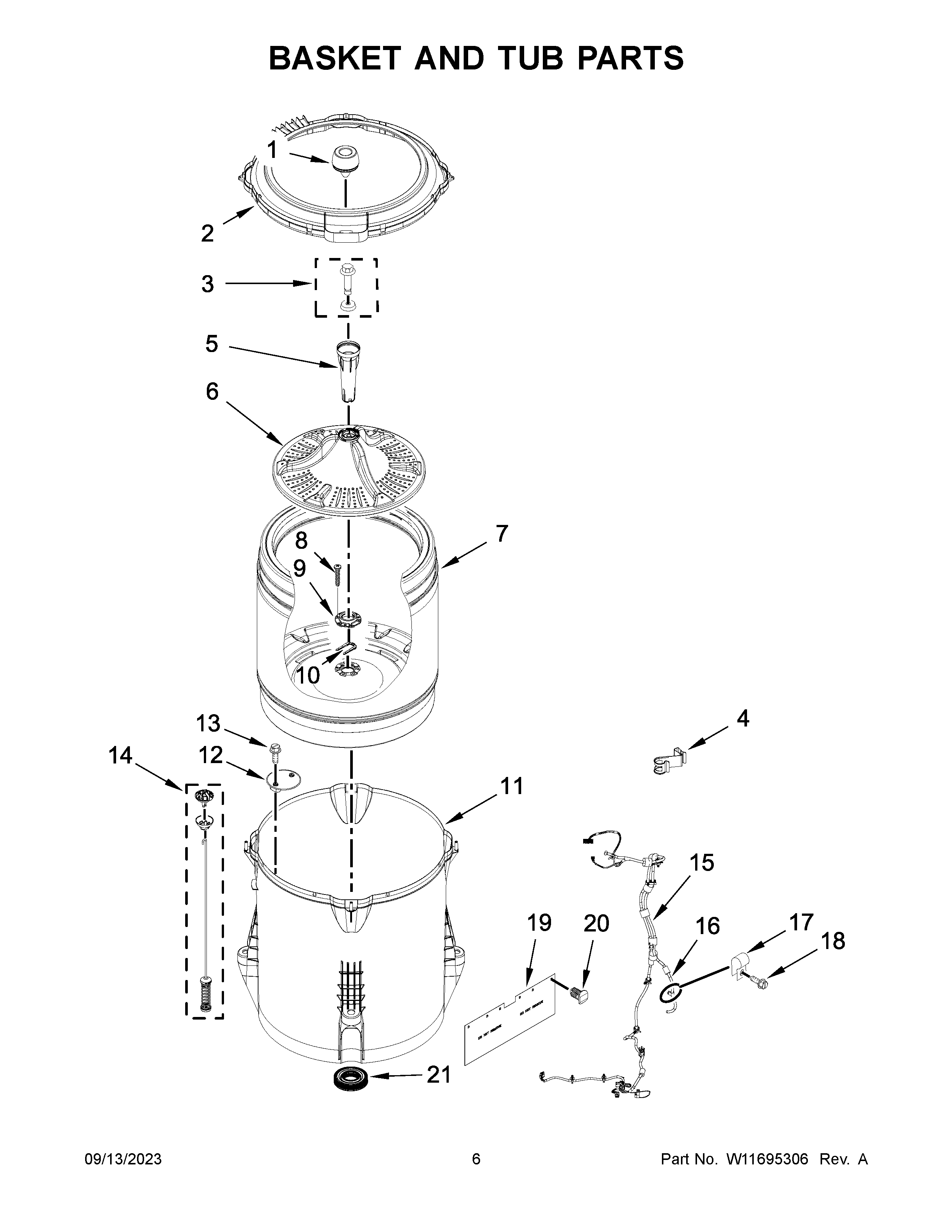

4KMVWC430JW2 04 – BASKET AND TUB PARTS

Products

Position	Product
1	W11024702 Whirlpool Dispenser
2	W11550886 Whirlpool Tub Ring
3	W11223765 Whirlpool Screw
4	CLIP
5	W10836692 Whirlpool Agitator Upper
6	W10919191 Whirlpool Washer Washplate
7	W11172199 Whirlpool Basket
8	WP8533953 Whirlpool Screw
9	W10528947 Whirlpool Washer Drive Hub Assembly
10	RETAINER
11	W10371566 Whirlpool Outer Tub
12	WPW10215093 Whirlpool Filter
13	WP8533928 Whirlpool Refrigerator Screw
14	SUSPENSION (SET OF 4)
15	HARNESS, LOWER
16	WP353244 Whirlpool Hose
17	W10005430 Whirlpool Clamp
18	WPW10109200 Whirlpool Screw
19	W10339098 Whirlpool Shield
20	W10429200 Whirlpool Retainer
21	W10324647 Whirlpool Seal Tub
