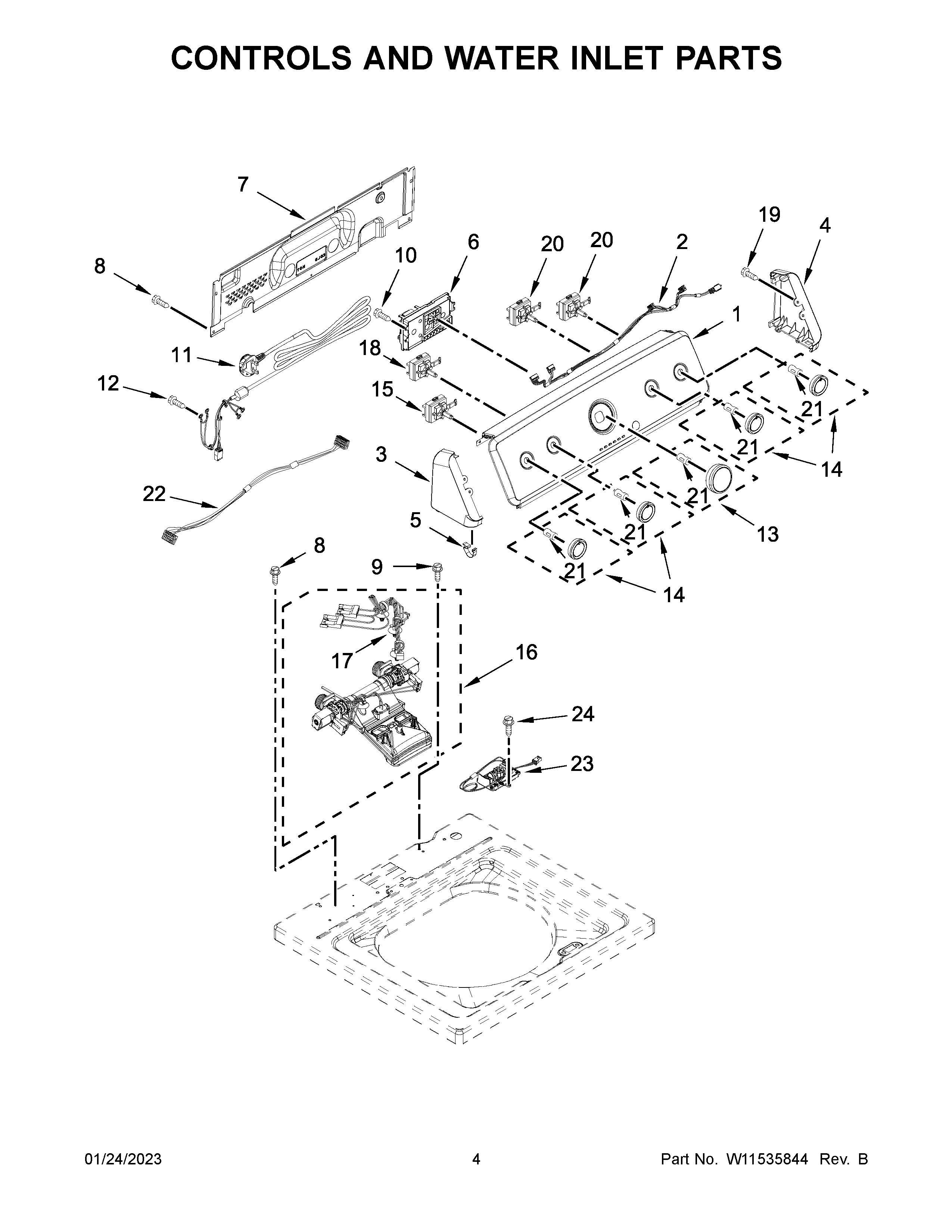

4KMVWC440JW1 03 – CONTROLS AND WATER INLET PARTS

4KMVWC440JW1 03 – CONTROLS AND WATER INLET PARTS

Written by

in

4KMVWC440JW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2W10694685 Whirlpool Wire Harness
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5WP8312709 Whirlpool Endcap Clip
6W11401123-includeCORE Whirlpool W11401123 Washer Electronic Control Board + Core
7WPW10461159 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9WPW10213953 Whirlpool Screw
10WP90767 Whirlpool Screw
11CORD, POWER
12W10846509 Whirlpool Screw
13WPW10558463 Whirlpool Knob Assembly
14WPW10562155 Whirlpool Knob
15WPW10285512 Whirlpool Cycle Switch
16W11038628 Whirlpool Valve Assembly
17HARNESS, VALVE
18WPW10285518 Whirlpool Cycle Switch
19W11693756 Whirlpool Screw Assembly
20WPW10285511 Whirlpool Cycle Switch
21WP688805 Whirlpool Spring Clip
22W10694669 Whirlpool Wire Harness
23W11660637 Whirlpool Filter
24W11568617 Whirlpool Screw
