4KMVWX505BW0 05 – GEARCASE, MOTOR AND PUMP PARTS – Aparts

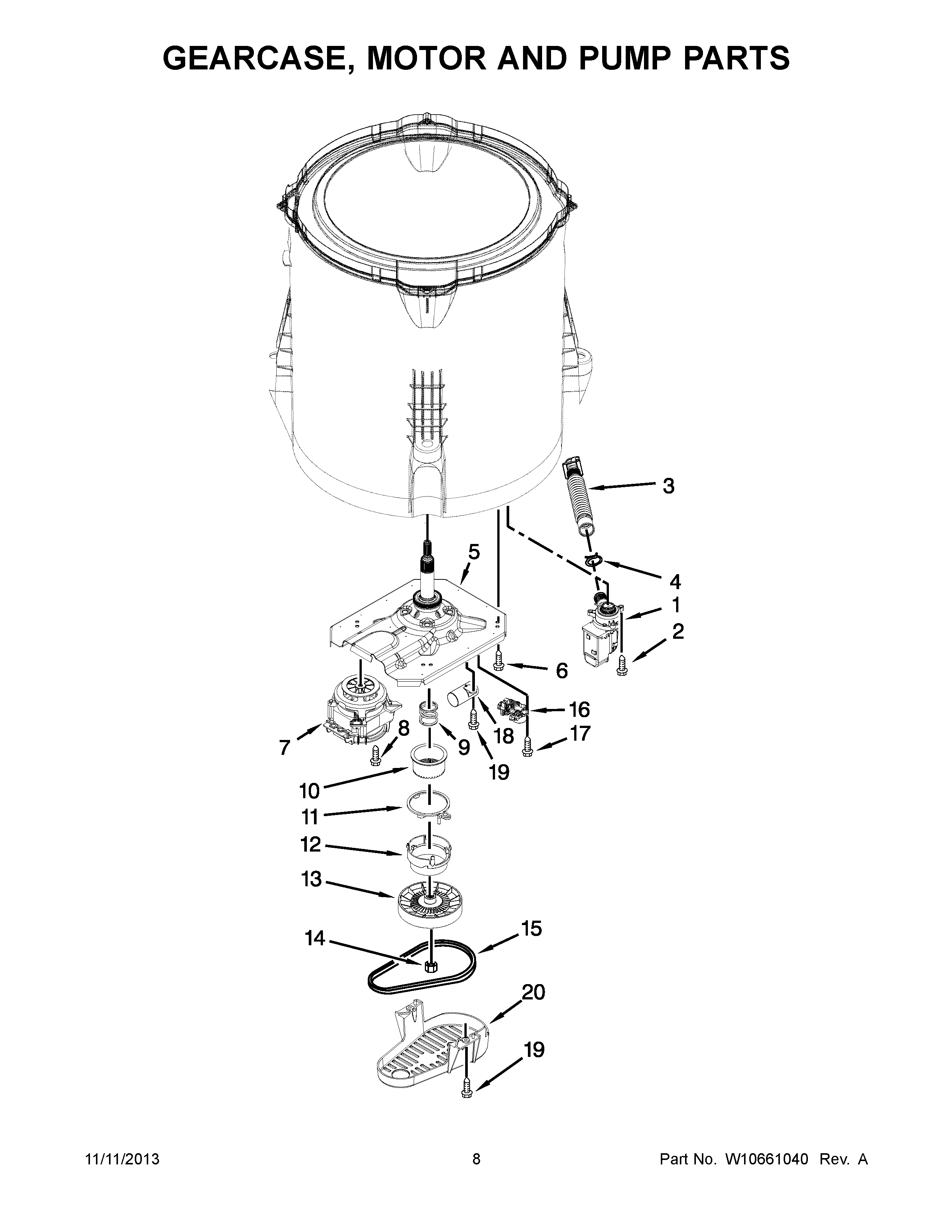

4KMVWX505BW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY W10297344
2	SCREW
3	MAY W10215091
4	MAY 8317496
5	MAY W10469846
6	SCREW
7	MAY W10416663
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10536113
14	NUT
15	MAY W10006384
16	MAY W10249623
17	SCREW
18	MAY W10456704
19	SCREW
20	MAY W10427633
