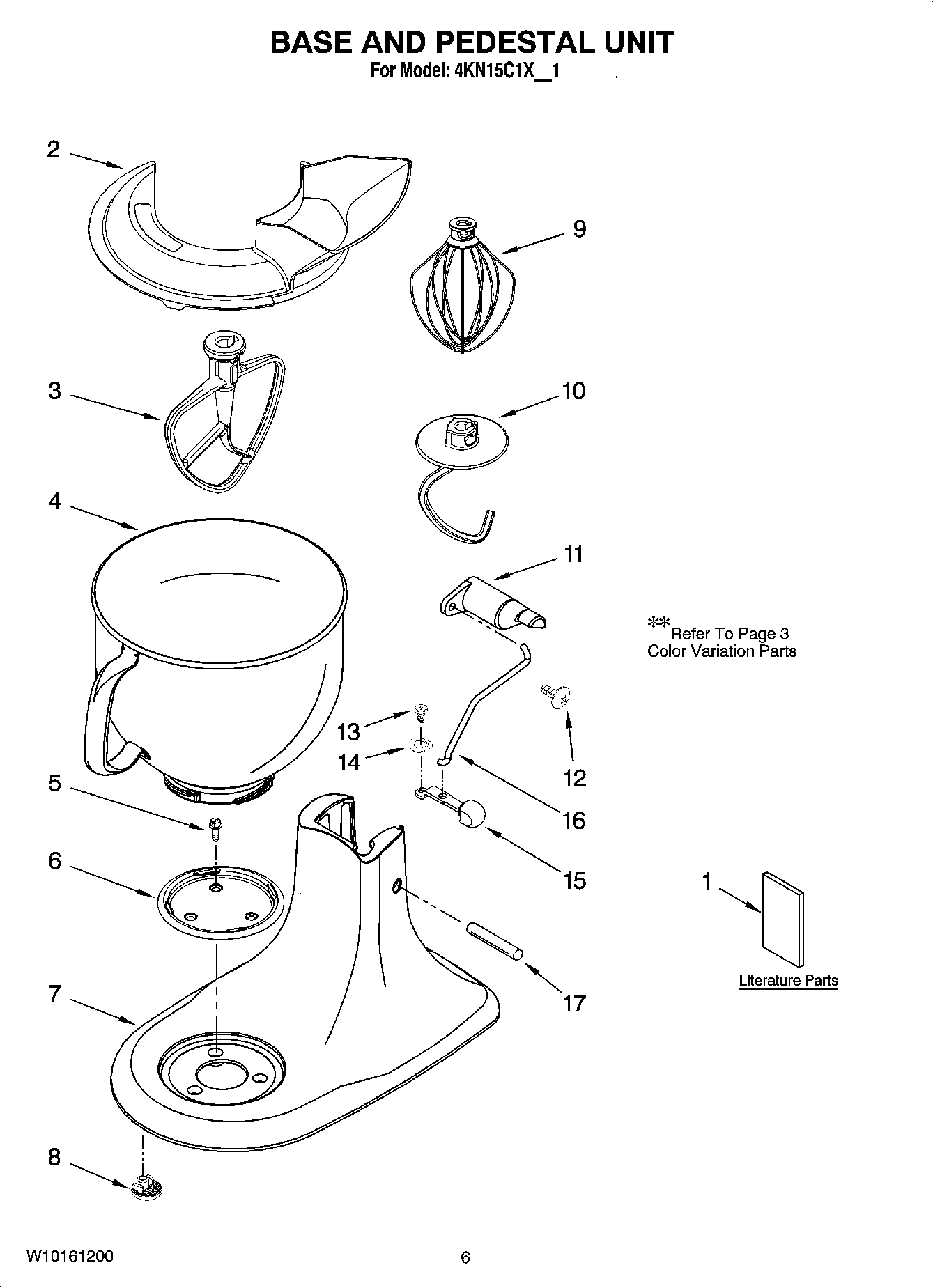

4KN15C1XMC1 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

4KN15C1XMC1 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Written by

in

4KN15C1XMC1 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

PositionProduct
CAN OPENER (CO)
FOOD GRINDER (FG-A)
JUICER (JE)
Grain Mill, KGMA
Following Parts Not Illustrated
Food Tray (FT)
W11200218 Whirlpool Grease Filter
Ice Cream Maker (KICA0WH0)
PASTA MAKER PLATES (SNPA)
SAUSAGE STUFFER KIT (SSA)
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
1Use & Care Guide (Canada, Bilingual)
1Repair Parts List
2W11312468 Whirlpool Pour Shelf
3WPW10672617 Whirlpool Stand Mixer Flat Beater
4Bowl and Base
5SCREW
6Screw Cap
7Pedestal & Foot
8WP9709707 Whirlpool Foot
9WP9704329 Whirlpool Wire Whip
10WPW10674618 Whirlpool Dough Hook
11Cam, Headlock
12WPW10001180 Whirlpool Refrigerator Screw
13WP110679 Whirlpool Screw
14WP116241 Whirlpool Washer
15Lever, Latch (Black)
15Lever, Latch (Grey)
16Link, Latch
17Pin, Hinge
