4KN15C1XOB1 02 – CASE, GEARING AND PLANETARY UNIT
Written by
in

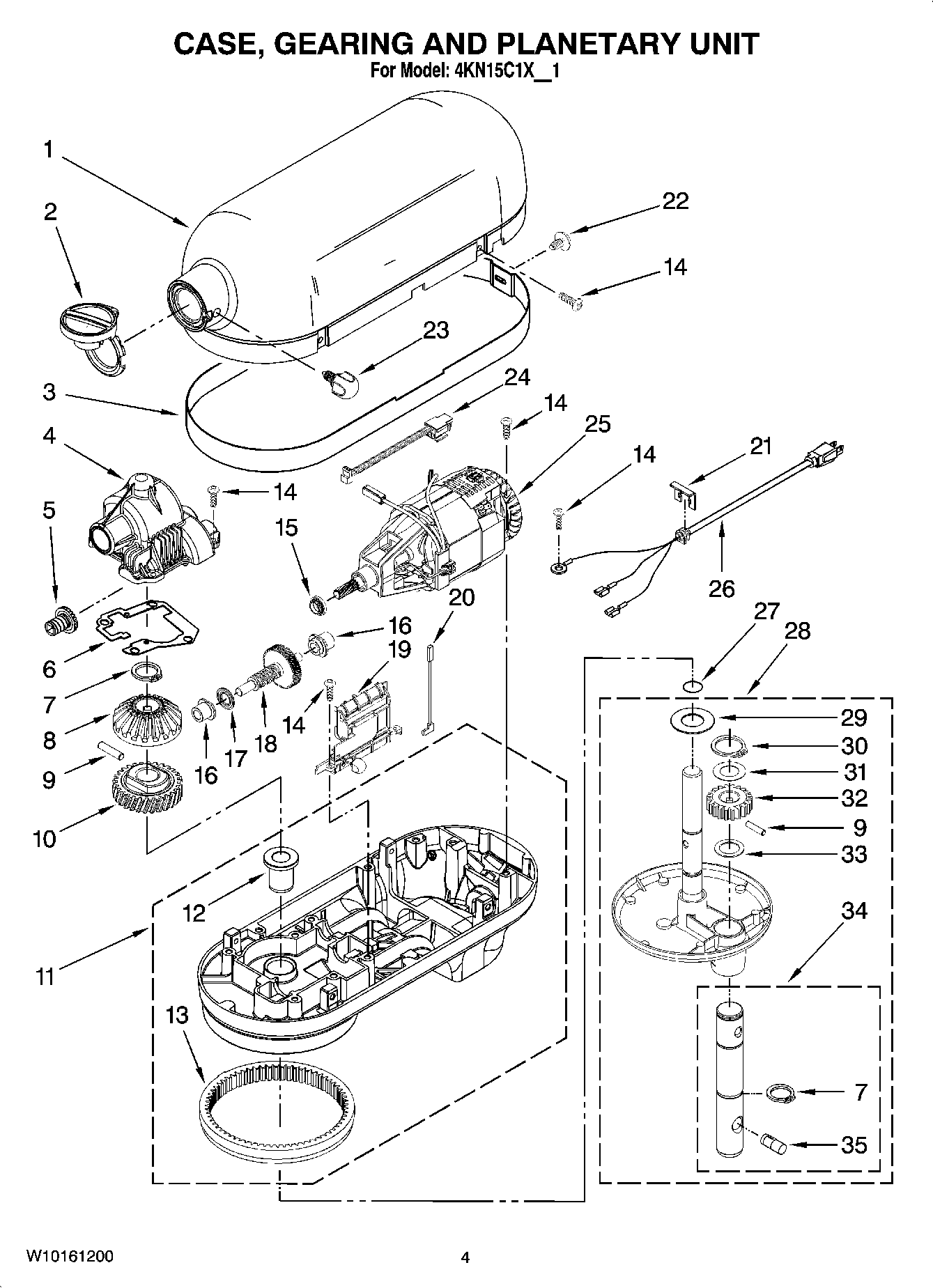

4KN15C1XOB1 02 – CASE, GEARING AND PLANETARY UNIT
Products
Position
Product
1
Motor Housing
2
W11401152 Whirlpool Hub Cap
3
Trim Band
4
8212396 Whirlpool Housing
6
WP9709511 Whirlpool Microwave High Voltage Transformer
7
WP9703680 Whirlpool Retainer Ring
8
W11192795 Whirlpool Gear
9
WP9707223 Whirlpool Dowel Pin
10
GEAR
11
Lower Gear Case
12
WP16897 Whirlpool Bearing
13
W11181966 Whirlpool Gear
14
WP3400814 Whirlpool Screw
15
WP9706247 Whirlpool Seal
16
WPW10170081 Whirlpool Bearing
16
WPW10170080 Whirlpool Bearing Assembly
17
WP9703445 Whirlpool Bearing Kit Thrust
18
WP9709231 Whirlpool Gear Assembly
20
9706036 Whirlpool Wire Assembly
21
Clip, Cord Retainer
22
W10853069 Whirlpool Screw
23
WP9709196 Whirlpool Screw
23
WP9709194 Whirlpool Black Thumb Screw
24
WP9706648 Whirlpool Speed Control
25
WPW10247536 Whirlpool Motor
26
Power Cord (Black)
26
Power Cord
27
O RING
28
Planetary Assembly
29
W11084660 Whirlpool Washer
30
WP9703438 Whirlpool Snap Retaining Ring
31
WP9706090 Whirlpool Washer
32
W11133646 Whirlpool Gear
33
W10854966 Whirlpool Washer
34
WP9708191 Whirlpool Agitator Shaft
35
W11664709 Whirlpool Groove Pin
←
