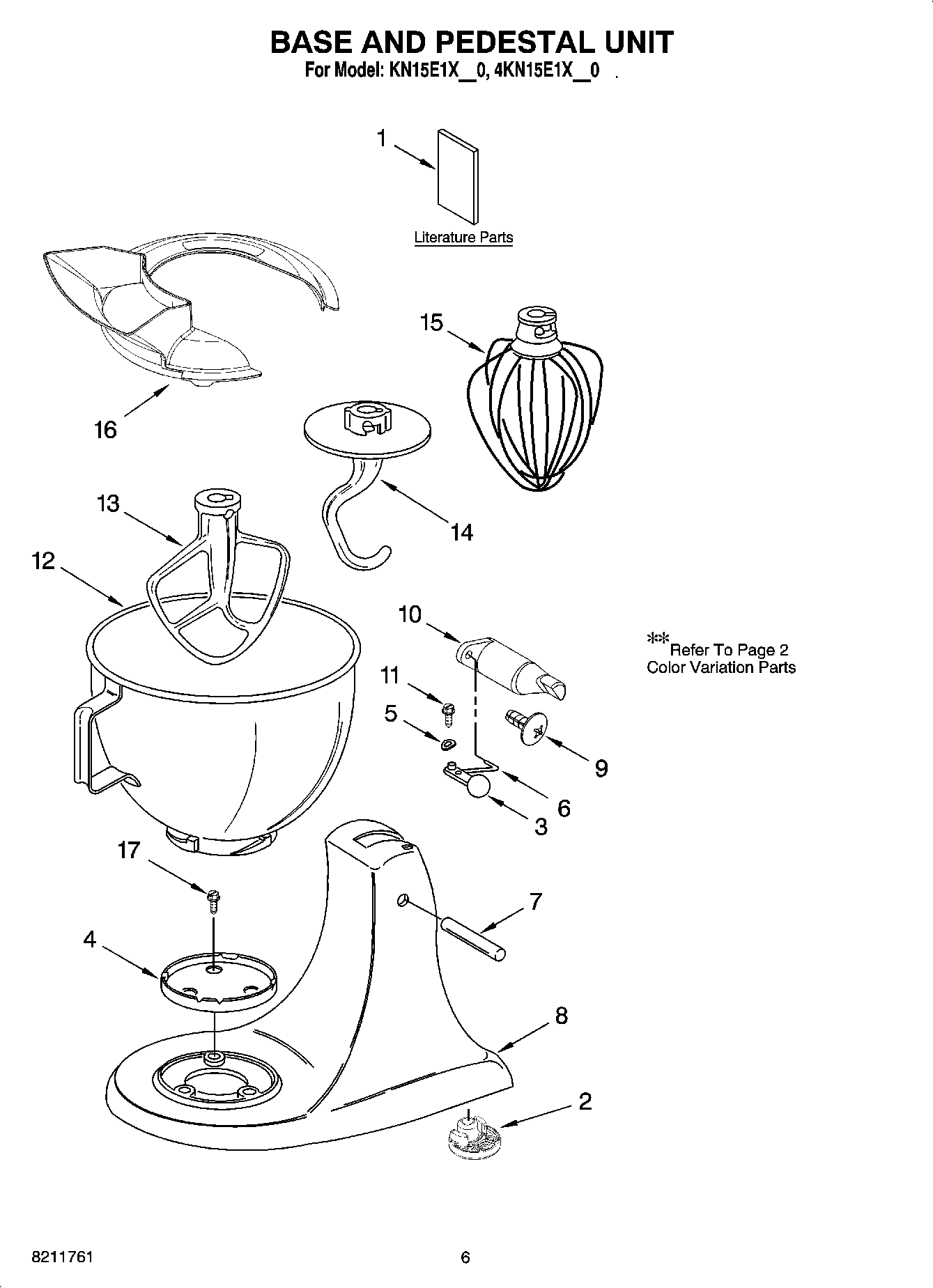

4KN15E1XJB0 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

4KN15E1XJB0 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Written by

in

4KN15E1XJB0 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

PositionProduct
CAN OPENER (CO)
FOOD GRINDER (FG-A)
Following Parts Not Illustrated
Food Tray (FT)
W11200218 Whirlpool Grease Filter
PASTA MAKER PLATES (SNPA)
SAUSAGE STUFFER KIT (SSA)
FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
Grain Mill (GM-A)
ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
JUICER (JE)
1Repair Parts List
1Use & Care Guide (U.S.)
1Use & Care Guide (Canada)
1LITERATURE PARTS
2WP9709707 Whirlpool Foot
3Lever, Latch (Grey)
3Lever, Latch (Black)
4Screw Cap
5WP116241 Whirlpool Washer
6Link, Latch
7Pin, Hinge
8Pedestal and Foot Assembly
9WPW10001180 Whirlpool Refrigerator Screw
10Cam, Headlock
11WP110679 Whirlpool Screw
12Bowl and Base
13WPW10672617 Whirlpool Stand Mixer Flat Beater
14WPW10674618 Whirlpool Dough Hook
15WP9704329 Whirlpool Wire Whip
16W11312468 Whirlpool Pour Shelf
17SCREW
