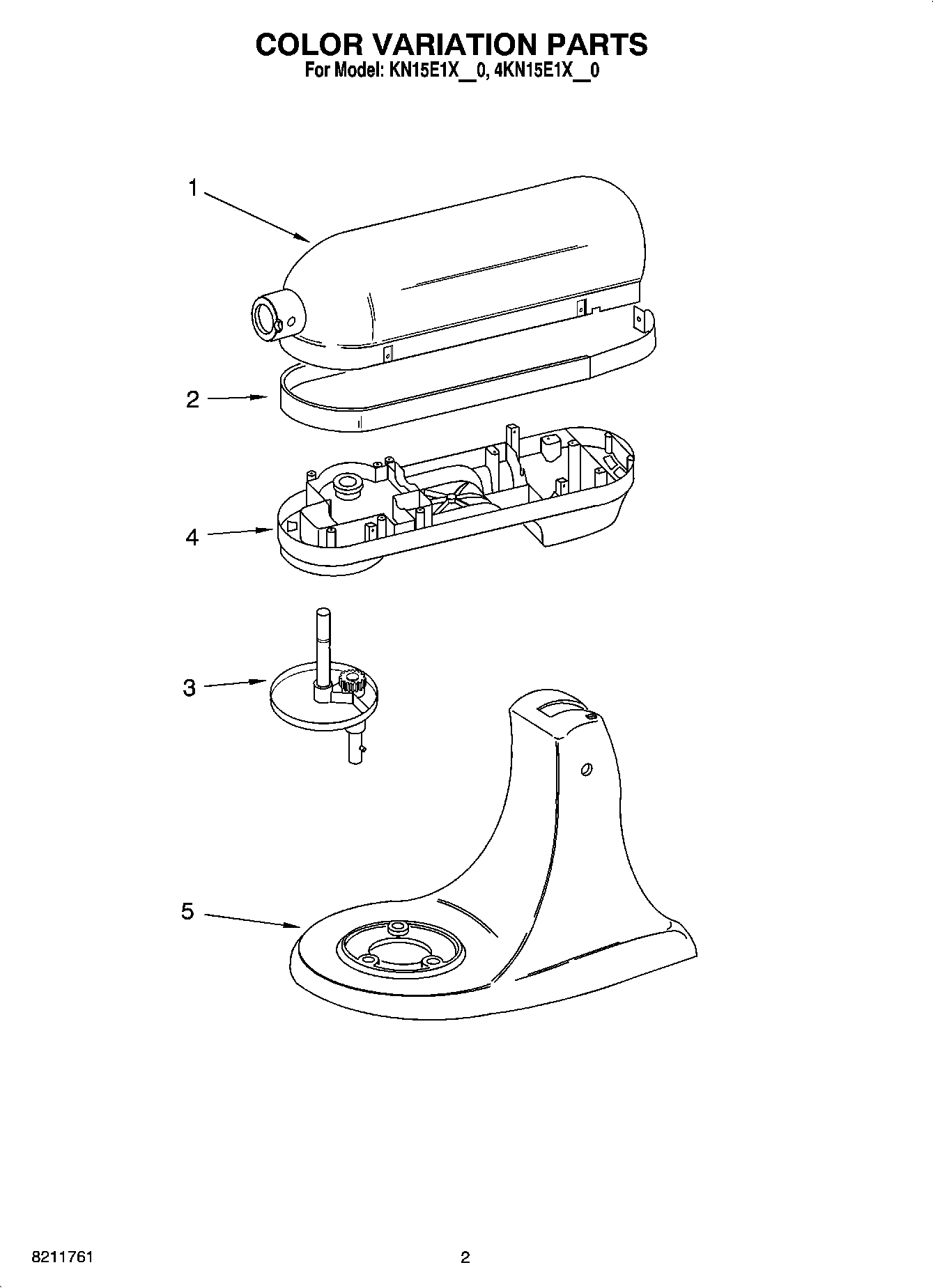

4KN15E1XMR0 01 – COLOR VARIATION PARTS

4KN15E1XMR0 01 – COLOR VARIATION PARTS

Written by

in

4KN15E1XMR0 01 – COLOR VARIATION PARTS

Products

PositionProduct
19709571 Whirlpool Housing Assembly
1Motor Housing (Pink Satin)
1Motor Housing (Peppercorn)
1Motor Housing (Olive)
1Motor Housing (Cinnamon)
1Motor Housing (Dijon)
1Motor Housing (Terra Cotta)
1Motor Housing (Juniper Berry)
1Motor Housing (Lemon Grass/ Green Apple)
1Motor Housing (Sky)
1Motor Housing (Licorice)
1Motor Housing (Mint Julip)
1Motor Housing (Sugar Plum)
1Motor Housing (Blue Willow)
1Motor Housing (Sorbet)
1Motor Housing (Honeysuckle)
19708658 Whirlpool Housing
2Trim Band (White)
3Planetary (Sorbet)
3Planetary (Blue Willow)
3Planetary (Sugar Plum)
3Planetary (Mint Julip)
3Planetary (Honeysuckle)
3Planetary (Sky)
3Planetary (Meringue)
3Planetary (Cinnamon)
3Planetary (Green Peppercorn)
3Planetary (Olive)
3W11123171 Whirlpool Planetary Assembly
3WP9709575 Whirlpool Planetary Mixer
3Planetary (Lemon Grass/ Green Apple)
3Planetary (Pink Satin)
3Planetary (Juniper Berry)
3Planetary (Terra Cotta)
3Planetary (Dijon)
4WPL 9709050
4WPL 9709009
4WPL 9709087
4WPL 9709100
4Lower Gearcase (Meringue)
4WPL 9709021
4WPL 9709113
4WPL 9708624
4WPL 9708997
4Lower Gearcase (Olive)
4Lower Gearcase (Dijon)
4Lo
4Lower Gearcase (Green Peppercorn)
4Lower Gearcase (Cinnamon)
4WPL 9708982
4Lower Gearcase (Silver)
4Lower Gearcase (Licorice)
5WPL 9708985
5WPL 9709012
5WPL 9709000
5WPL 9709024
5WPL 9709053
5WPL 9709090
5WPL 9709103
5WPL 9708627
5WPL 9708609
5WPL 9708597
5WPL 9708585
5WPL 9708561
5WPL 9708537
5Pedestal and Foot Assembly (Silver)
5Pedestal and Foot Assembly (Meringue)
5Pedestal and Foot Assembly (Licorice)
5WPL 9709116
