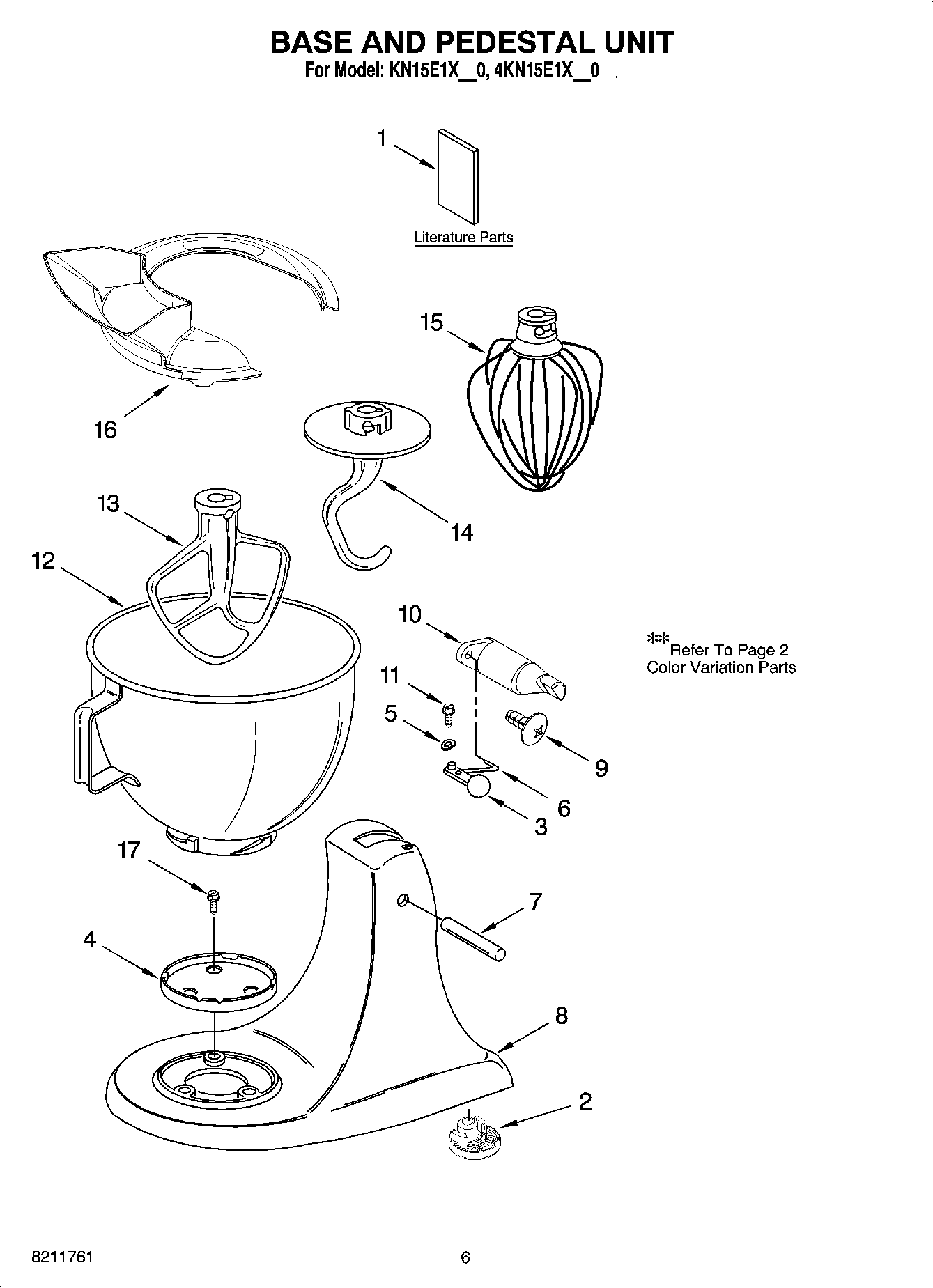

4KN15E1XSL0 03 – BASE AND PEDESTAL UNIT, OPTIONAL PARTS

Products

Position	Product
	CAN OPENER (CO)
	FOOD GRINDER (FG-A)
	Food Tray (FT)
	W11200218 Whirlpool Grease Filter
	Following Parts Not Illustrated
	PASTA MAKER PLATES (SNPA)
	SAUSAGE STUFFER KIT (SSA)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	Grain Mill (GM-A)
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	JUICER (JE)
1	Repair Parts List
1	Use & Care Guide (Canada)
1	Use & Care Guide (U.S.)
1	LITERATURE PARTS
2	WP9709707 Whirlpool Foot
3	Lever, Latch (Grey)
3	Lever, Latch (Black)
4	Screw Cap
5	WP116241 Whirlpool Washer
6	Link, Latch
7	Pin, Hinge
8	Pedestal and Foot Assembly
9	WPW10001180 Whirlpool Refrigerator Screw
10	Cam, Headlock
11	WP110679 Whirlpool Screw
12	Bowl and Base
13	WPW10672617 Whirlpool Stand Mixer Flat Beater
14	WPW10674618 Whirlpool Dough Hook
15	WP9704329 Whirlpool Wire Whip
16	W11312468 Whirlpool Pour Shelf
17	SCREW
