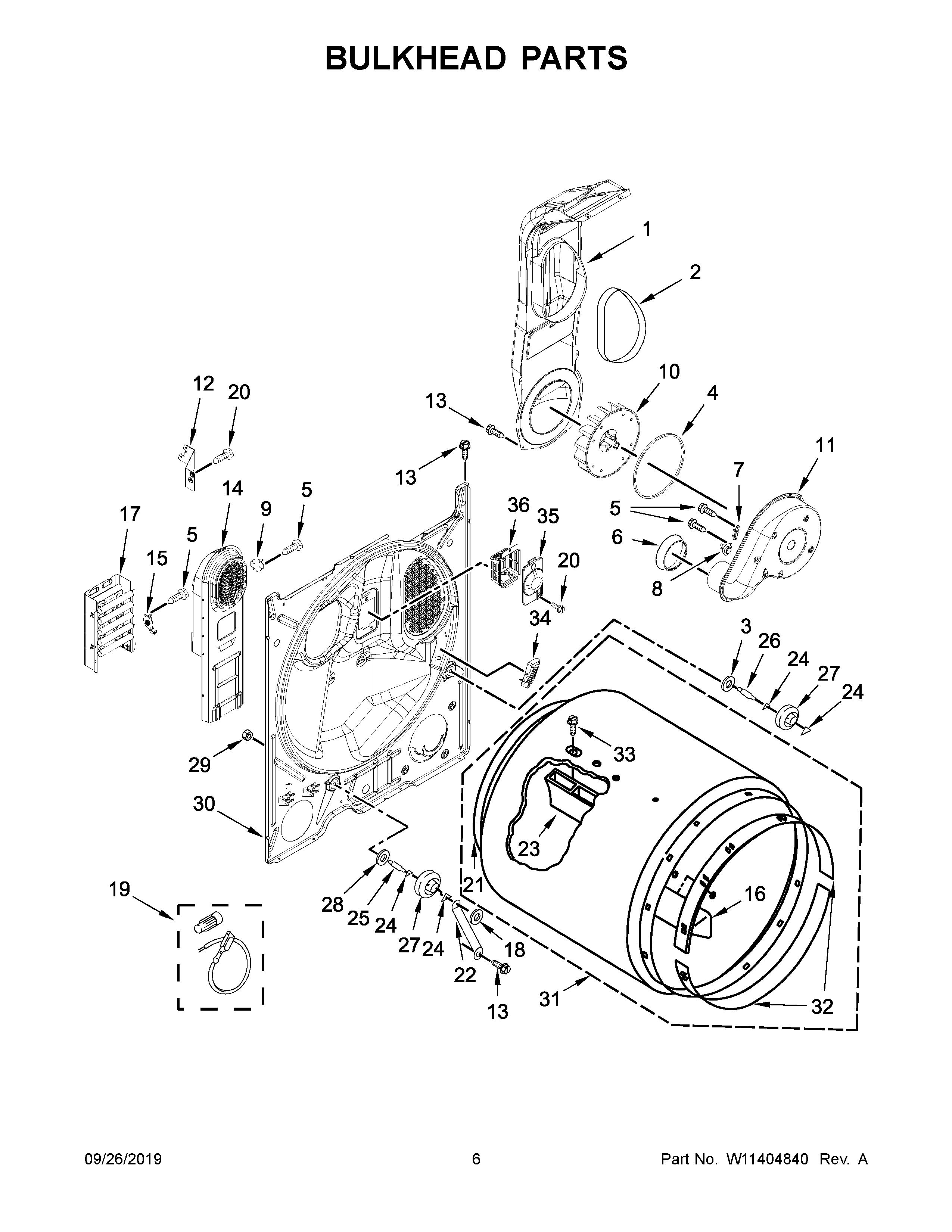

4KNED3100JW0 04 – BULKHEAD PARTSadmin2025-04-26T09:18:46+00:004KNED3100JW0 04 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, LINT CHUTE |
| 2 | MAY 339956 |
| 3 | WASHER |
| 4 | MAY 347139 |
| 5 | SCREW,8-18 X 3/8 |
| 6 | MAY W10389567 |
| 7 | Fuse, Thermal (91 C) |
| 8 | THERMOSTAT, INTERNAL BIAS |
| 9 | KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT) |
| 10 | Wheel, Blower |
| 11 | MAY 8577230 |
| 12 | MAY W11102319 |
| 13 | SCREW |
| 14 | MAY 8541818 |
| 15 | MAY 3977767 |
| 16 | BAFFLE, DRUM (SHORT) |
| 17 | ELEMENT, HEATER |
| 18 | NUT, PUSH ON |
| 19 | BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE |
| 20 | SCREW |
| 21 | SEAL, REAR DRUM |
| 22 | BRACKET, SUPPORT |
| 23 | BAFFLE, DRUM (LONG) |
| 24 | WASHER, TRI RING |
| 25 | MAY W10359270 |
| 26 | MAY W10359269 |
| 27 | MAY W10756057 |
| 28 | WASHER |
| 29 | MAY W10298789 |
| 30 | BULKHEAD |
| 31 | ASSEMBLY, DRUM (COMPLETE) |
| 32 | Bearing, Ring |
| 33 | MAY W10219342 |
| 34 | PAD, SENSOR |
| 35 | MAY W10183187 |
| 36 | MAY 8578825 |
