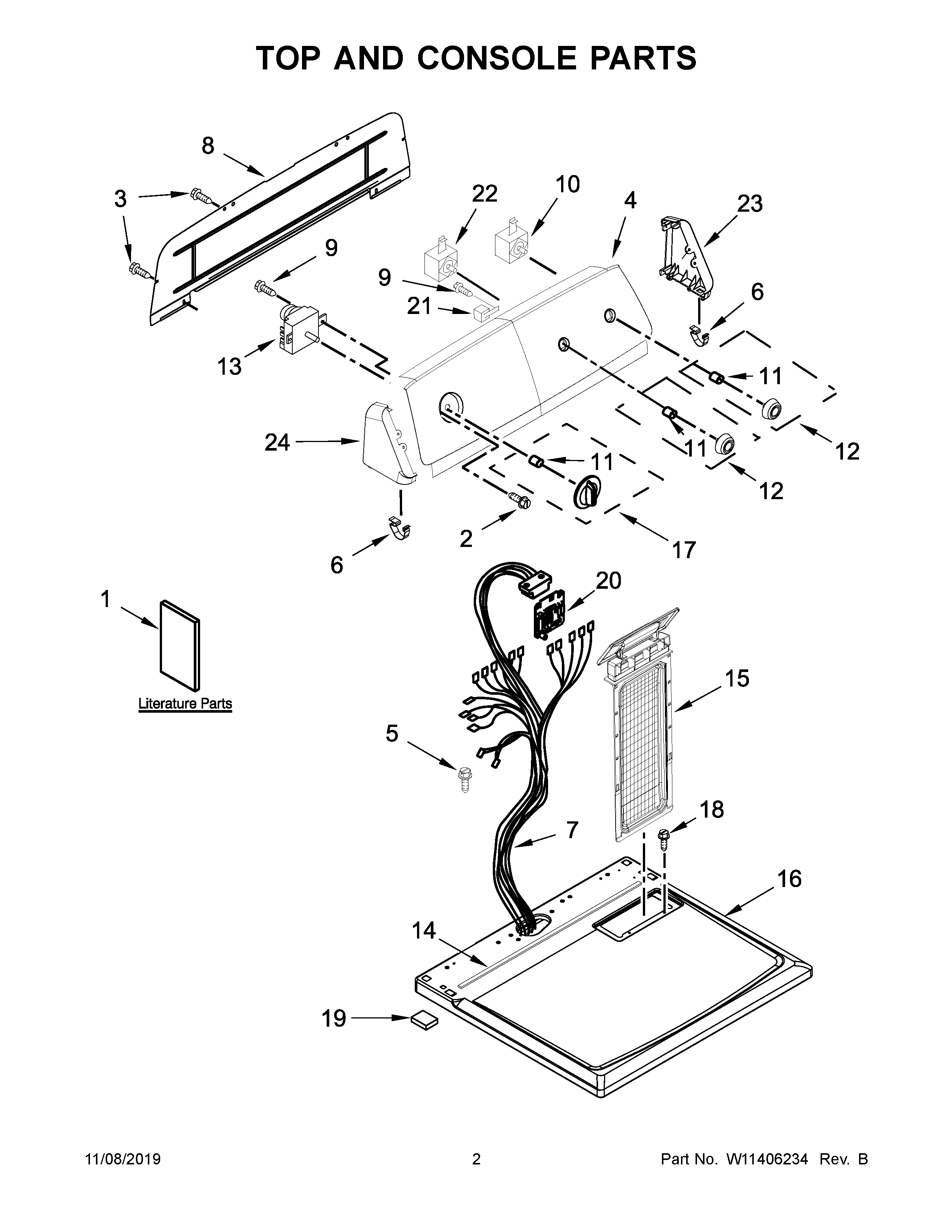

4KNED3200JW0 02 – TOP AND CONSOLE PARTS
Written by
in
4KNED3200JW0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1A
MAY W11366266
1
MAY W11387408
1B
MAY W11399547
2
MAY 8533971
3
Screw
4
MAY W11370834
5
SCREW
6
MAY 8312709
7
MAY W11352184
8
MAY W10103406
9
MAY 3348629
10
SWITCH, PUSH TO START
11
Spring, Clip Knob
12
MAY W10562155
13
TIMER, 60 HZ.
14
MAY W10316616
15
MAY W10717210
16
MAY 8559800
17
MAY W10558463
18
SCREW
19
MAY 3389682
20
MAY W11387733
21
MAY 3952439
22
Switch, (End Of Cycle)
23
END CAP (RIGHT) (WHITE)
24
END CAP (LEFT) (WHITE)
←
