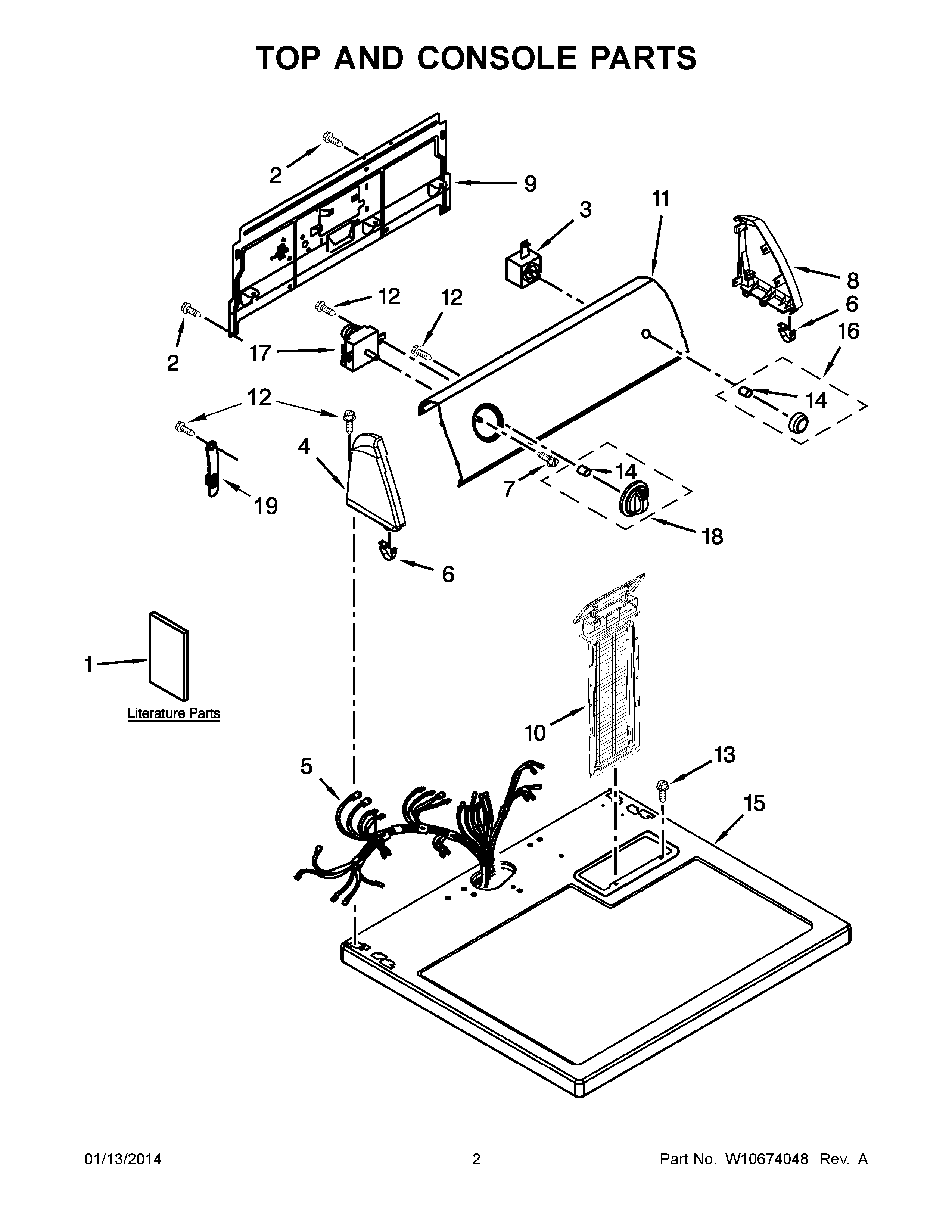

4KNED4400BQ0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10629448
1MAY W10631594
1MAY W10636932
2Screw
3MAY 3977456
4MAY W10251358
5MAY W10599161
6MAY 8312709
7MAY 3348629
8MAY W10251355
9MAY W10121161
10LINT SCREEN (WHITE)
11MAY W10598021
12SCREW,8-18 X 3/8
13SCREW
14CLIP, SPRING
15TOP
16MAY W10317459
17MAY 8299781
18KNOB ASSEMBLY, TIMER
19Strap, Console
