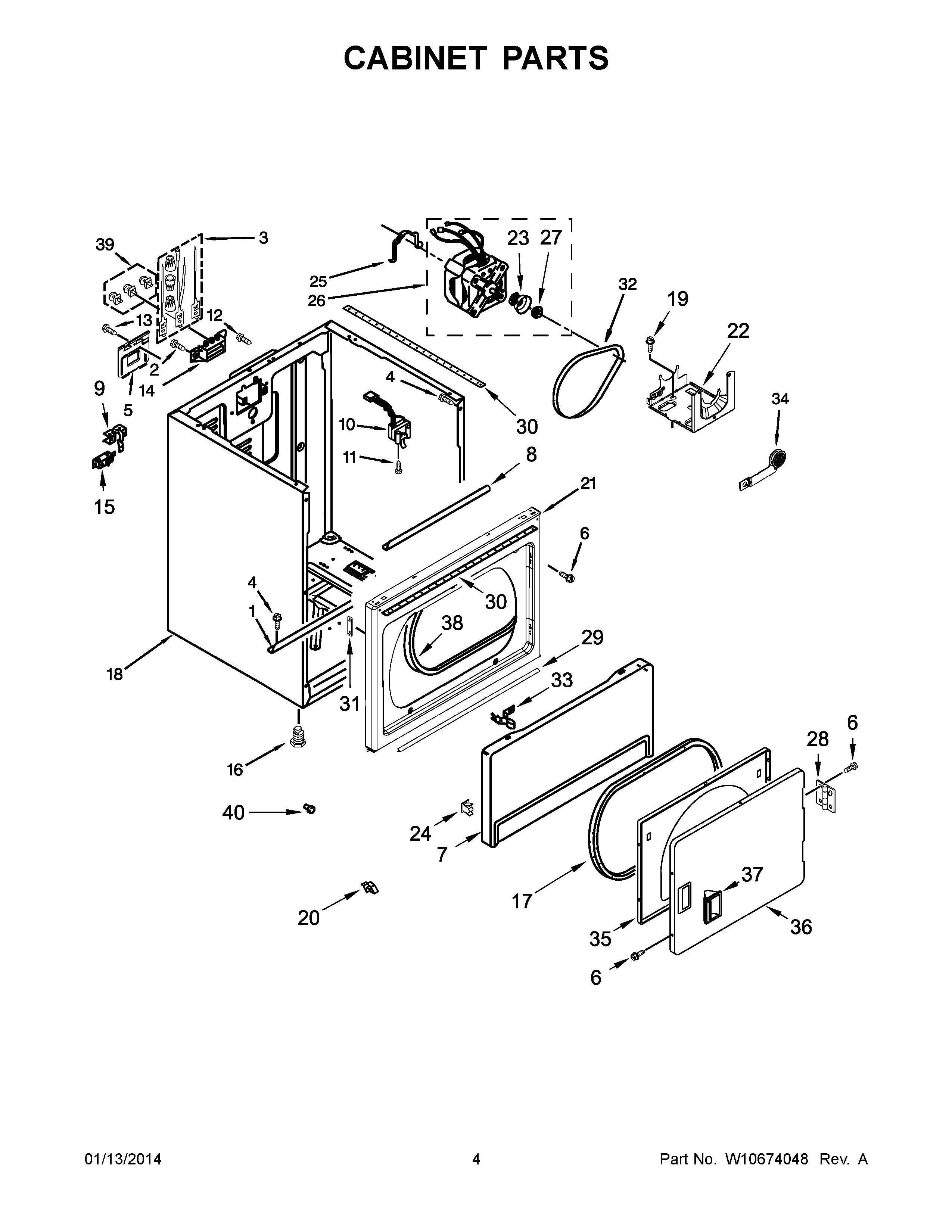

4KNED4400BQ0 03 – CABINET PARTS

Products

Position	Product
1	MAY W10236073
2	SCREW, 10-16 X 1/2
3	TERMINAL, BRASS & TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
4	SCREW
5	MAY W10601020
6	MAY 342055
7	Toe Panel (Includes Item. 2) (White)
8	BRACKET, CABINET
9	Lever, Snap Switch
10	MAY W10237959
11	SCREW
12	SCREW
13	Screw
14	MAY 3397659
15	MAY 8318457
16	MAY 3392100
17	MAY 3390735
18	MAY W10547697
19	SCREW
20	RETAINER
21	Upper Front Panel (White)
22	MAY 3387118
23	MAY 3393657
24	MAY 3392538
25	MAY 660658
26	MAY W10489550
27	MAY 3389729
28	ASSEMBLY, HINGE & PIN (SILVER)
29	MAY W10576519
30	SEAL, FOAM
31	PLUG, HINGE SCREW
32	MAY 3387610
33	MAY 696144
34	ASSEMBLY, IDLER
35	MAY W10323061
36	DOOR, FRONT
37	HANDLE, DOOR
38	MAY 3387242
39	MAY 279393
40	BUMPER
