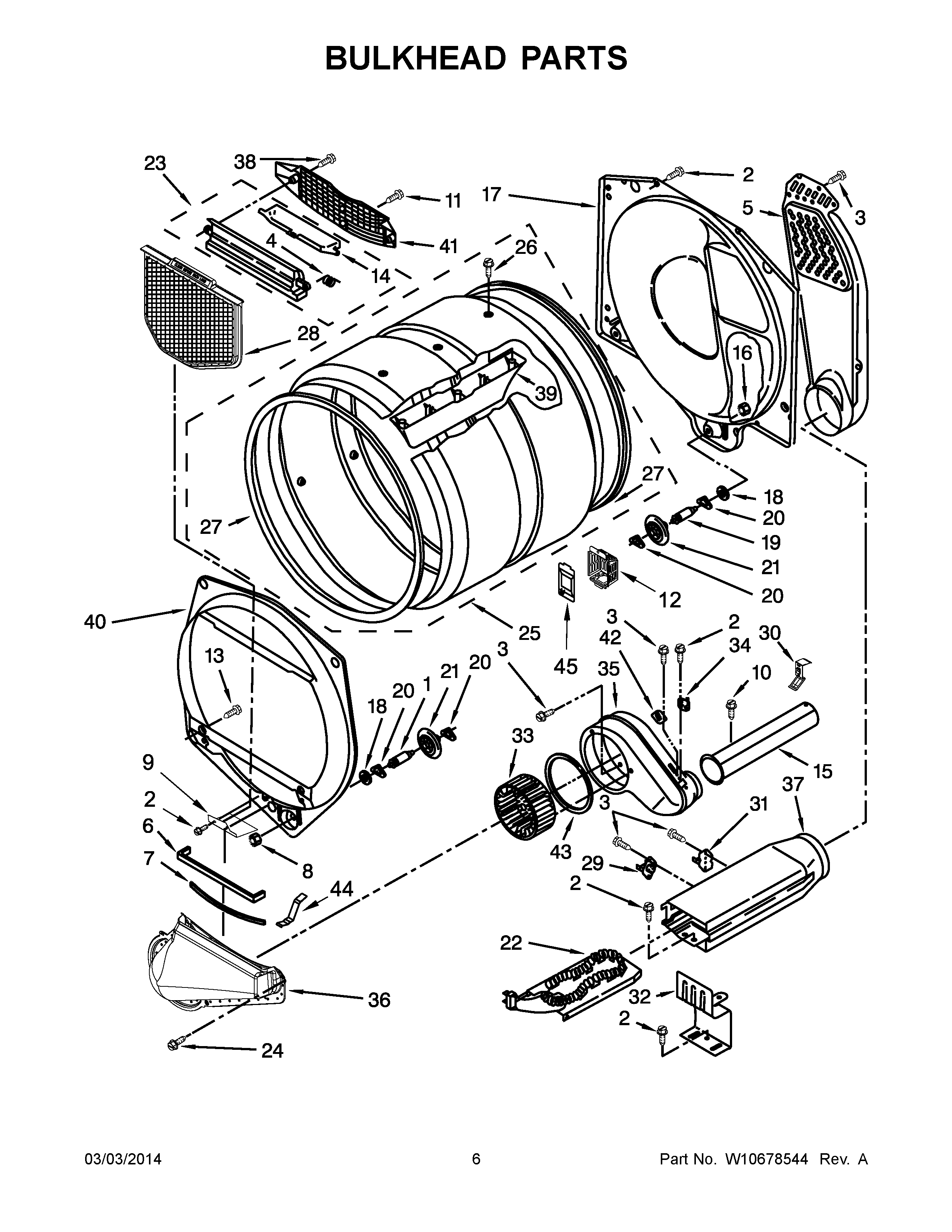

4KNED4400BQ1 04 – BULKHEAD PARTSadmin2025-04-26T09:15:50+00:004KNED4400BQ1 04 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | SCREW |
| 3 | SCREW,8-18 X 3/8 |
| 4 | Spring, Lint Screen Door |
| 5 | ASSEMBLY, AIR DUCT |
| 6 | MAY 697813 |
| 7 | MAY 697814 |
| 8 | NUT, HEX |
| 9 | MAY W10128629 |
| 10 | MAY 8533971 |
| 11 | Screw, 8-18 x 1/2 |
| 12 | MAY 8578825 |
| 13 | SCREW |
| 14 | MAY W10181925 |
| 15 | PIPE, EXHAUST |
| 16 | NUT, HEX (LEFT HAND THREAD) |
| 17 | MAY 8520836 |
| 18 | WASHER |
| 19 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 20 | WASHER, TRI RING |
| 21 | ROLLER, SUPPORT |
| 22 | ELEMENT, HEATER |
| 23 | OUTLET HOUSING ASSEMBLY |
| 24 | Screw |
| 25 | ASSEMBLY, DRUM |
| 26 | MAY W10219342 |
| 27 | MAY W10521118 |
| 28 | LINT SCREEN (WHITE) |
| 29 | MAY 3391914 |
| 30 | CLIP, EXHAUST |
| 31 | MAY 8318314 |
| 32 | MAY 8066099 |
| 33 | MAY W10349492 |
| 34 | MAY W10168174 |
| 35 | MAY 8544363 |
| 36 | Lint Duct Assembly |
| 37 | HEATER BOX, |
| 38 | SCREW |
| 39 | BAFFLE, DRUM |
| 40 | BULKHEAD, FRONT |
| 41 | MAY W10181926 |
| 42 | THERMAL-LIMITER (89 C) |
| 43 | SEAL, PLATE COVER |
| 44 | CLIP, SPRING |
| 45 | MAY 3402841 |
