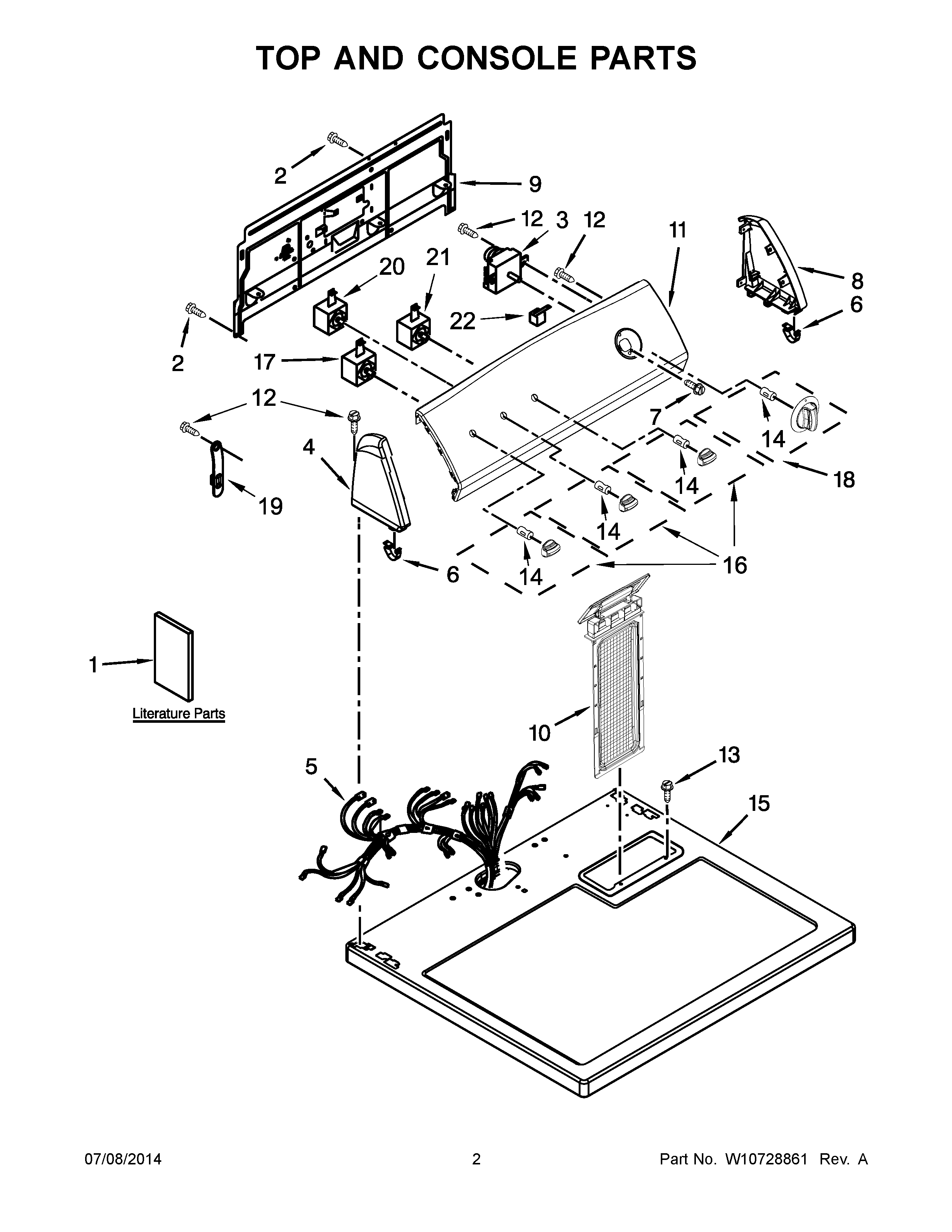

4KNED4600BQ1 02 – TOP AND CONSOLE PARTS

4KNED4600BQ1 02 – TOP AND CONSOLE PARTS

Written by

in

4KNED4600BQ1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W10660262
1A	MAY W10629448
1	MAY W10636932
2	Screw
3	MAY W10112668
4	MAY W10251358
5	MAY W10640695
6	MAY 8312709
7	MAY 3348629
8	MAY W10251355
9	MAY W10121161
10	LINT SCREEN (WHITE)
11	MAY W10598022
12	SCREW,8-18 X 3/8
13	SCREW
14	CLIP, SPRING
15	TOP
16	KNOB ASSEMBLY, CONTROL
17	TIMER, 60 HZ.
18	KNOB ASSEMBLY, TIMER
19	Strap, Console
20	MAY 3405156
21	Switch, Temperature
22	MAY 3952439
