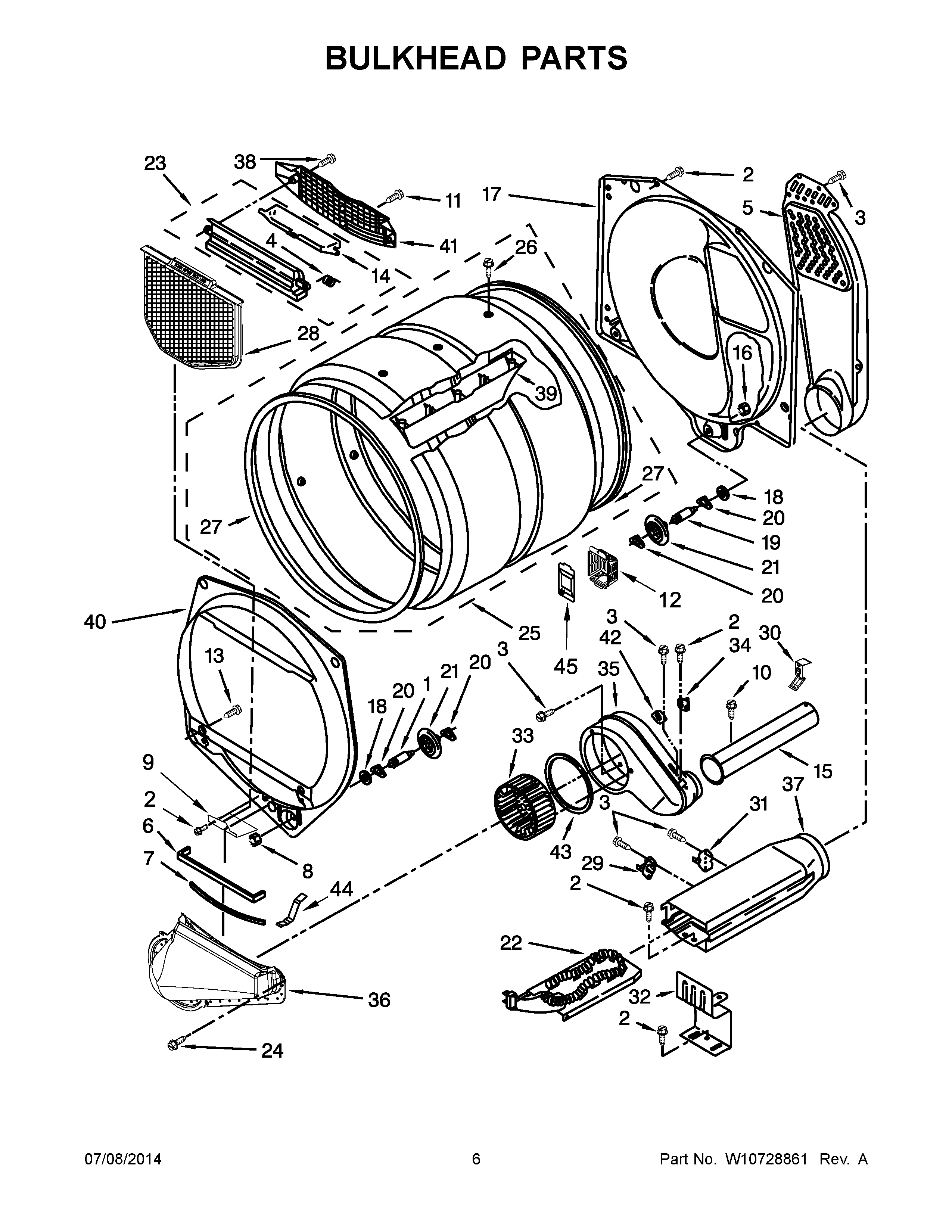

4KNED4600BQ1 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	SCREW,8-18 X 3/8
4	Spring, Lint Screen Door
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10128629
10	MAY 8533971
11	Screw, 8-18 x 1/2
12	MAY 8578825
13	SCREW
14	MAY W10685668
15	PIPE, EXHAUST
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	ELEMENT, HEATER
23	ASSEMBLY, OUTLET HOUSING
24	Screw
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	LINT SCREEN (WHITE)
29	MAY 3391914
30	CLIP, EXHAUST
31	MAY 8318314
32	ASSEMBLY, WELD HEATER BOX
33	MAY W10349492
34	MAY W10168174
35	MAY 8544363
36	Lint Duct Assembly
37	MAY 8066099
38	SCREW
39	BAFFLE, DRUM
40	BULKHEAD, FRONT
41	GRILL, OUTLET
42	THERMAL-LIMITER (89 C)
43	SEAL, PLATE COVER
44	CLIP, SPRING
45	MAY 3402841
