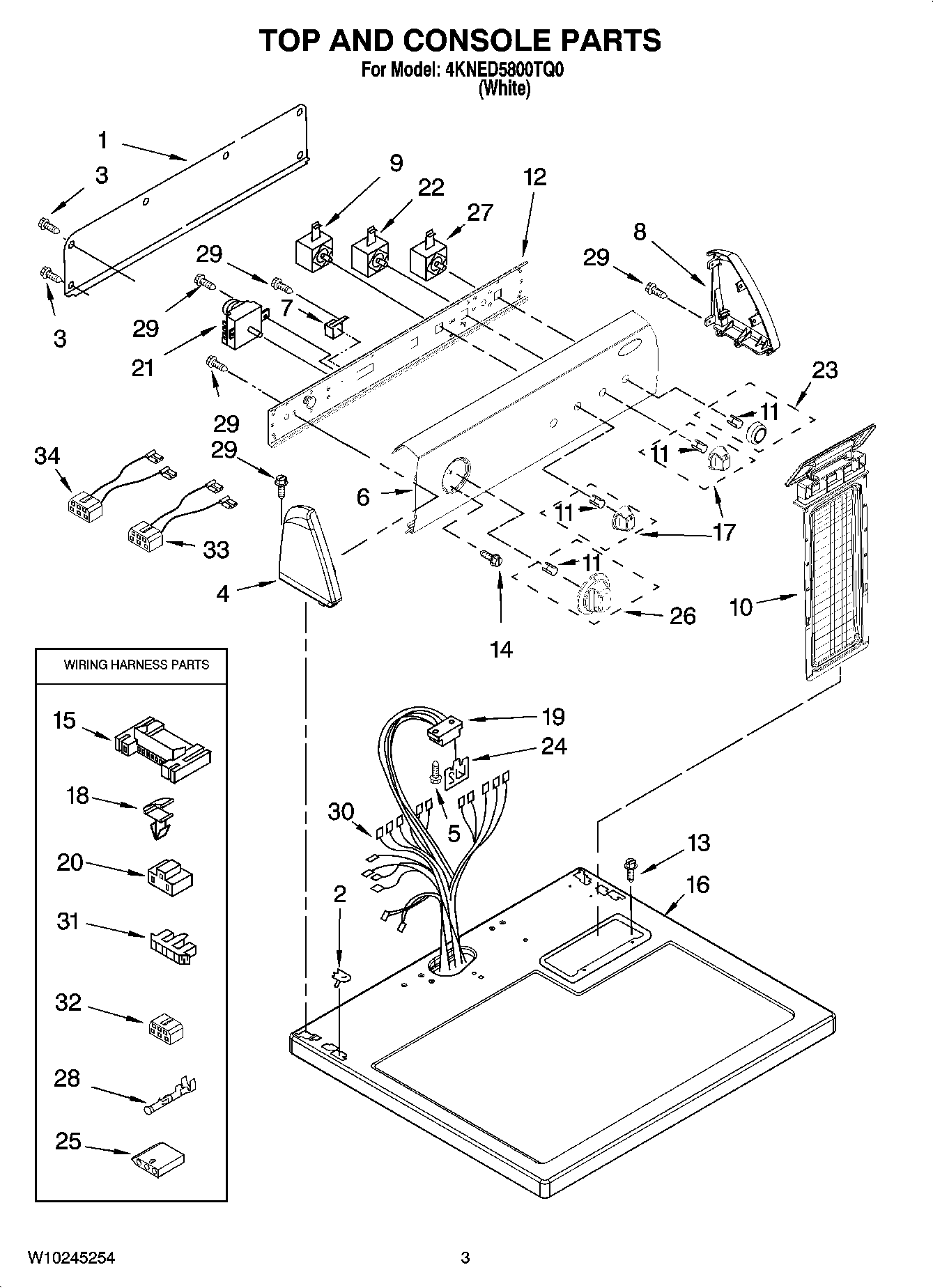

4KNED5800TQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8274261
2	Nut, Push-In
3	Screw
4	MAY 8271365
5	SCREW
6	MAY W10086670
7	MAY 3952439
8	MAY 8271359
9	Switch, Temperature
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 8271418
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8557930
17	Knob, Control (2) (White)
18	CLIP, HARNESS
19	MAY 3391885
20	Connector (PTS) Relay
21	MAY 3979617
22	Switch, Wrinkle Guard
23	Knob, Push-To-Start (White)
24	MAY 8558178
25	MAY 3936144
26	Timer Knob, Assembly (White)
27	MAY W10119074
28	Terminal
29	MAY 8533971
30	MAY W10221862
31	Connector-Timer
32	Connector
33	MAY 3401695
34	Jumper, Three Temperature
