4KNED5800TQ1 02 – TOP AND CONSOLE PARTS
Written by
in

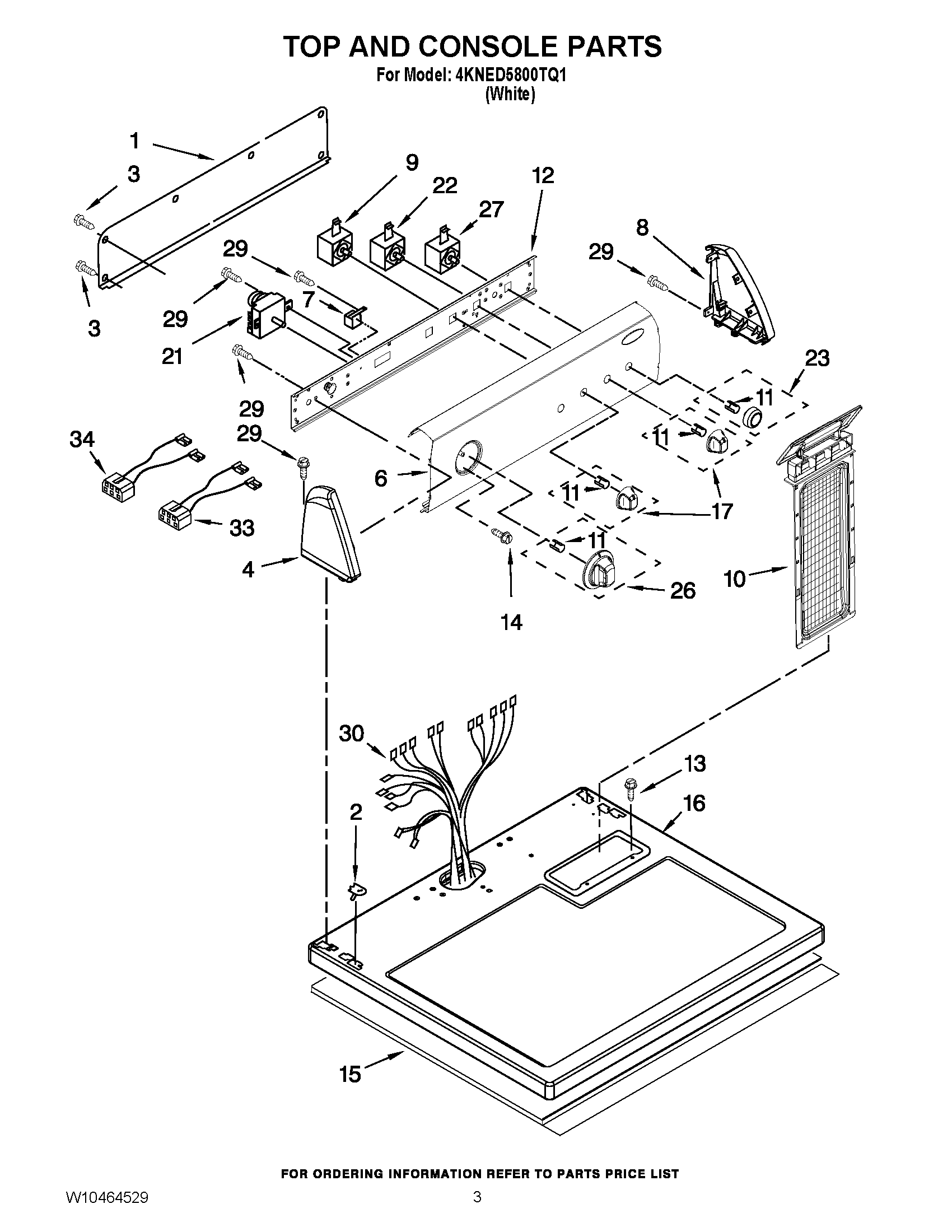

4KNED5800TQ1 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1
MAY 8274261
2
Nut, Push-In
3
Screw
4
MAY 8271365
6
MAY W10086670
7
MAY 3952439
8
MAY 8271359
9
Switch, Temperature
10
Screen, Lint (White)
11
CLIP, SPRING
12
MAY 8271418
13
SCREW
14
MAY 8533951
15
MAY W10123956
16
MAY 8557930
17
Knob, Control (2) (White)
21
MAY 3979617
22
Switch, Wrinkle Guard
23
Knob, Push-To-Start (White)
26
Timer Knob, Assembly (White)
27
MAY W10119074
29
Screw, Console
30
MAY W10386312
32
Connector
33
MAY 3401695
34
Jumper, Three Temperature
←
