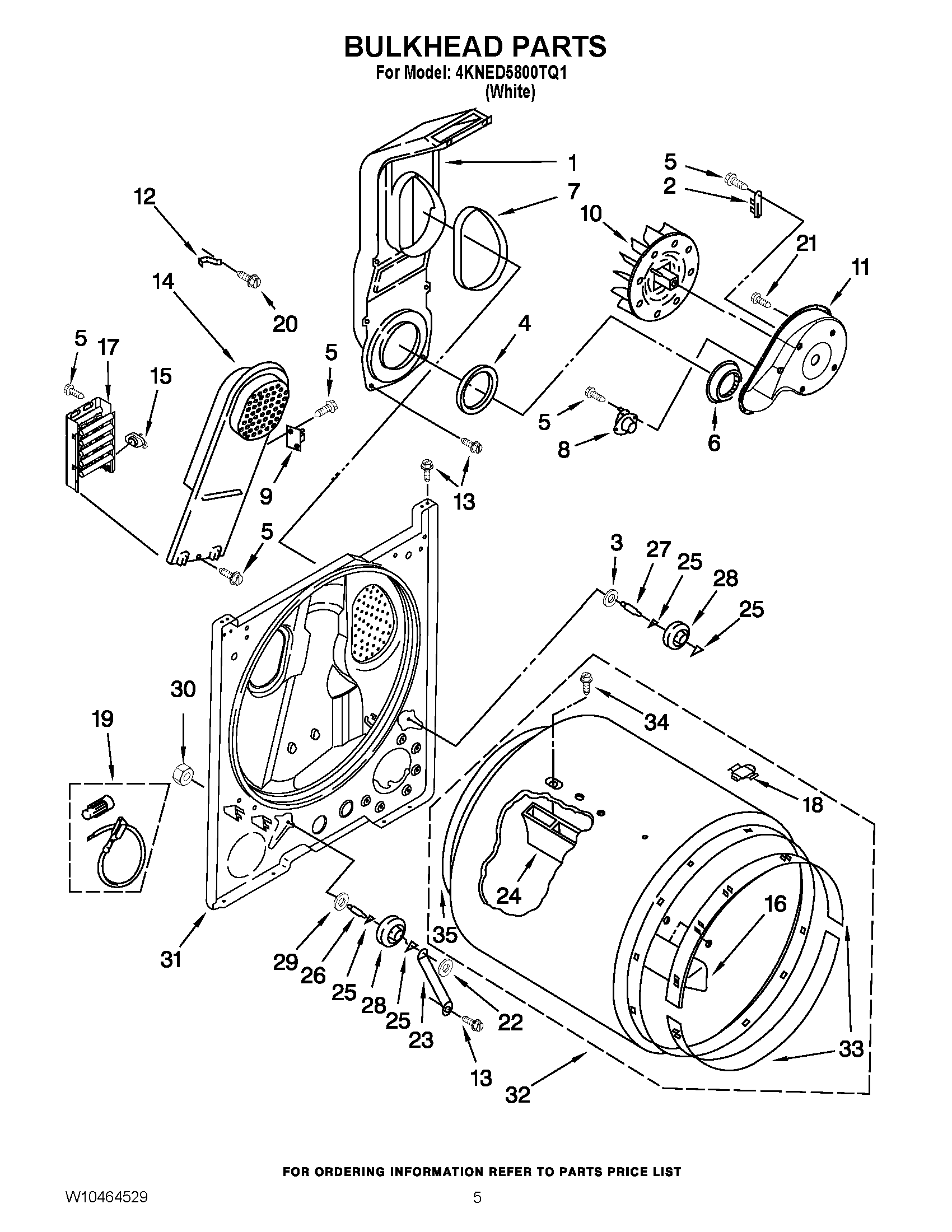

4KNED5800TQ1 03 – BULKHEAD PARTS

Products

PositionProduct
1MAY 348368
2Fuse, Thermal (91 C)
3WASHER
4MAY 347139
5SCREW,8-18 X 3/8
6MAY 696302
7MAY 339956
8THERMOSTAT, INTERNAL BIAS
9MAY 3977393
10Wheel, Blower
11MAY 8577230
12CLIP HEATER BOX
13SCREW
14MAY 8541818
15MAY 3977767
16BAFFLE, DRUM (SHORT)
17MAY 3403585
18Plug, Drum Hole
19BRACKET, DRUM LIGHT ELEMENT, HEATER PLUG, DRUM HOLE
20Screw
21SCREW
22NUT, PUSH ON
23MAY 3976434
24BAFFLE, DRUM (LONG)
25WASHER, TRI RING
26MAY W10359270
27MAY W10359269
28MAY 3397590
29WASHER
30MAY W10298789
31MAY 3403410
32MAY 695587
33Bearing, Ring
34MAY W10219342
35MAY W10352407
