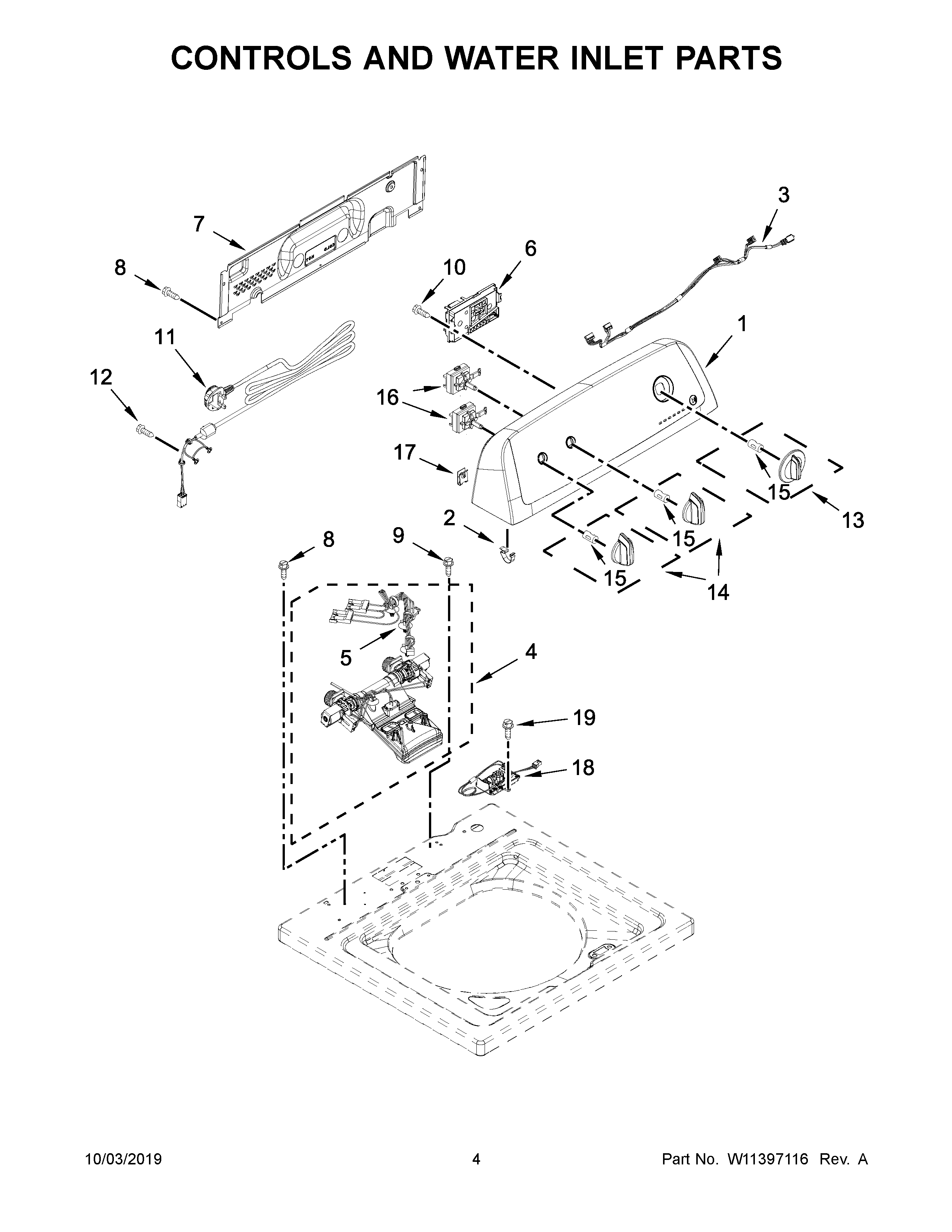

4KNTW3100JW0 03 – CONTROLS AND WATER INLET PARTS

4KNTW3100JW0 03 – CONTROLS AND WATER INLET PARTS

Written by

in

4KNTW3100JW0 03 – CONTROLS AND WATER INLET PARTS

Products

Position	Product
1	PANEL, CONSOLE
2	MAY 8312709
3	MAY W10694679
4	INLET ASSEMBLY, WATER
5	HARNESS, VALVE
6	MAY W11372896
7	MAY W10409320
8	SCREW
9	MAY W10213953
10	Screw, 10-32 x 5/8
11	MAY W11358903
12	SCREW
13	MAY W10711289
14	MAY W10453947
15	CLIP, SPRING
16	MAY W10414397
17	NUT, "U"
18	LINE FILTER ASSY
19	MAY W10567155
