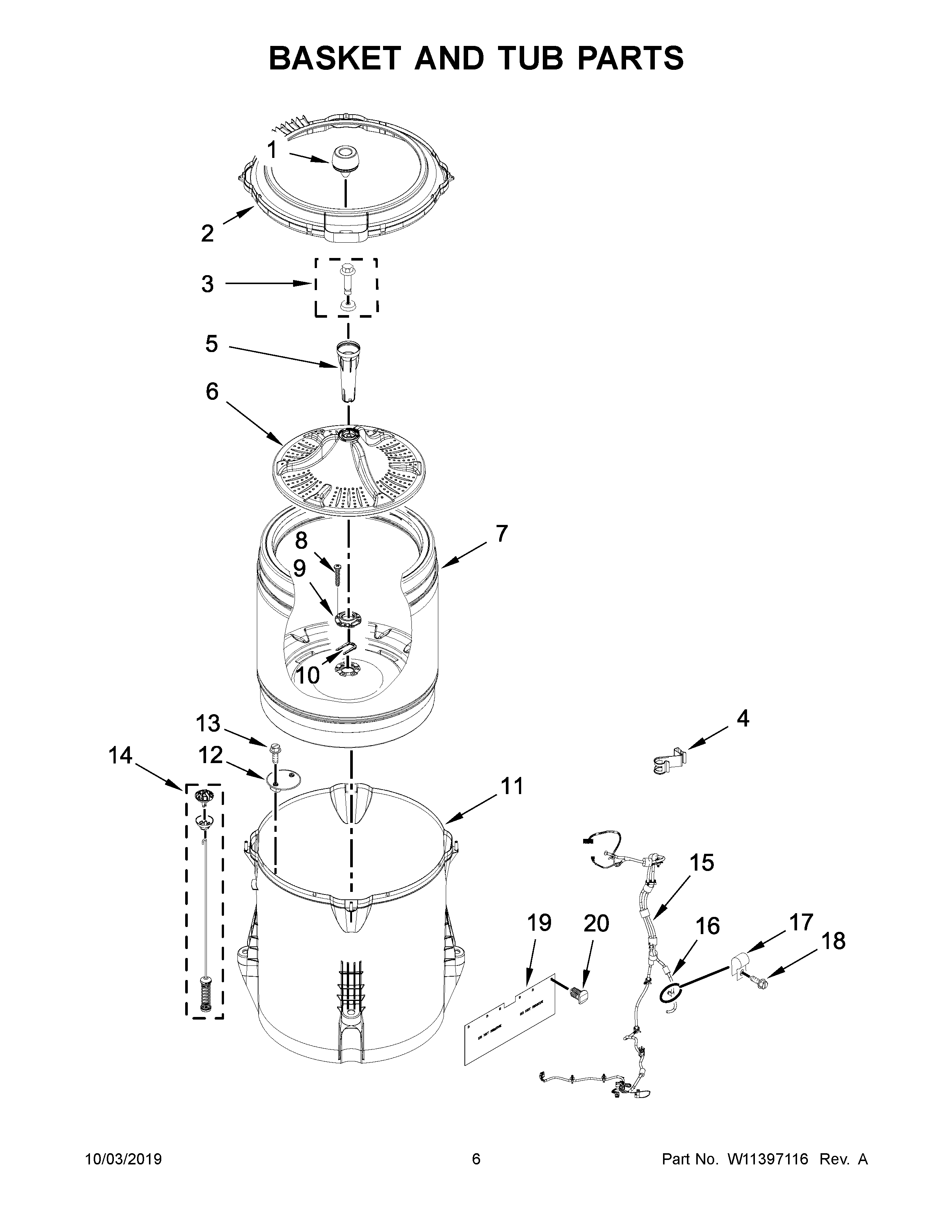

4KNTW3100JW0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	DISPENSER ASSEMBLY
2	TUB RING
3	BOLT AND WASHER
4	MAY W11284522
5	BARREL, AGITATOR
6	IMPELLER (WASHPLATE)
7	BASKET ASSEMBLY
8	SCREW
9	HUB – DRIVEN, BASKET
10	MAY W11284133
11	TUB (INCLUDES TUB SEAL)
12	MAY W10215093
13	Screw
14	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES SUSPENSION BUSHINGS AND USPENSION BALLS)
15	MAY W11370593
16	MAY W10520039
17	CLAMP, CABLE
18	SCREW
19	MAY W10339098
20	MAY W10429200
