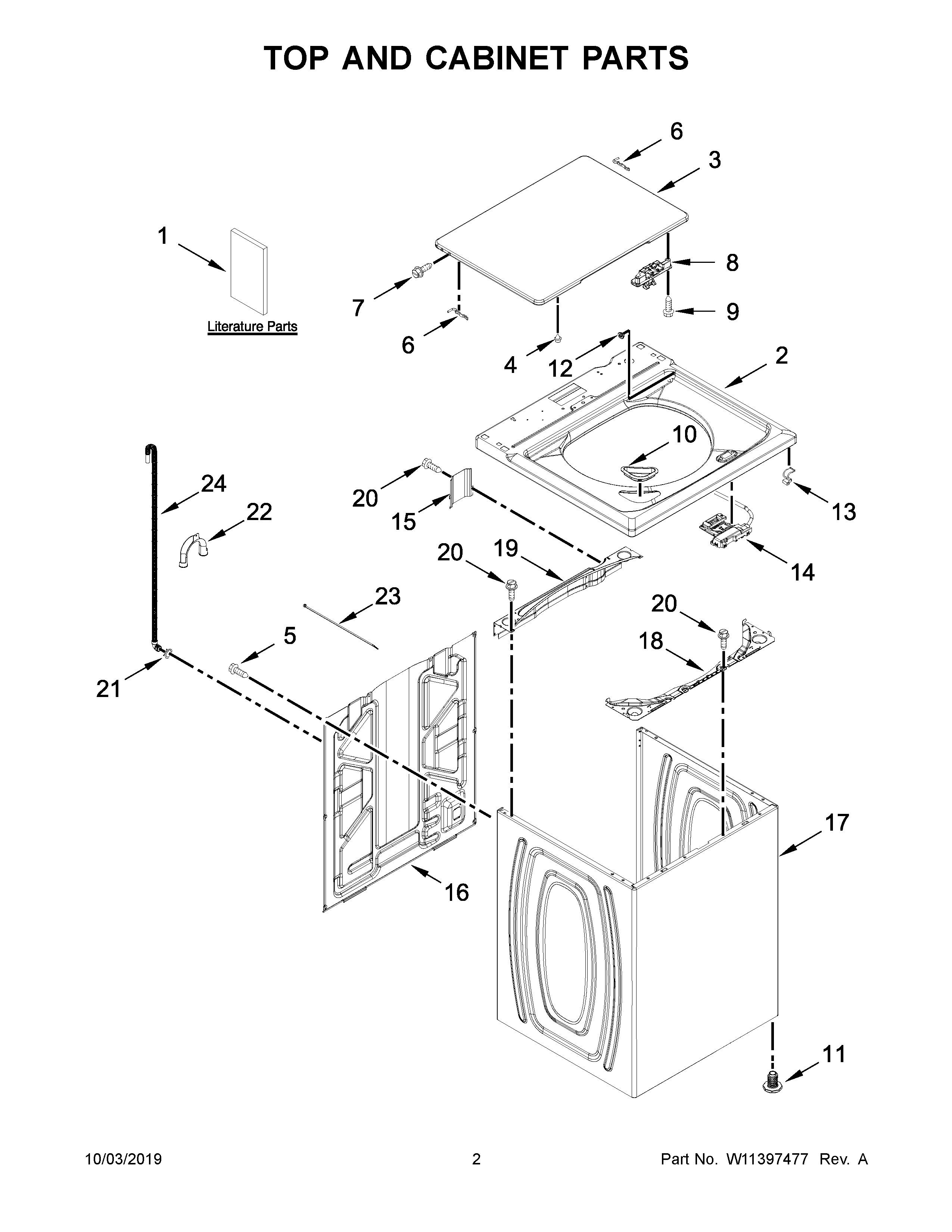

4KNTW3200JW0 02 – TOP AND CABINET PARTS

4KNTW3200JW0 02 – TOP AND CABINET PARTS

Written by

in

4KNTW3200JW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1C	MAY W11398525
1	MAY W11371741
1B	MAY W11372865
1A	MAY W11372860
2	TOP (WHITE)
3	ASSEMBLY, LID (WHITE)
4	MAY 9724509
5	SCREW
6A	HINGE, LID (RIGHT HAND)
6	HINGE, LID
7	Screw And Washer
8	MAY W10714899
9	SCREW
10	MAY W10192089
11	FOOT ASSEMBLY, LEVELING
12	Hinge, Bearing (2)
13	Clip, Wire (4)
14	MAY W11390347
15	MAY W10676061
16	PANEL, REAR
17	MAY W10478060
18	CHANNEL, TOP FRONT (WHITE)
19	BRACE, CABINET TOP – REAR
20	SCREW
21	MAY 356138
22	MAY W10280024
23	TIE, CABLE
24	HOSE, OUTER DRAIN ASSEMBLY
