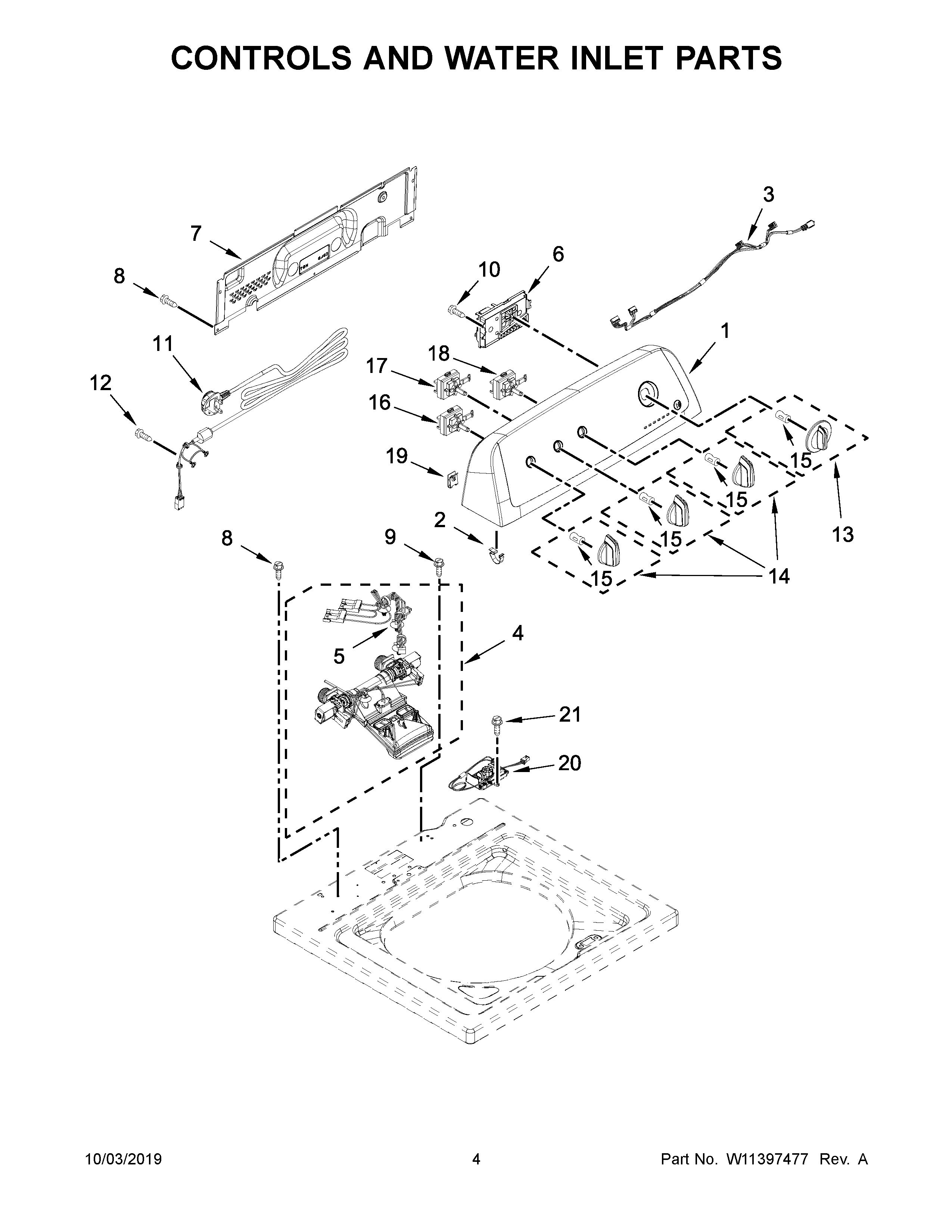

4KNTW3200JW0 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2MAY 8312709
3HARNESS, UPPER
4INLET ASSEMBLY, WATER
5HARNESS, VALVE
6MAY W11372898
7MAY W10409320
8SCREW
9MAY W10213953
10Screw, 10-32 x 5/8
11MAY W11358903
12SCREW
13MAY W10711289
14MAY W10453947
15CLIP, SPRING
16MAY W10414397
17MAY W10414398
18SWITCH, ROTARY ENCODER (2 POSITION)
19NUT, "U"
20LINE FILTER ASSY
21MAY W10567155
