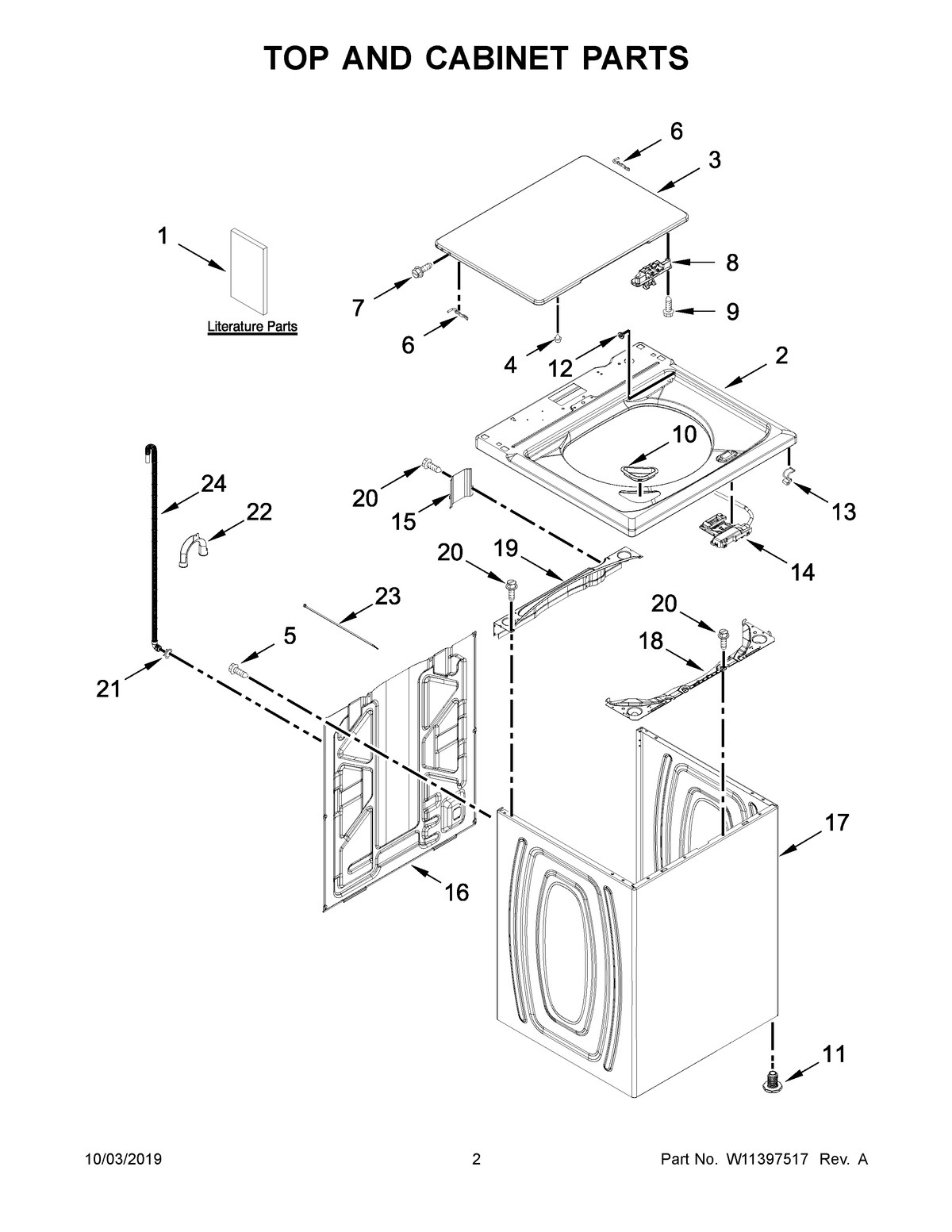

4KNTW3300JW0 02 – TOP AND CABINET PARTSadmin2025-04-26T09:16:41+00:004KNTW3300JW0 02 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| 1C | MAY W11398526 |
| 1 | MAY W11371741 |
| 1B | MAY W11372865 |
| 1A | MAY W11372860 |
| 2 | TOP (WHITE) |
| 3 | ASSEMBLY, LID (WHITE) |
| 4 | MAY 9724509 |
| 5 | SCREW |
| 6A | HINGE, LID (RIGHT HAND) |
| 6 | HINGE, LID |
| 7 | Screw And Washer |
| 8 | MAY W10714899 |
| 9 | SCREW |
| 10 | MAY W10192089 |
| 11 | FOOT ASSEMBLY, LEVELING |
| 12 | Hinge, Bearing (2) |
| 13 | Clip, Wire (4) |
| 14 | MAY W11390347 |
| 15 | MAY W10676061 |
| 16 | PANEL, REAR |
| 17 | MAY W10478060 |
| 18 | CHANNEL, TOP FRONT (WHITE) |
| 19 | BRACE, CABINET TOP - REAR |
| 20 | SCREW |
| 21 | MAY 356138 |
| 22 | MAY W10280024 |
| 23 | TIE, CABLE |
| 24 | HOSE, OUTER DRAIN ASSEMBLY |
