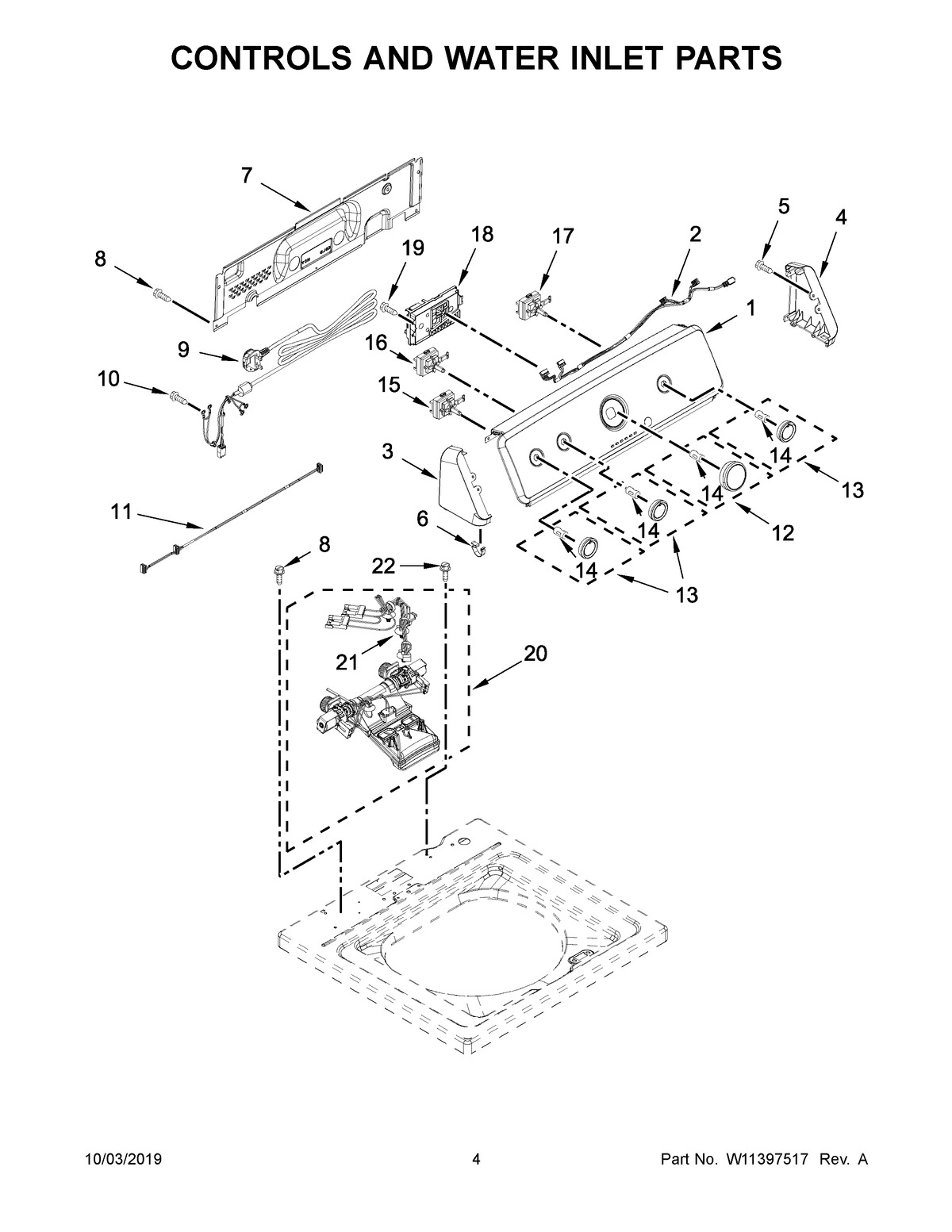

4KNTW3300JW0 03 – CONTROLS AND WATER INLET PARTS
Written by
in
4KNTW3300JW0 03 – CONTROLS AND WATER INLET PARTS
Products
Position
Product
1
MAY W11370832
2
HARNESS, UPPER
3
END CAP (LEFT) (WHITE)
4
END CAP (RIGHT) (WHITE)
5
MAY 359625
6
MAY 8312709
7
MAY W10461159
8
SCREW
9
MAY W11369863
10
Screw, 10-32 x 5/8
11
MAY W10694682
12
MAY W10558463
13
MAY W10562155
14
Spring, Clip Knob
15
SWITCH, ROTARY ENCODER
16
SWITCH, ROTARY ENCODER
17
MAY W10285511
18
MAY W11372900
19
SCREW,8-18 X 3/8
20
INLET ASSEMBLY, WATER
21
HARNESS, VALVE
22
MAY W10213953
←
