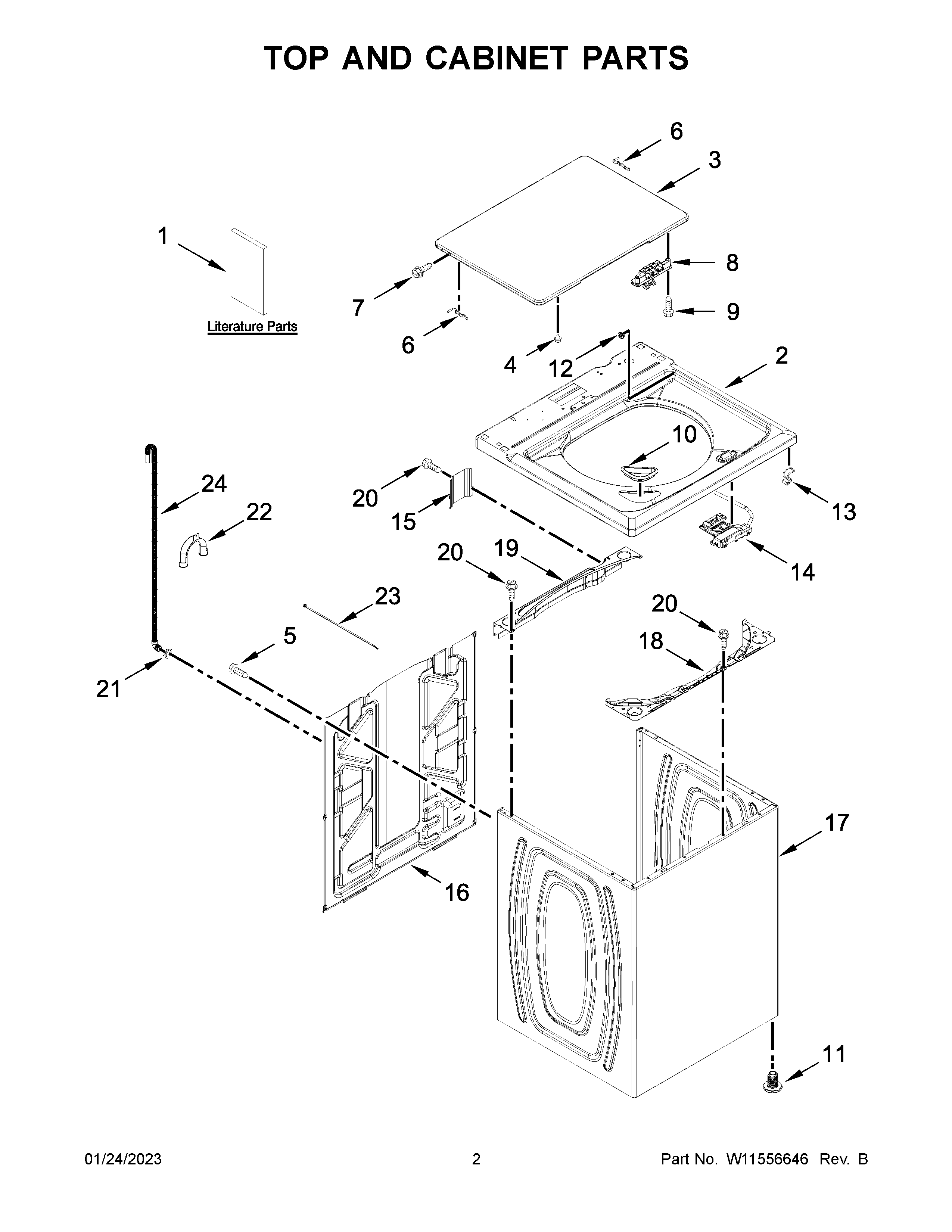

4KNTW3300JW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1	OWNERS MANUAL
1A	INSTRUCTIONS, INSTALLATION
1B	QUICK START GUIDE
1C	ENERGY GUIDE
2	W11210992 Whirlpool Top
3	W10860912 Whirlpool Lid
4	WP9724509 Whirlpool Bumper
5	WP9740848 Whirlpool Dishwasher Screw
6A	WP54583 Whirlpool Hinge
6	WP91770 Whirlpool Hinge
7	SCREW
8	W10837741 Whirlpool Washer Lid Strike
9	WPW10273971 Whirlpool Screw
10	WPW10192089 Whirlpool Washer Bleach Dispenser
11	W11213957 Whirlpool Dishwasher Leveling Leg
12	WP21258 Whirlpool Washer Lid Hinge Bearing
13	WP90016 Whirlpool Clip
14	LATCH, LID LOCK ASSEMBLY
15	W10676061 Whirlpool Cover Assembly
16	W11486091 Whirlpool Rear Panel
17	W10596395 Whirlpool Cabinet
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	W11685943 Whirlpool Screw
21	WP356138 Whirlpool Hose Clamp
22	WPW10280024 Whirlpool Retainer
23	WPW10339879 Whirlpool Wire Tie
24	W11244231 Whirlpool Hose
