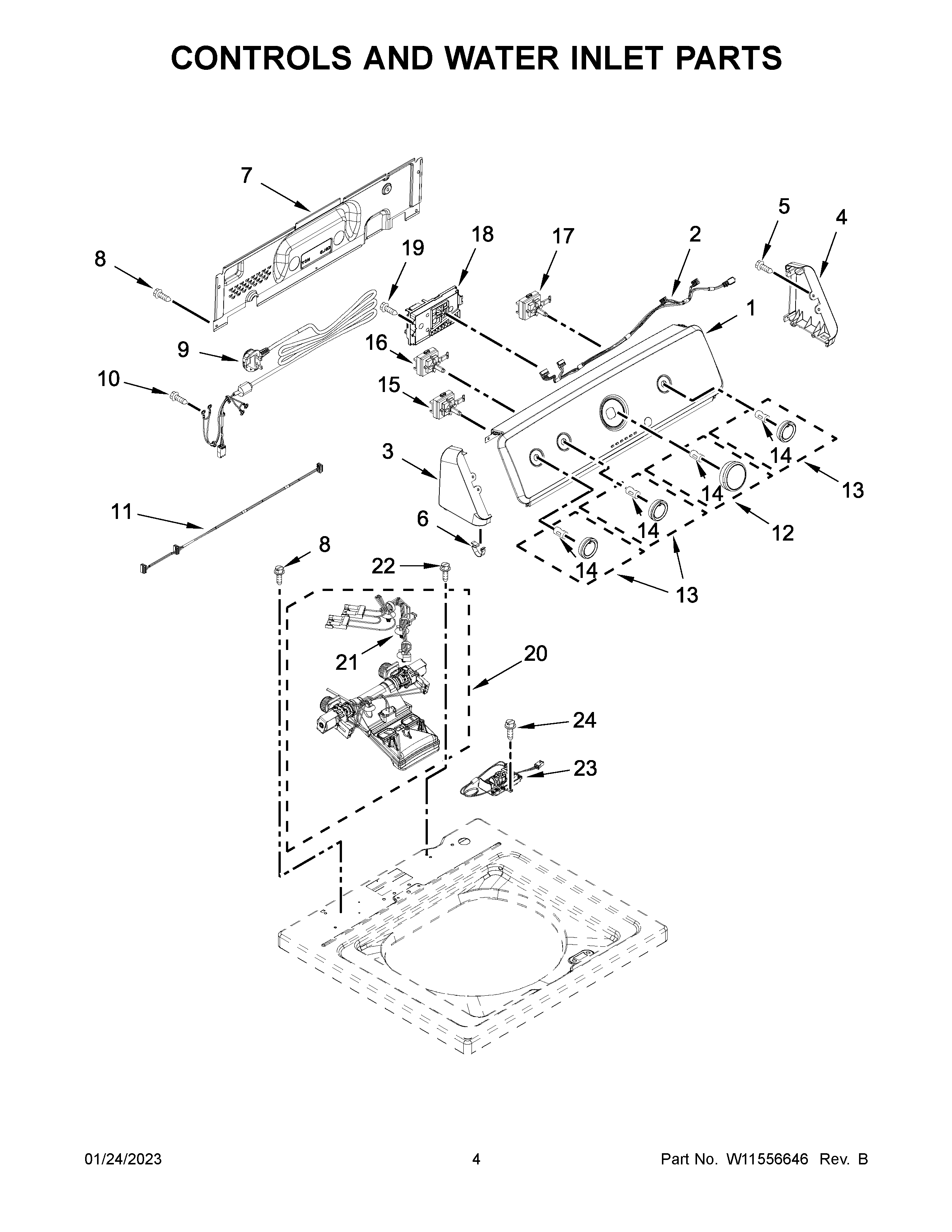

4KNTW3300JW1 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2W10694685 Whirlpool Wire Harness
3END CAP (LEFT) (WHITE)
4END CAP (RIGHT) (WHITE)
5W11693756 Whirlpool Screw Assembly
6WP8312709 Whirlpool Endcap Clip
7WPW10461159 Whirlpool Rear Panel
8W11685943 Whirlpool Screw
9CORD, POWER
10W10846509 Whirlpool Screw
11W10694682 Whirlpool Wire Harness
12WPW10558463 Whirlpool Knob Assembly
13WPW10562155 Whirlpool Knob
14WP688805 Whirlpool Spring Clip
15WPW10285517 Whirlpool Cycle Switch
16WPW10285512 Whirlpool Cycle Switch
17WPW10285511 Whirlpool Cycle Switch
18W11401125 Whirlpool Electronic Control Board + Core
19WP90767 Whirlpool Screw
20W11038628 Whirlpool Valve Assembly
21HARNESS, VALVE
22WPW10213953 Whirlpool Screw
23W11660637 Whirlpool Filter
24W11568617 Whirlpool Screw
