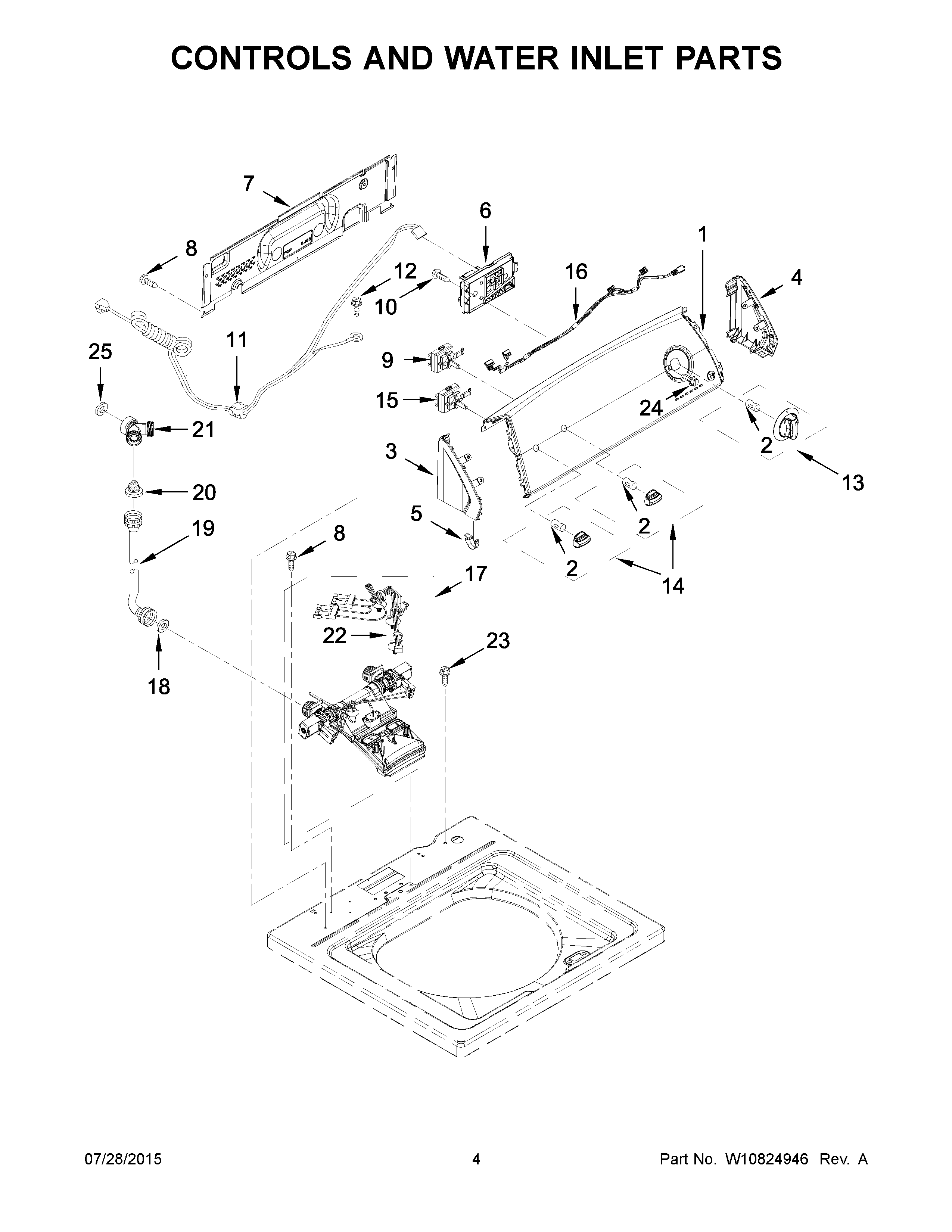

4KNTW4430EQ0 03 – CONTROLS AND WATER INLET PARTS

Written by

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	10A CORD LOCK
NI	10A CORD ADAPTER (TYPE B)
NI	10A CORD ADAPTER (BRITISH)
NI	10A CORD ADAPTER (EUROPEAN)
1	MAY W10736641
2	CLIP, SPRING
3	MAY W10251358
4	MAY W10251355
5	MAY 8312709
6	MAY W10758699
7	MAY W10461159
8	MAY 1157158
9	MAY W10285511
10	SCREW,8-18 X 3/8
11	MAY W10422755
12	Screw, 10-32 x 5/8
13	KNOB ASSEMBLY, TIMER
14	KNOB ASSEMBLY, CONTROL
15	SWITCH, ROTARY ENCODER
16	MAY W10537670
17	MAY W10683676
18	ACCESSORY PARTS, WASHER, HOSE
19	MAY W10194210
19A	MAY W10194211
20	WASHER, FILTER
21	MISCELLANEOUS PARTS BAG, CONNECTOR, HOSE -“Y“
22	MAY W10684972
23	Screw
24	SCREW
25	MISCELLANEOUS PARTS BAG, WASHER, HOSE ADAPTER
